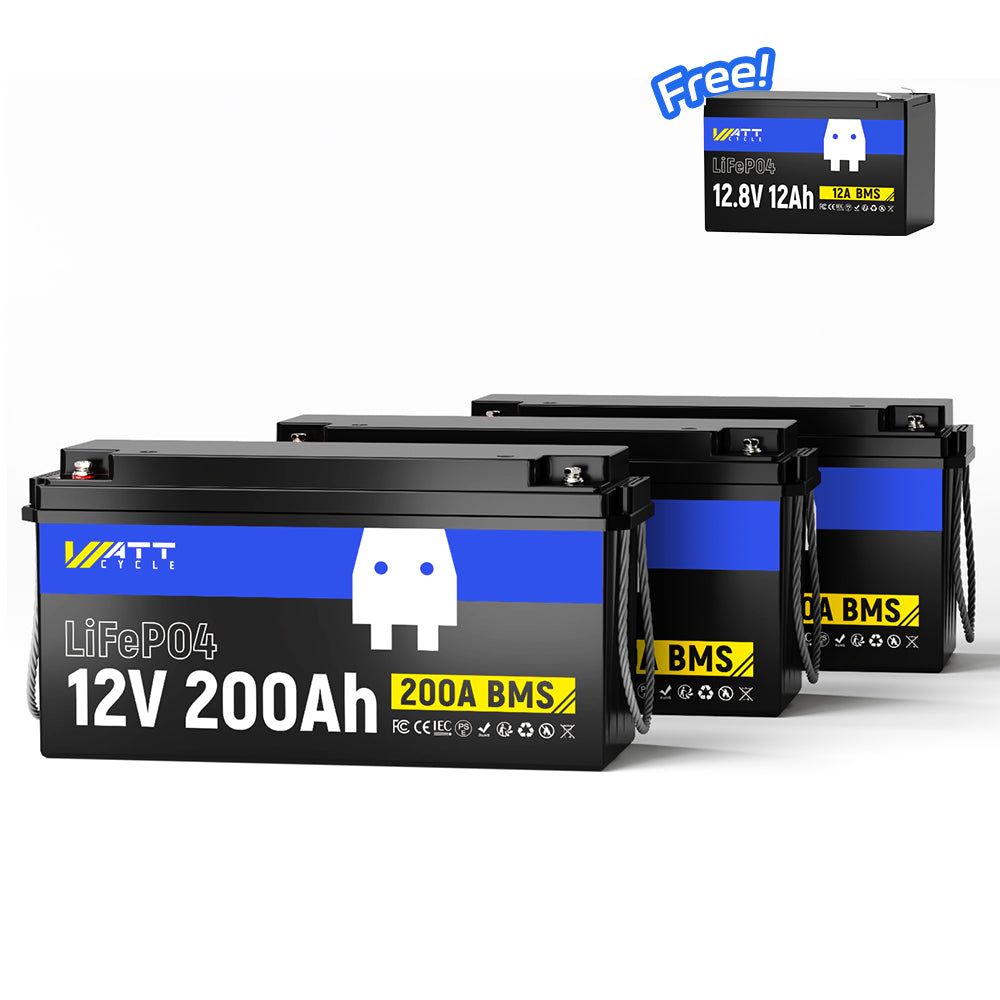

【Free 12V 12Ah】36V 200Ah LiFePO4 Battery | 7680Wh+153Wh
Regular price
$1,763.97 CAD
$2,399.97
Save
$636.00
(26% off)
Availability: In Stock
⚡Compact: 19.0 x 6.6x 9.4 Inches | 45.20 lbs
⚡Safe: Low-temperature cut-off protection
⚡Premium: EV grade A+ LiFePO4 cells
⚡Durable: 5,000-15,000 deep discharge cycles
⚡Reliable: Built-in 200A BMS | 2560W | 2560Wh
⚡Scalable: Expandable max 4S4P, up to 40.96kWh
⚡Certification: MSDS/UN38.3/FCC/CE/ROHS/UL
People looking for this product
You have got FREE SHIPPING
Expected Delivery on - .
Free Shipping & Return
Money back guarantee
Fast & reliable support
Secure payment
10
【Free 12V 12Ah】36V 200Ah LiFePO4 Battery | 7680Wh+153Wh
Frequently Bought Together
WattCycle Deep Cycle Battery: Grade A+ Power
- Brand New EV Grade A+ Cells
- Superior Quality and Reliability
- Longer Lifespan
- High Energy Density
- Safety and Stability
- Consistent Performance
- High Performance in Extreme Conditions
- Environmental Friendliness
WattCycle Lithium Battery Safety: Premium BMS Protection
- Max. Cont. Discharge Current: 200A
- Max. Cont. Charge Current: 200A
- Max. Discharge Current (5s)：300±50A
Connect in Series or Parallel
You can wire lifepo4 battery 12V 200AH Core Series Batteries in series to build a 24V, 36V, or even 48V system in your RV.
LiFePO4 Lithium Battery One-Stop Solution
Features
Tech Specs
Tech Specs
GENERAL
| Dimensions (Inches) | 19.0 (L) x 6.6 (W) x 9.4 (H) |
| Weight | 45.20lbs / 20.5kg |
| Waterproof Rating | IP65 |
| Warranty | 7 years |
| Housing Material | ABS (Flame Retardant Plastic) |
| Terminal | M8 bolts |
BATTERY
| Cell | EV Grade A+ LiFePO4 Cells |
| Nominal Voltage | 12.8V |
| Nominal/Usable Capability | 200Ah |
| Energy | 2560Wh |
| Cycle Life | 5,000 cycles @100% DOD, 6,000 cycles @80% DOD, 15,000 cycles @40% DOD |
| Max Depth of Discharge (DOD) | 100% |
| Max. Expansion | 4S4P |
| Certifications | SDS/UN38.3/FCC/CE/ROHS/UL |
| Internal Resistance | ≤40mΩ |
BMS
| BMS | 200A |
| Max. Continuous Output Power | 2560W |
| Max. Continuous Charge Current | 200A |
| Max. Continuous Discharge Current | 200A |
| Max. Discharge Current | 300±50A (≤5s) |
CHARGE
| Charge Voltage | 14.6V ± 0.2V |
| Charge Method | CC/CV |
| Recommend Charge Current | 40A (0.2C) |
| Charge Temperature | 0℃ to 50℃ / 32℉ to 131℉ |
| Discharge Temperature： | -20℃ to 55℃ / -4℉ to 131℉ |
| Storage Temperature | 0℃ to 55℃ / 32℉ to 131℉ |
| Low-Temperature Protection | Yes (32℉/0℃) |
| Low-Temperature Charging Protection Auto Recovery | Yes (41℉/5℃) |
