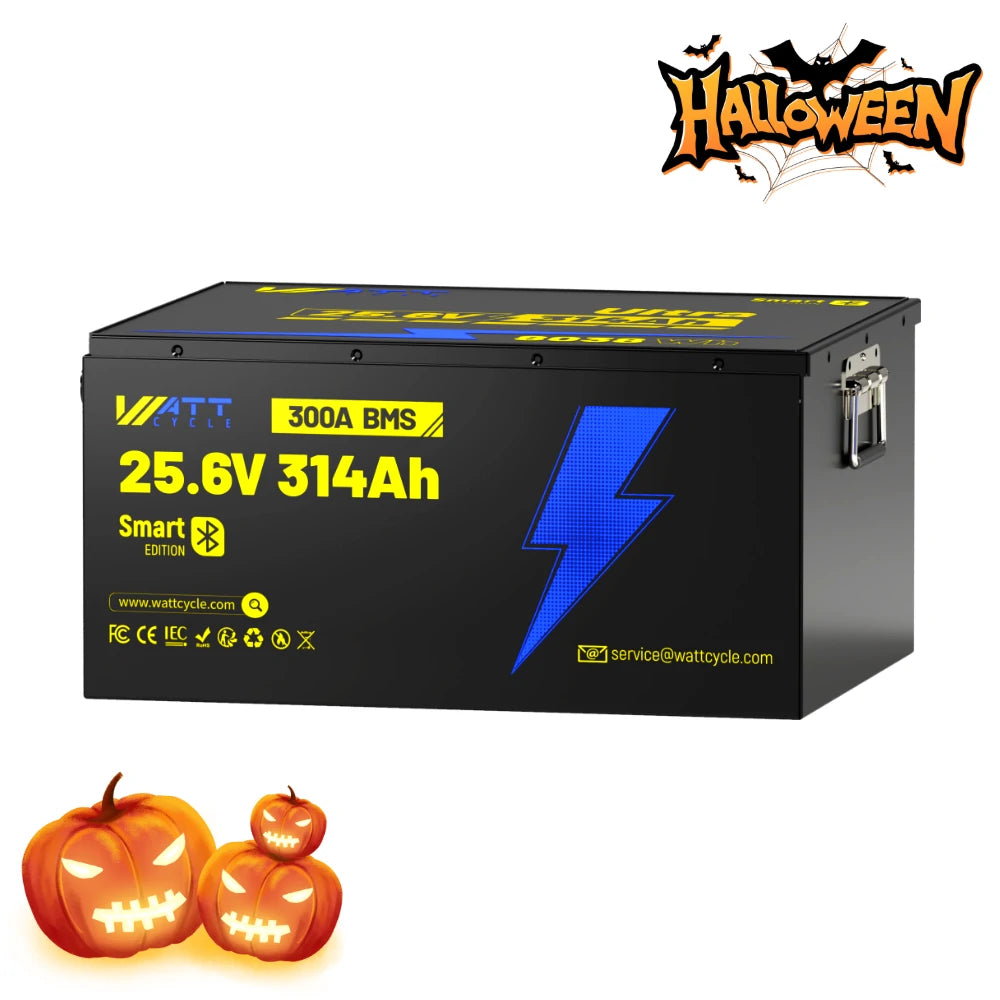

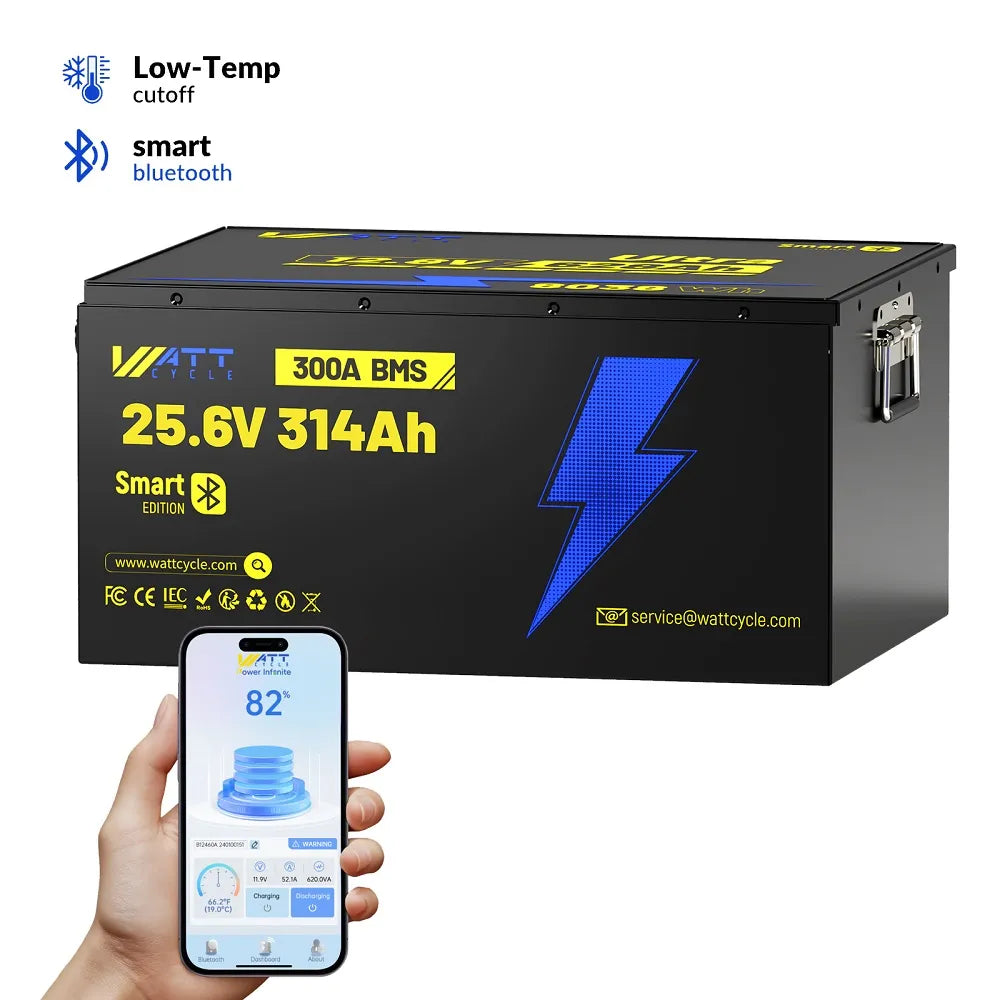

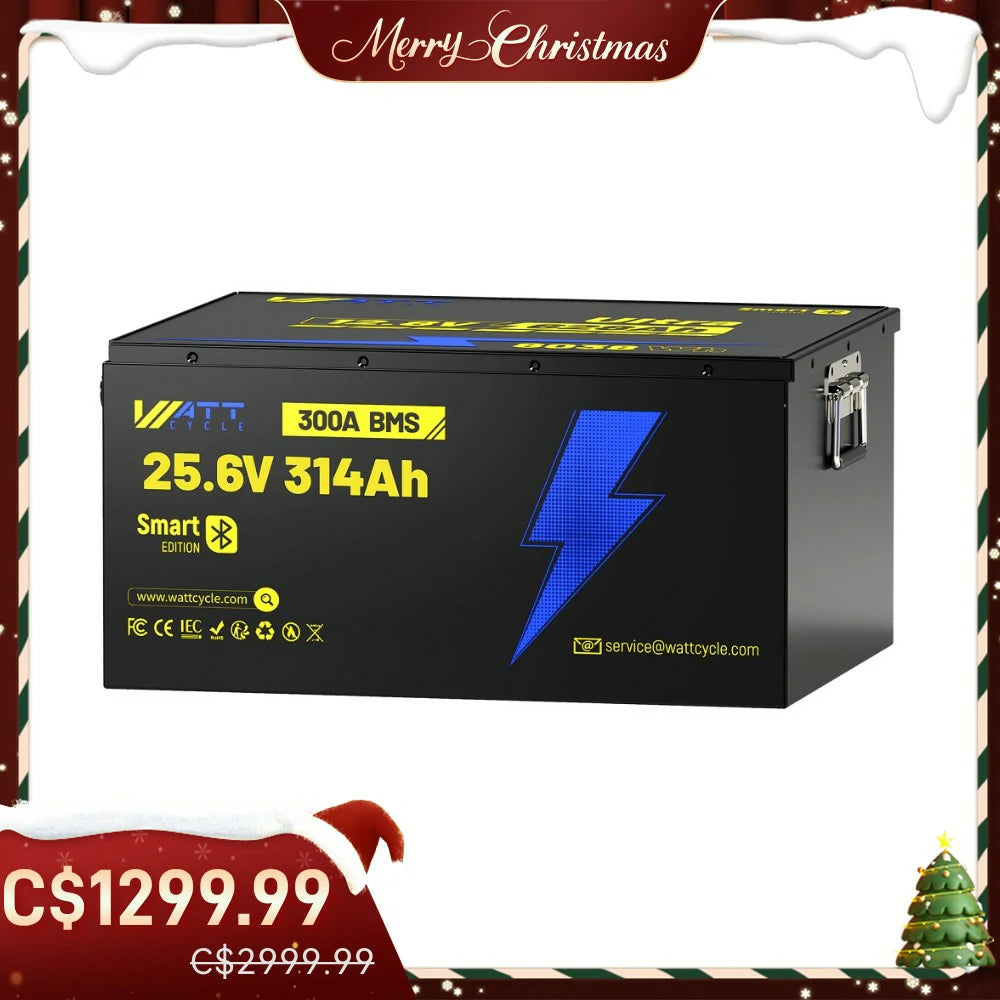

【🔥Final 1 Unit】24V 314Ah Bluetooth LiFePO4 Battery | 300A BMS | 8038Wh
Expected Delivery on - .
IEC/CE-EMC/CE-ROHS/CE-Battery/FCC-SDOC/UD38.3/MSDS
⚡Compact Design: 18.9 x 14.25 x 9.53 in | 153.99 lbs

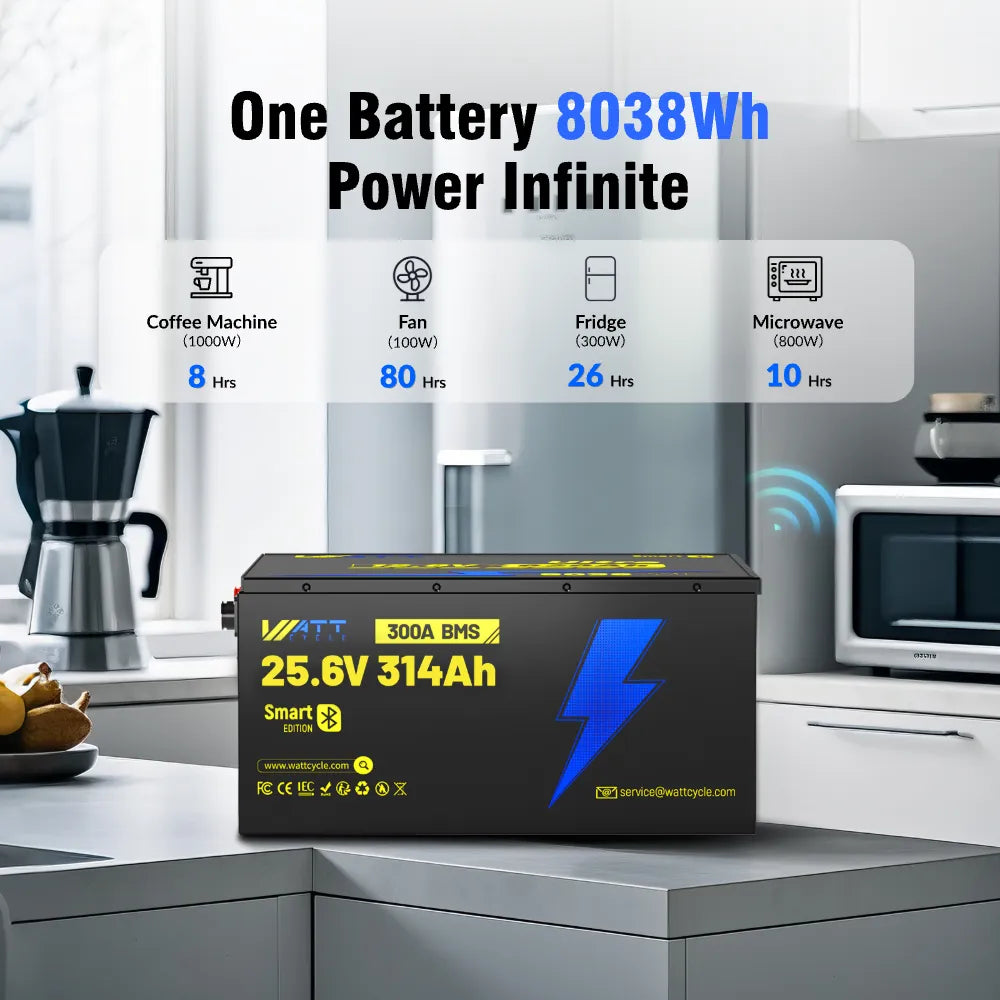

⚡Massive Capacity: 314Ah (25.6V) | ~8kWh energy storage in a single unit.
⚡Equivalent to 2-series 12V 314Ah MINI BT
⚡3X weight energy density of lead-acid batteries making it suitable for scenarios that require lightweighting (such as RVs and ships).
⚡Ultra-Long Cycle Life: 6,000+ cycles at 80% depth of discharge (DoD)—outperforming standard LiFePO4 batteries.
⚡High Power Output: Continuous 300A discharge (7,680W) for heavy-duty inverters and equipment.
⚡Smart Bluetooth Monitoring: Track real-time voltage, state of charge (SoC), temperature, and health via WattCycle app.
⚡Robust 300A BMS with 8X Protections: Over-current, short-circuit, and thermal safeguards.

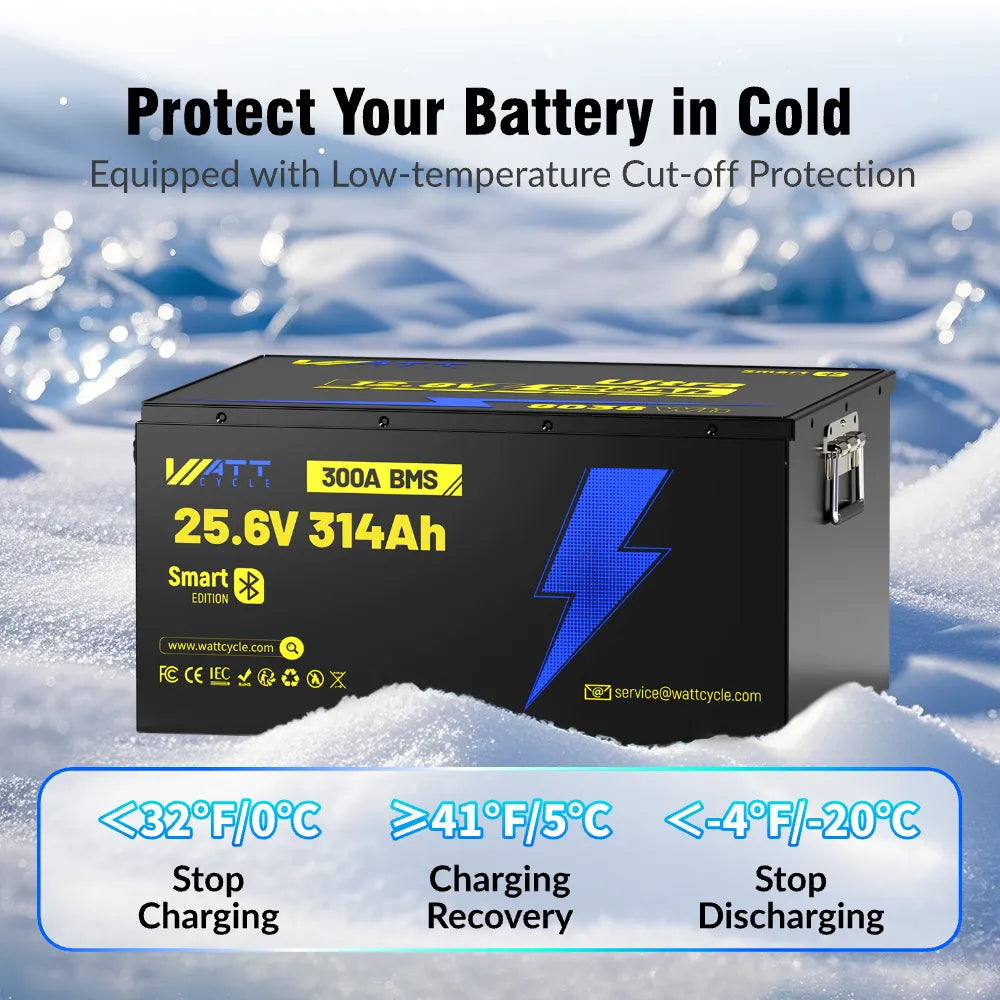

⚡Low/high-temperature cutoffs (charge: -5°C/23°F to 60°C/140°F; discharge: -25°C/-13°F to 75°C/167°F).

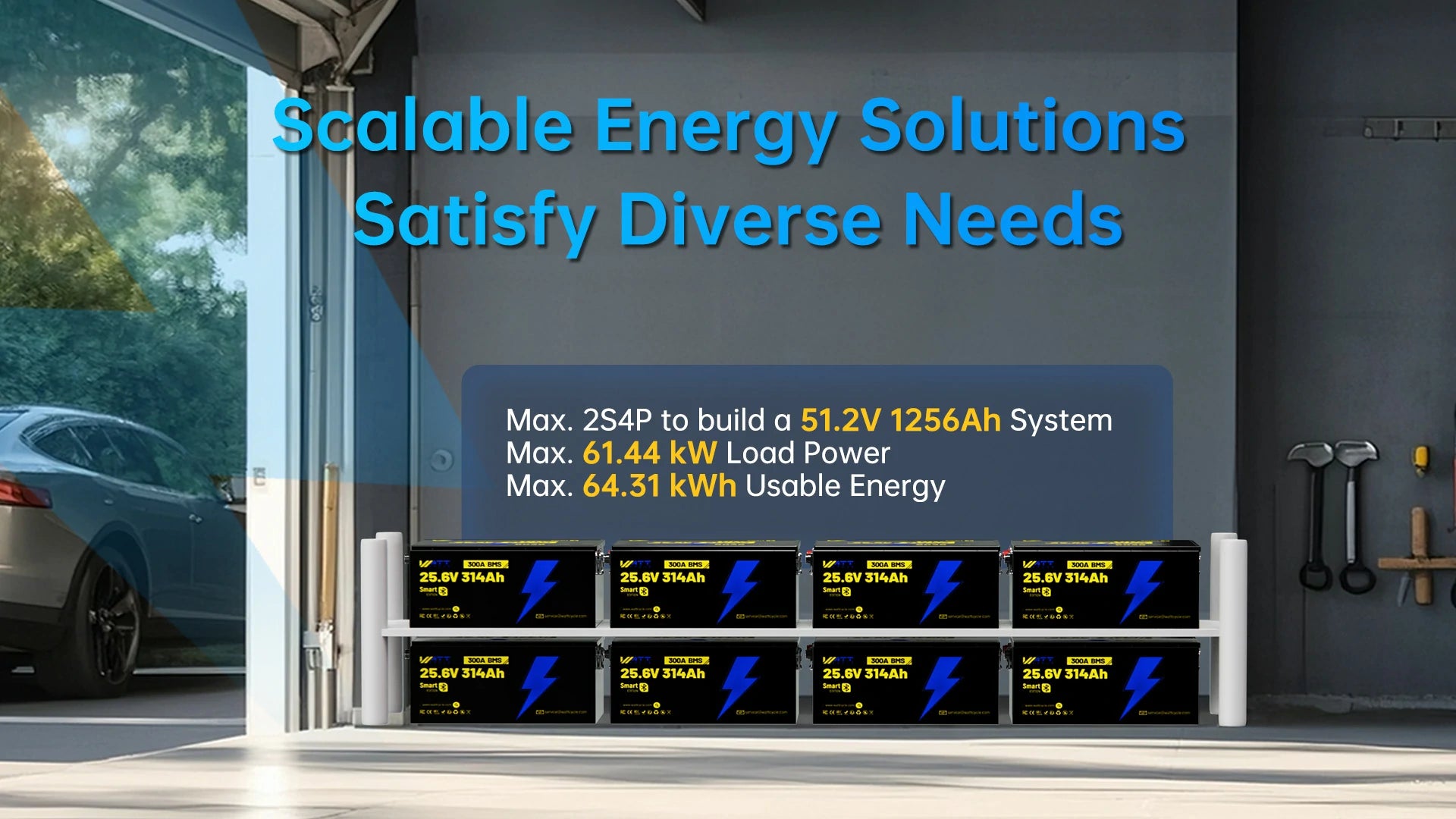

⚡Scalable Design: Supports up to 2-series (51.2V) or 4-parallel (1,256Ah) configurations with 64.31kWh Max. usable energy.
Free Shipping & Return
Money back guarantee
Fast & reliable support
Secure payment
【🔥Final 1 Unit】24V 314Ah Bluetooth LiFePO4 Battery | 300A BMS | 8038Wh
Frequently Bought Together
Features
Massive Capacity & Long Cycle Life:
- Experience exceptional power with our 24V 314Ah LiFePO4 battery, delivering a substantial 8.03 kWh of usable energy (8038Wh).
- Engineered for longevity, it boasts an impressive cycle life of over 5,,000 cycles at 1000% Depth of Discharge (DOD), providing reliable power for years to come.
Smart Bluetooth Monitoring (BMS):
- Take full control and monitor your battery's vital statistics effortlessly via the dedicated smartphone app.
- Track State of Charge (SOC), voltage, current, temperature, and more in real-time.
- Receive timely alerts and warnings directly to your phone for enhanced safety and proactive management.
Advanced Safety & Protection:
- Built with premium automotive-grade LiFePO4 cells for superior safety, stability, and performance.
- Integrated high-quality Battery Management System (BMS) provides comprehensive protection against:
- Over-charge / Over-discharge
- Over-current / Short circuit
- High temperature / Low temperature
- Robust construction ensures safety and durability under various conditions.
Plug-and-Play Installation:

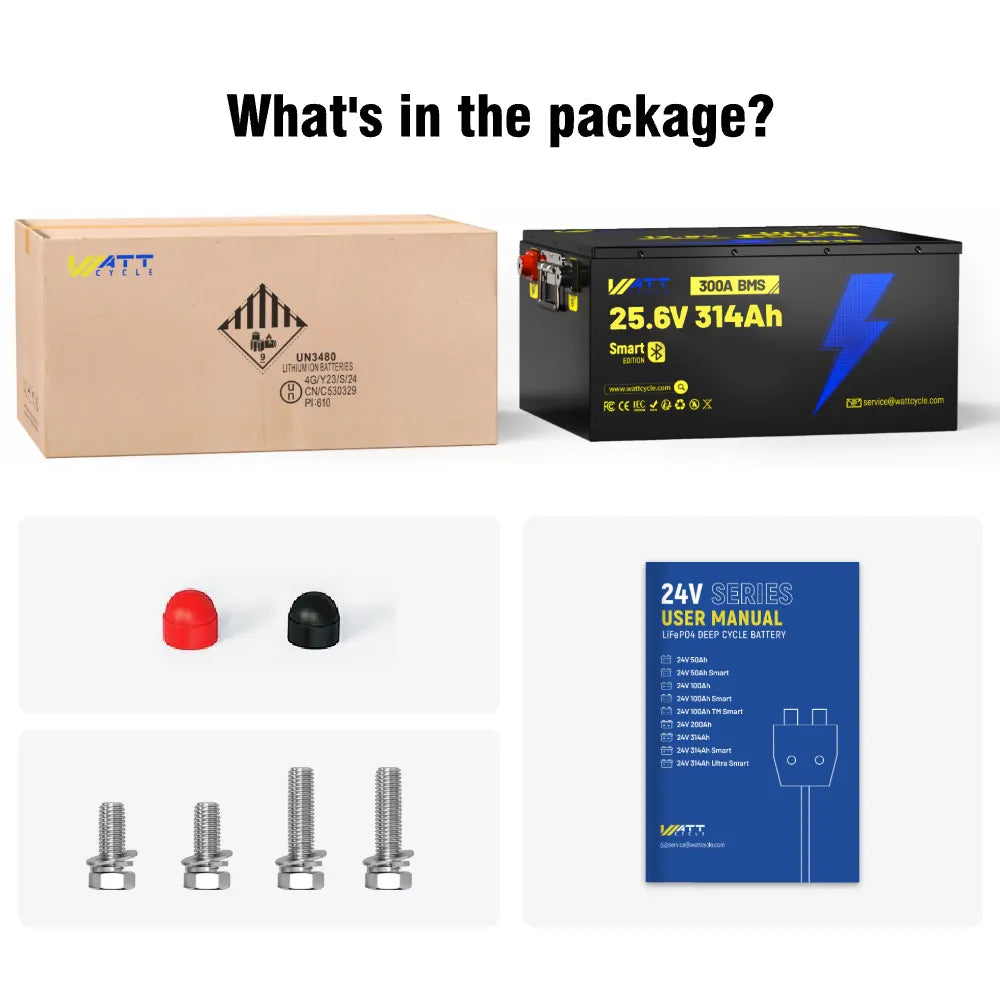

- Features standard M8 bolt terminals for easy, secure, and reliable connections to your system.
- Designed for straightforward integration into solar energy storage systems, RVs, boats, off-grid applications, and more.
Ideal Applications:
Solar Energy Storage Systems, Off-Grid Power, RVs, Campers, Marine (Boats/Yachts), Golf Carts, Floor Scrubbers, Home Backup Power, and various other deep cycle needs.
Why Choose Wattcycle?
- High-Quality LiFePO4 Cells
- Advanced Safety with Smart BMS
- Real-Time Bluetooth Monitoring
- Long Cycle Life & Deep Discharge Capability
- Easy Installation & Maintenance-Free
- Reliable Performance & 5-Year Warranty
Tech Specs

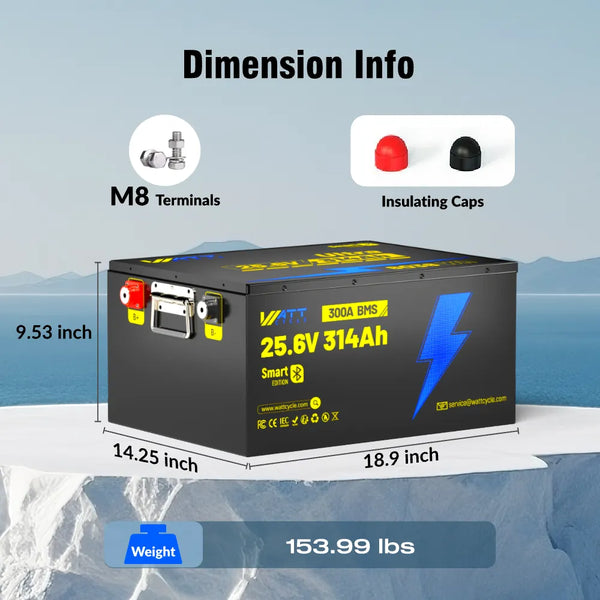

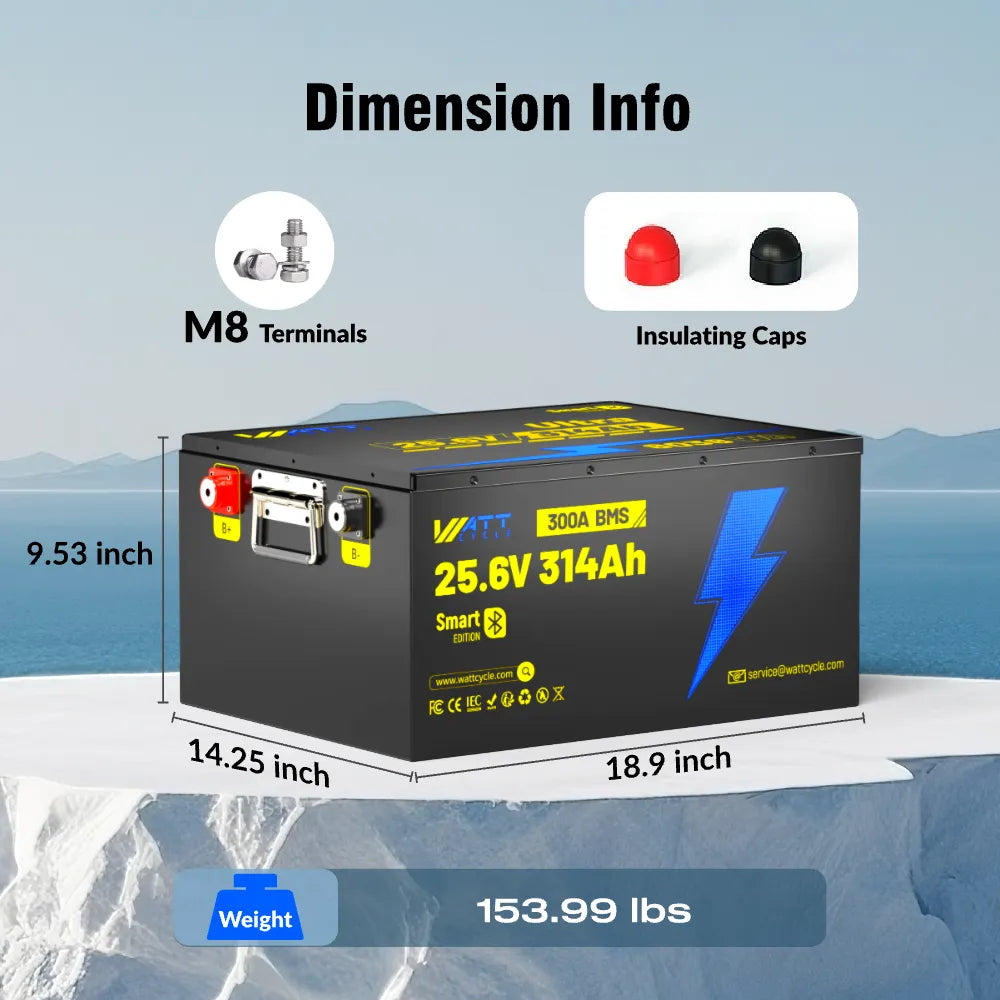

| Dimensions | 18.9 x 14.25 x 9.53 inch | 480 x 362 x 242 mm |
| Weight | 153.99 lbs | 69.85 kg |
| Standard/Maximum Continuous Charging | 62.8A/300A |
| Maximum Continuous Discharging | 300A |
| Over-current Discharge Protection | 310A±10A |
| Over-current Charge Protection | 310A±10A |
| Short-Circuir Current Protection | Support |
| Release Condition | Cut Load |
| Charging High Temperature Protection | 140°F~158°F / 60°C~70°C |
| Discharge High Temperature Protection | 149°F~167°F / 65°C~75°C |
| High Temperature Protection Release Condition | Drop by 41°F~59°F / 5°C~15°C |
| Charging Low Temperature Protection | 23°F~41°F / -5°C~5°C |
| Discharge Low Temperature Protection | -13°F~5°F / -25°C~-15°C |
| Low Temperature Protection Release Condition | Rise by 41°F~59°F / 5°C~15°C |
| Rated Voltage | 25.6V |
| Standard Charging Voltage | 29.2V±0.2V |
| Shipping Charging Voltage | 25.6V~29.2V |
| Shipping Capacity | 50% |
| Cycle Life | 6000@80%DOD |
| Self Discharge Rate | <3%/Month |
| Series & Parallel Connections | 4 Parrallel(Max) 2 Series(Max) |
| Communications | Support |
| Case Material | ABS+PC/UL94 V-0 |
| Storage Temperature | 32°F~140°F/0°C~60°C |
| Terminal Bolt Size | M8 |
Youtube Review
Reviews
User Manual
Powerful Capacity in a Compact Package

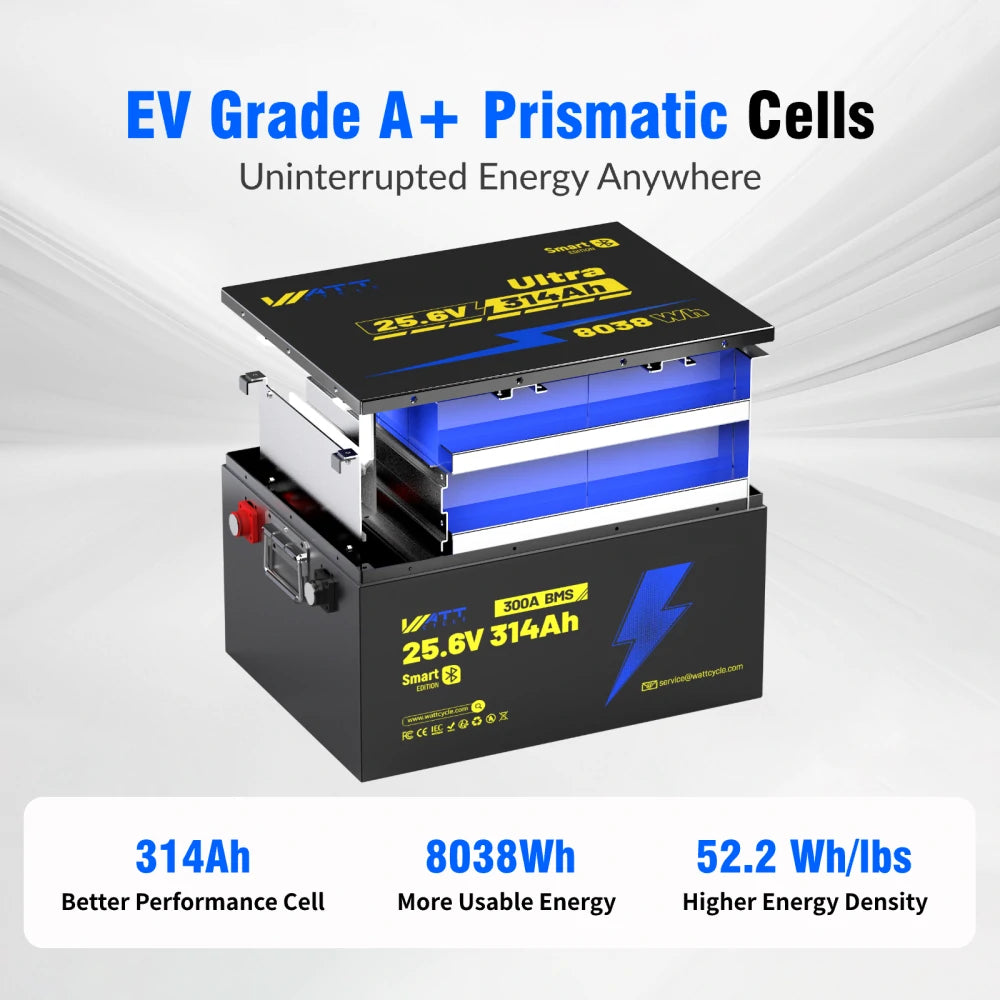

Premium Cell Chemistry with Smart Protections

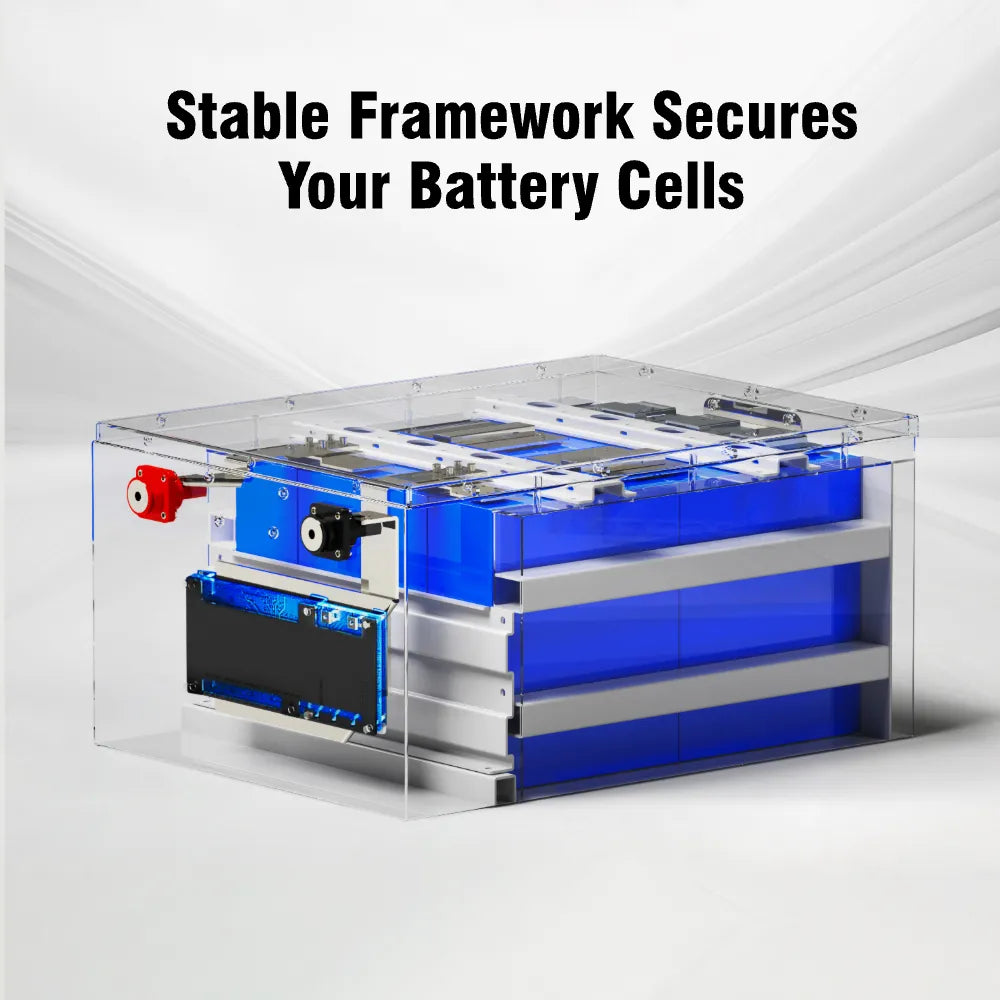

Built with External Iron Shell and Internal Metal Frame
Constructed with a high-strength external iron shell and a reinforced internal metal frame. This robust structure provides exceptional protection against impacts, vibrations, and harsh environments, ensuring long-term reliability
The rigid internal metal frame and sturdy external shell allow for secure and stable stacking, making it ideal for modular power systems.

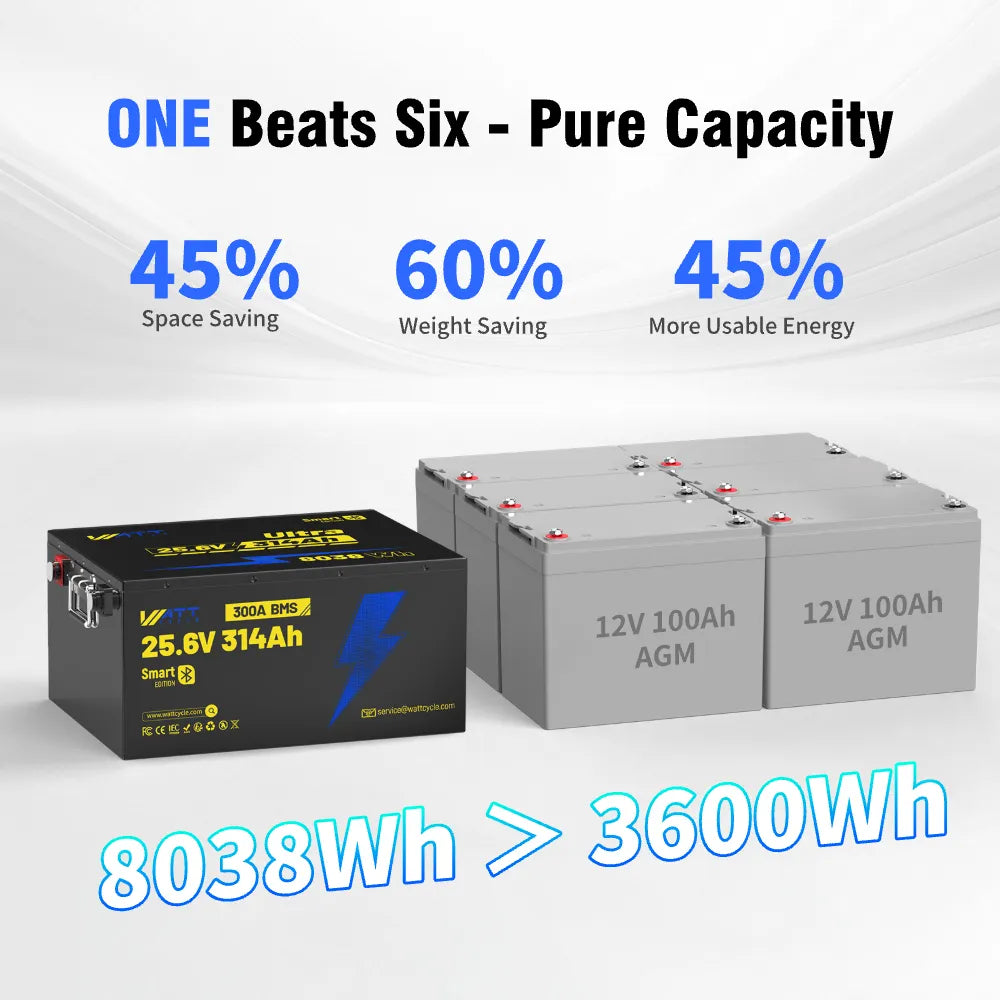

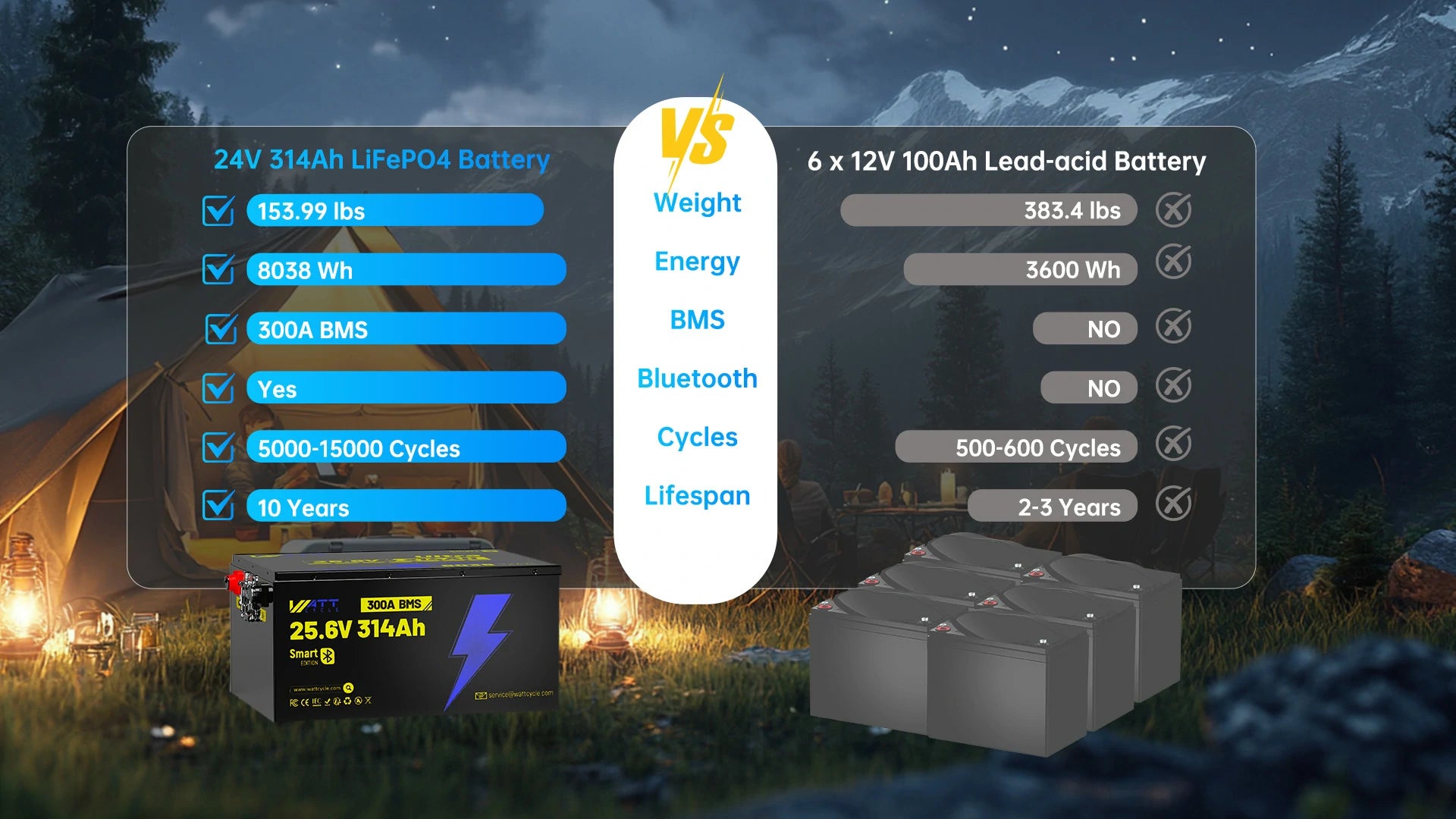

Leaner, Stronger Alternative to Lead-Acid
Rock-Solid 300 A BMS for Heavy-Duty Use

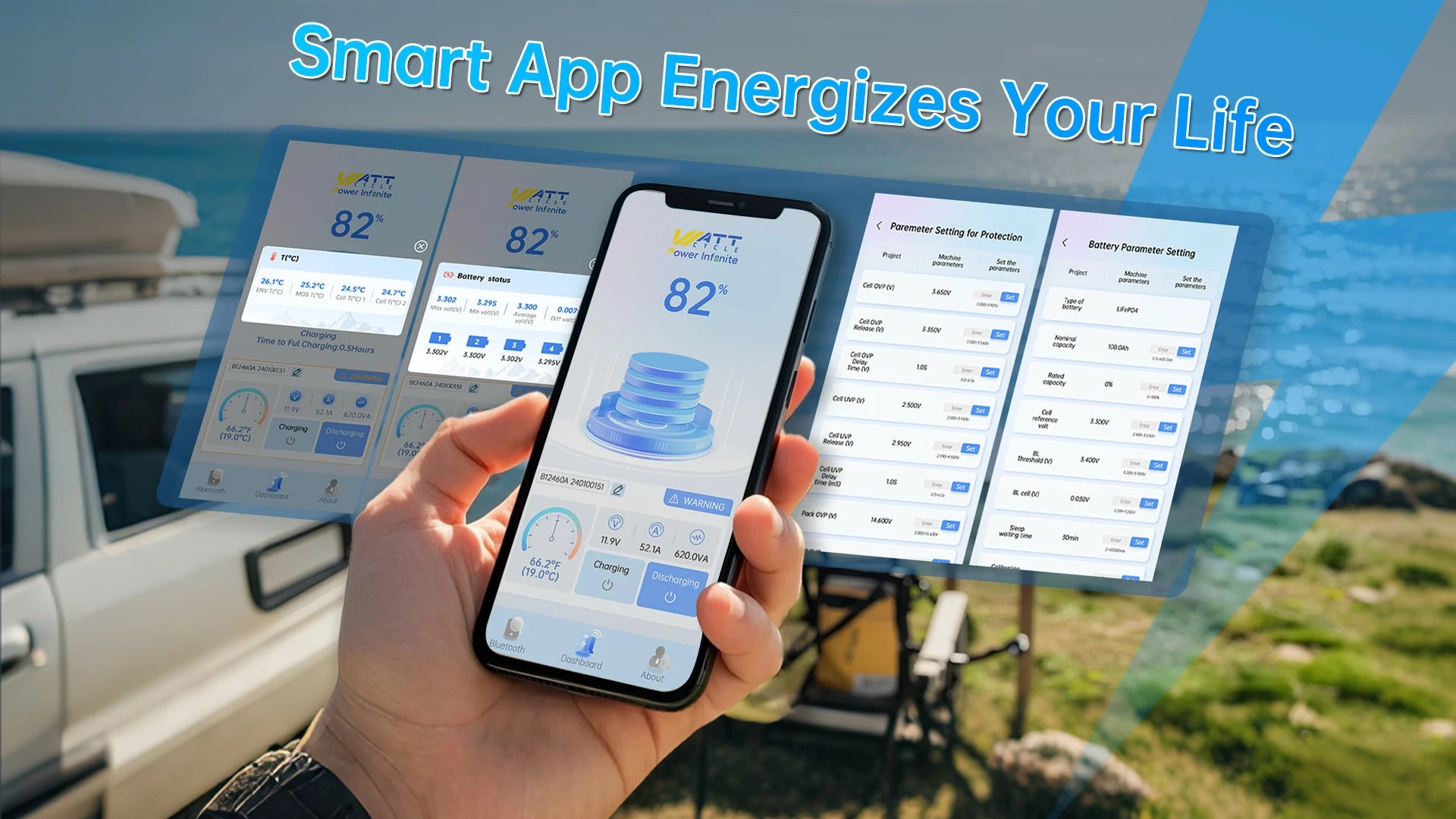

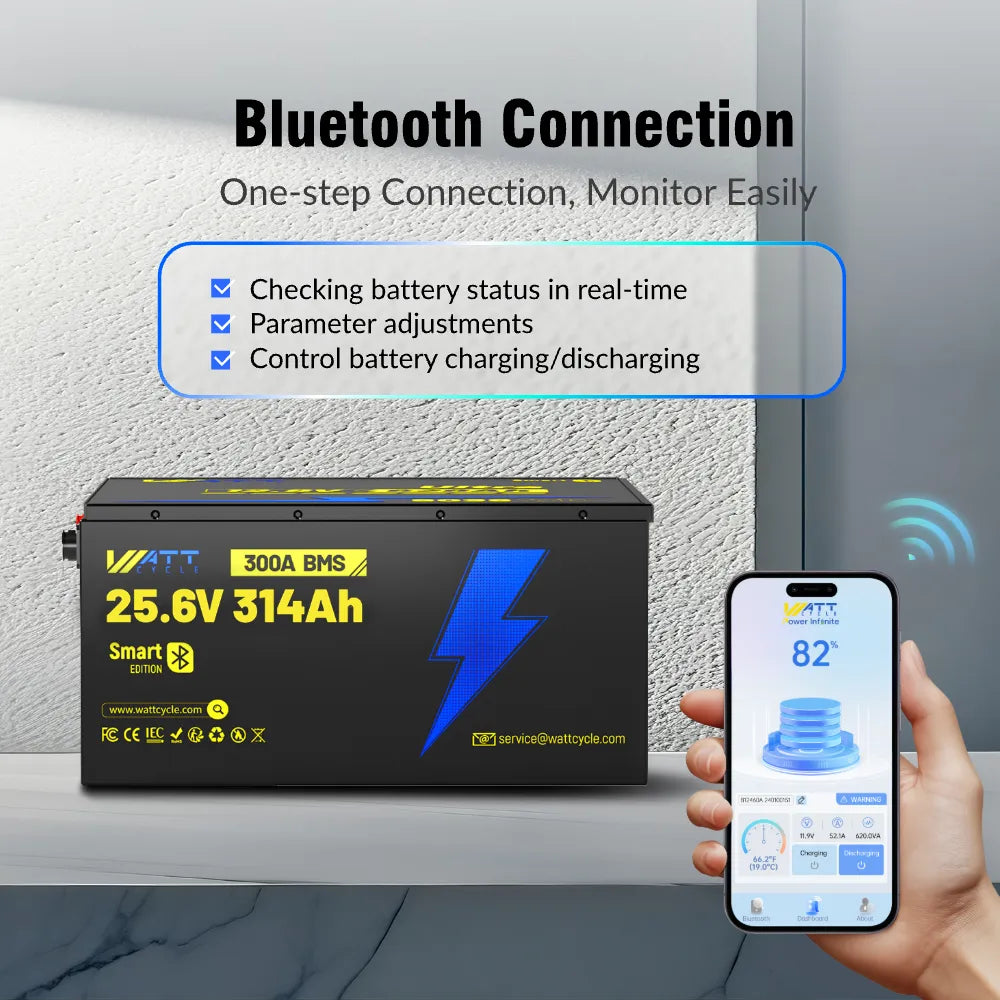

Real-Time Monitoring via Bluetooth

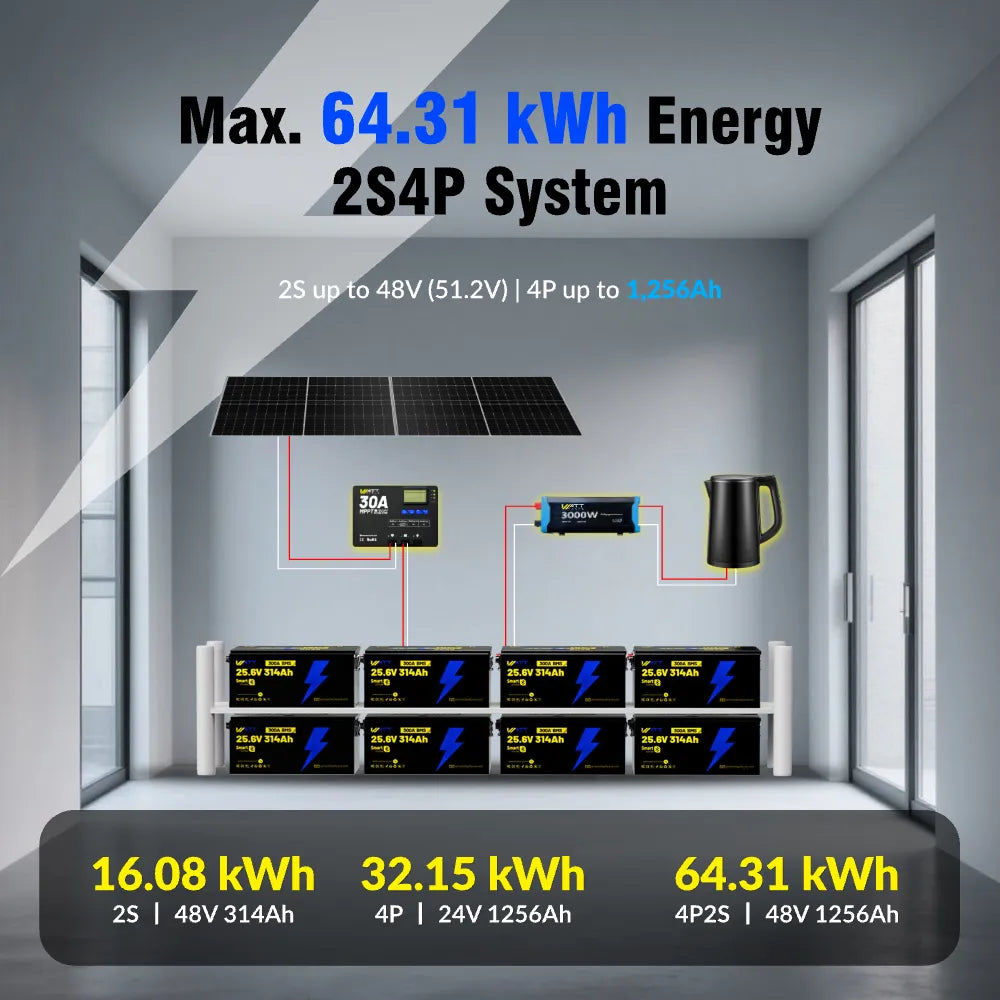

Flexible, Scalable Energy Architectures
Four Speedy Charging Pathways
Versatile Applications for Every Scenario
Let customers speak for us
It has been in operation now for 6 days.
We are happy with this product.
We are suppliers and installers of off-grid solar systems and Wattcycle is now on our supplier list.
We just bought a second battery!
New to Li and solar controllers. 67yo retired tradesman so not afraid of installations as a whole. The app was painless to work with for me. Installed in an aluminum truck tool box and at 25' away I have Bluetooth connectivity. So far no problems with cell balances. I will consider buying a second.
Still waiting to try it out all charged and the app hooked up seamlessly. Like the weight much lighter than a comparable lead acid battery
⭐⭐⭐⭐⭐ Reliable Power and Smart Monitoring – Perfect for Trolling Motors!
I've been using the Wattcycle 12V 100Ah TM Battery with Bluetooth on my trolling motor setup, and it's been an outstanding upgrade. The power delivery is consistent, even during long days on the water. No unexpected drop-offs or performance issues—just solid, reliable output.
The built-in Bluetooth monitoring is a huge plus. I love being able to check the battery's status right from my phone—voltage, temperature, state of charge, and more. It gives me full confidence while out fishing, knowing exactly how much battery I have left at all times.
The battery is lightweight, charges fast, and feels built to last. It’s clear Wattcycle put serious thought into both performance and convenience.
Highly recommended for anyone needing a dependable and smart battery for trolling motors!
Purchased 2 314AH smart mini so far so good. Did a 150Amp draw down to 58% SOC after 3 hours, ran out of time to take it longer, this test exceeded expectations. Look forward to testing it when traveling next week.
I purchased this battery primarily to replace the heavy 100A.Hr deep cycle lead acid battery that I use for my trolling motor, and secondly as an increase of capacity to my 2000 watt "solar generator" (portable back up power supply).
I did a brief test with the battery in both applications and it performed exactly as expected. On the surface it appears to be sturdy, attractive and well made. The weight makes it easy to move and so far, I am very satisfied with my purchase. My only regret is not spending a few dollars more on the unit with bluetooth communication.
Just got my order of 2-100amp batteries to power my 24v 78 lbs thrust outboard. Can't wait to get on the water. Bluetooth works greatand the reason I chose these.
I'm happy that your batteries are now available in Canada. Wattcycle is the ones I wanted after looking for quality at a good price. I made a short video on YouTube showing off my new batteries. I want to buy 2 more 100ah batteries in the near future to complete my little portable power station. I'll be making a video about that also. Thanks for putting out a good product.
Bill Prowse is the best source on Youtube when it comes to analyzing anything to do with Lithium batteries, not to mention solar power systems. His review of the Watt Cycle 12 volt LiFePo4 battery was strongly positive. I've been using it now for a few weeks and feel confident that it was a great purchase and it should provide years of reliable service.
I needed to upgrade from my heavy and low capacity Lead Acid RV batteries.
After some YouTube research and on-line shopping, I came to the conclusion the WattCycle Group 24 100 AH battery was the best combination of performance, user ratings and price. For me this is a very good value.
A small customer service issue was dealt with and resolved quickly. The batteries were shipped quickly. Thank you.
I finally made the move to LiFePO4 batteries in my RV. The original Lead Acid worked but were lacking in usable capacity, and were heavy.
After a bit of YouTube research and on-line shopping, I chose the WattCycle. It's a very good battery, with very good on-line reviews, good tested performance and overall for me results in a battery with very good value.
With this kind of investment I knew the best thing would be a LiFePO4 specific charger. This one was made by WattCycle specific for the Batteries I bought. With a package deal (with the Batteries I brought) the pricing was perfect. It charged the batteries quickly and was relatively quiet.
Shipping was fast. Thank you.
