Reasons to Choose WattCycle

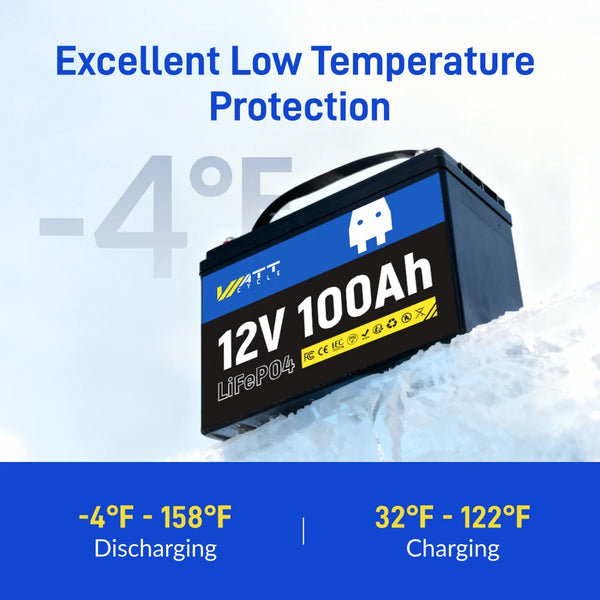

Working as Usual in Extreme Weathers
Charge Temperature: 0℃ to 50℃ / 32℉ to 122℉
Discharge Temperature: -20℃ to 70℃ / -4℉ to 158℉

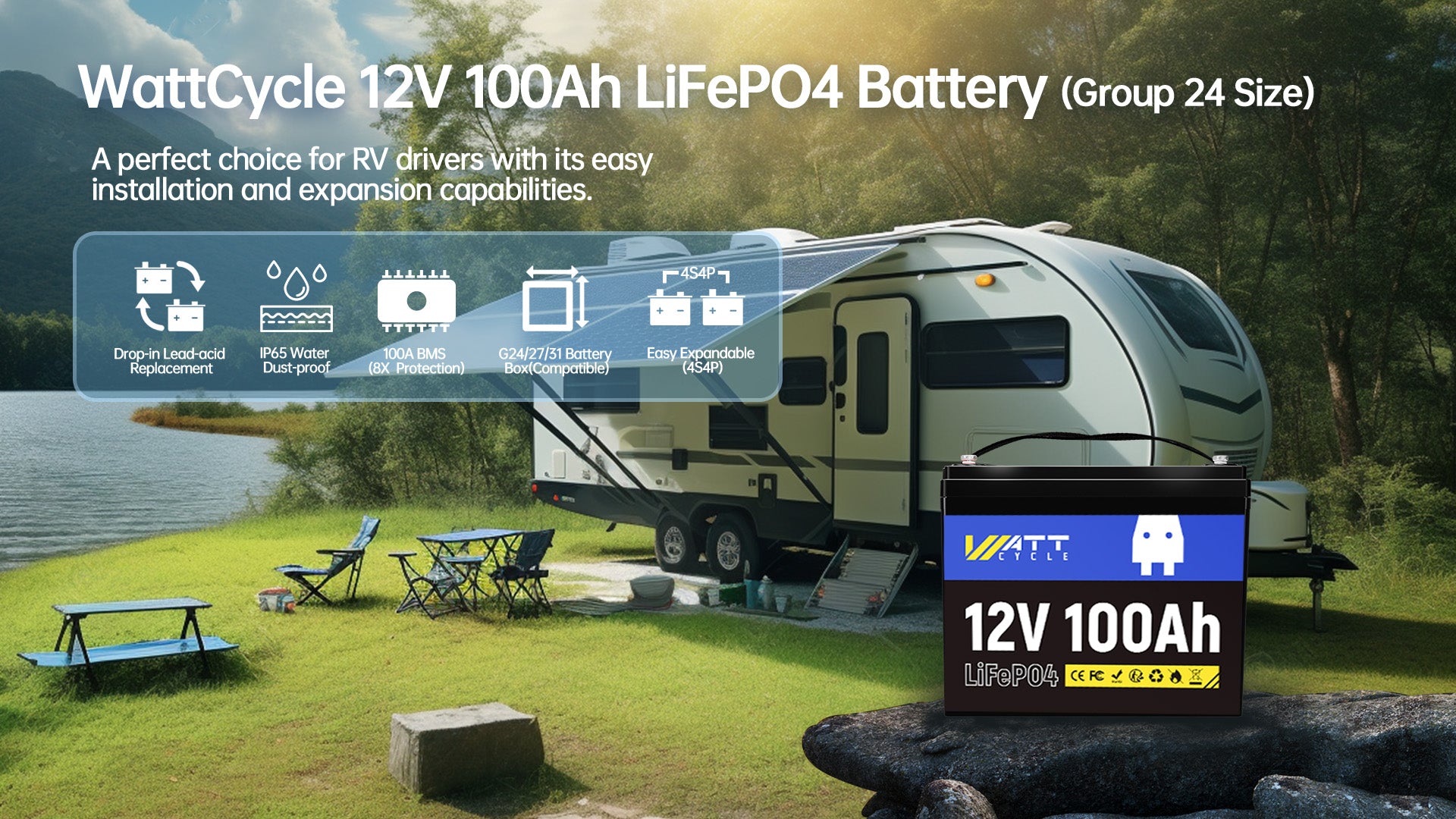

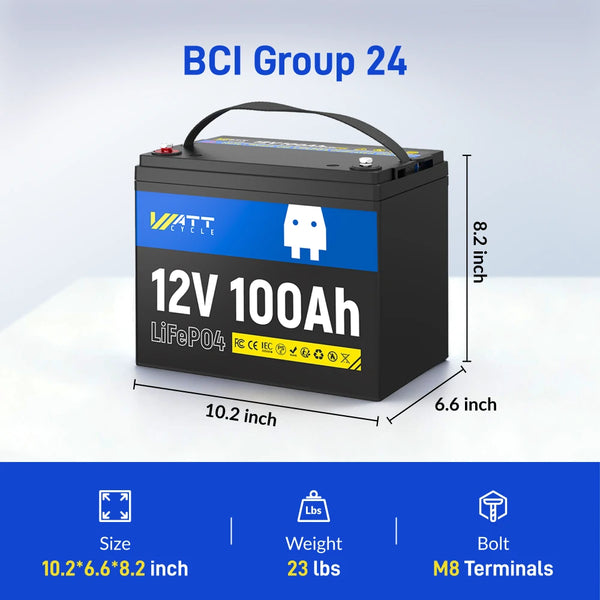

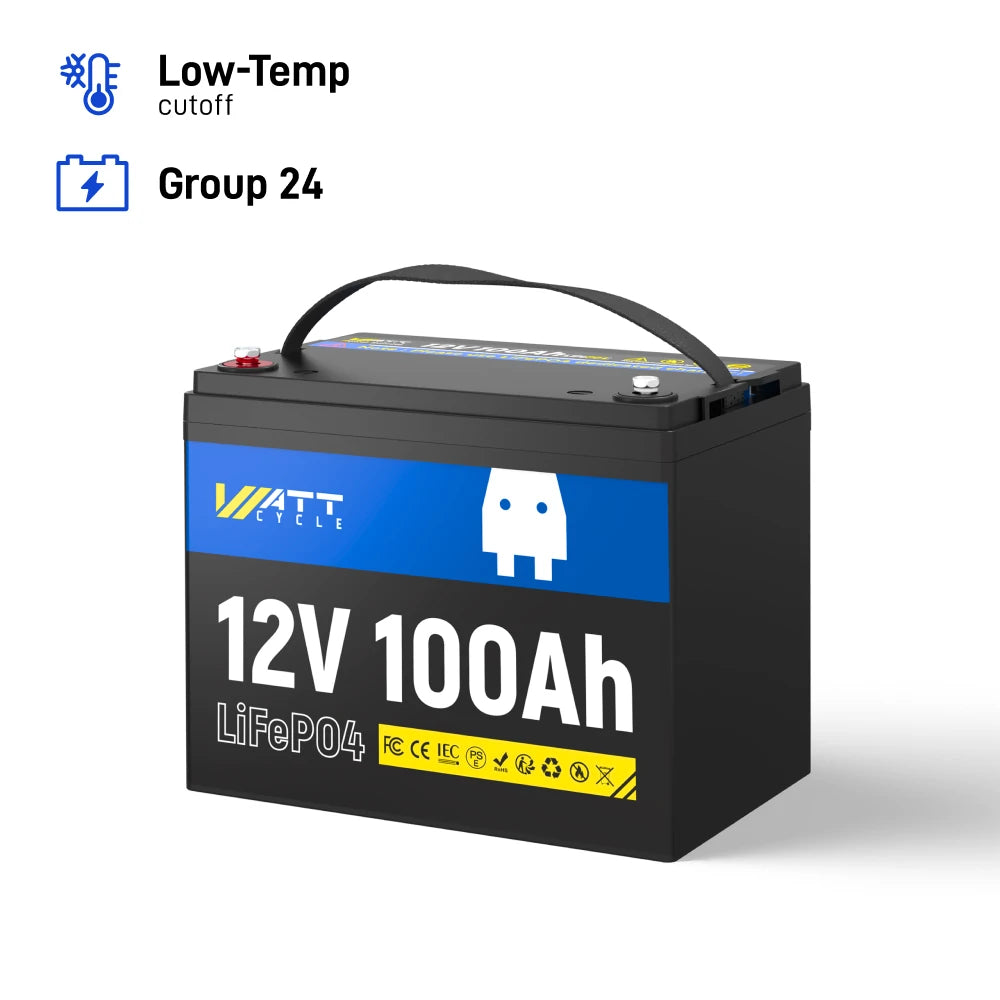

Group 24 Size, Universal Fit
Typical dimensions for a Group 24 battery:
Length: 10.25 inches (260 mm)
Width: 6.8125 inches (173 mm)
Height: 8.875 inches (225 mm)
Please double-check the specific dimensions provided by WattCycle to ensure a perfect fit, as slight variations can occur.

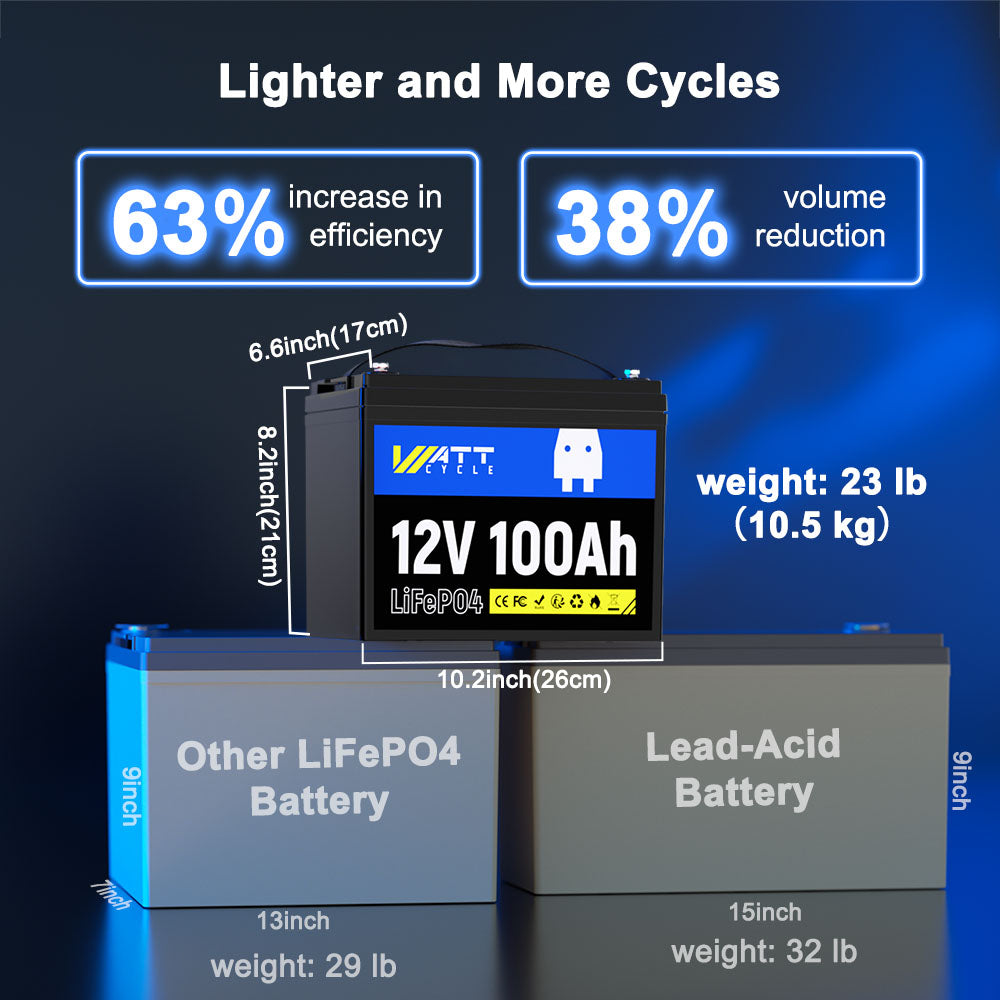

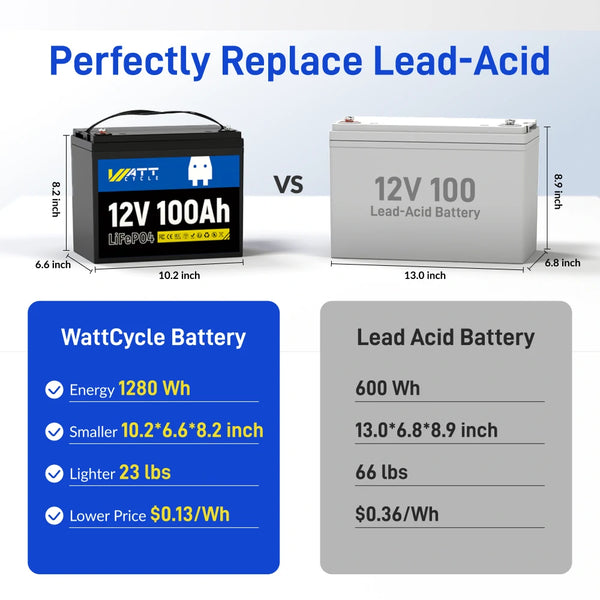

Lighter, Smaller & More Energy
62~69% Lighter | 27% Smaller | 178~247% Energy Increases

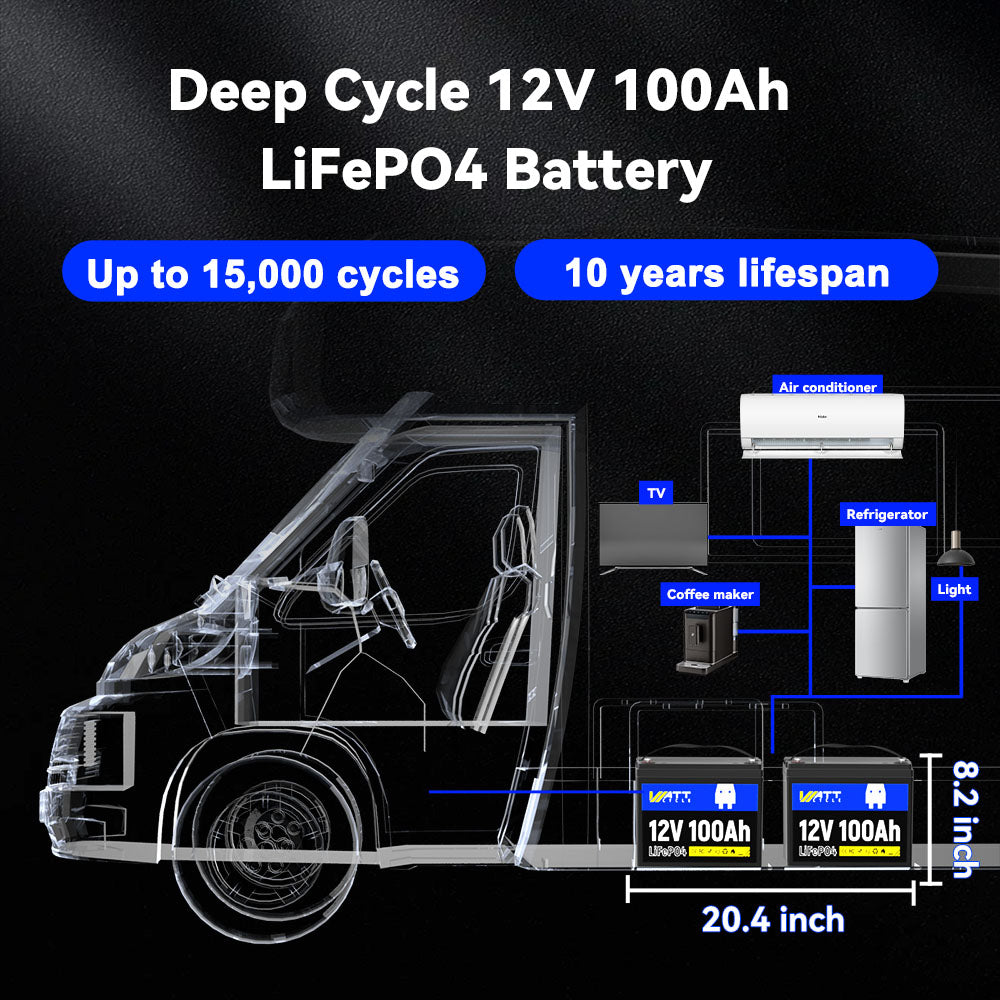

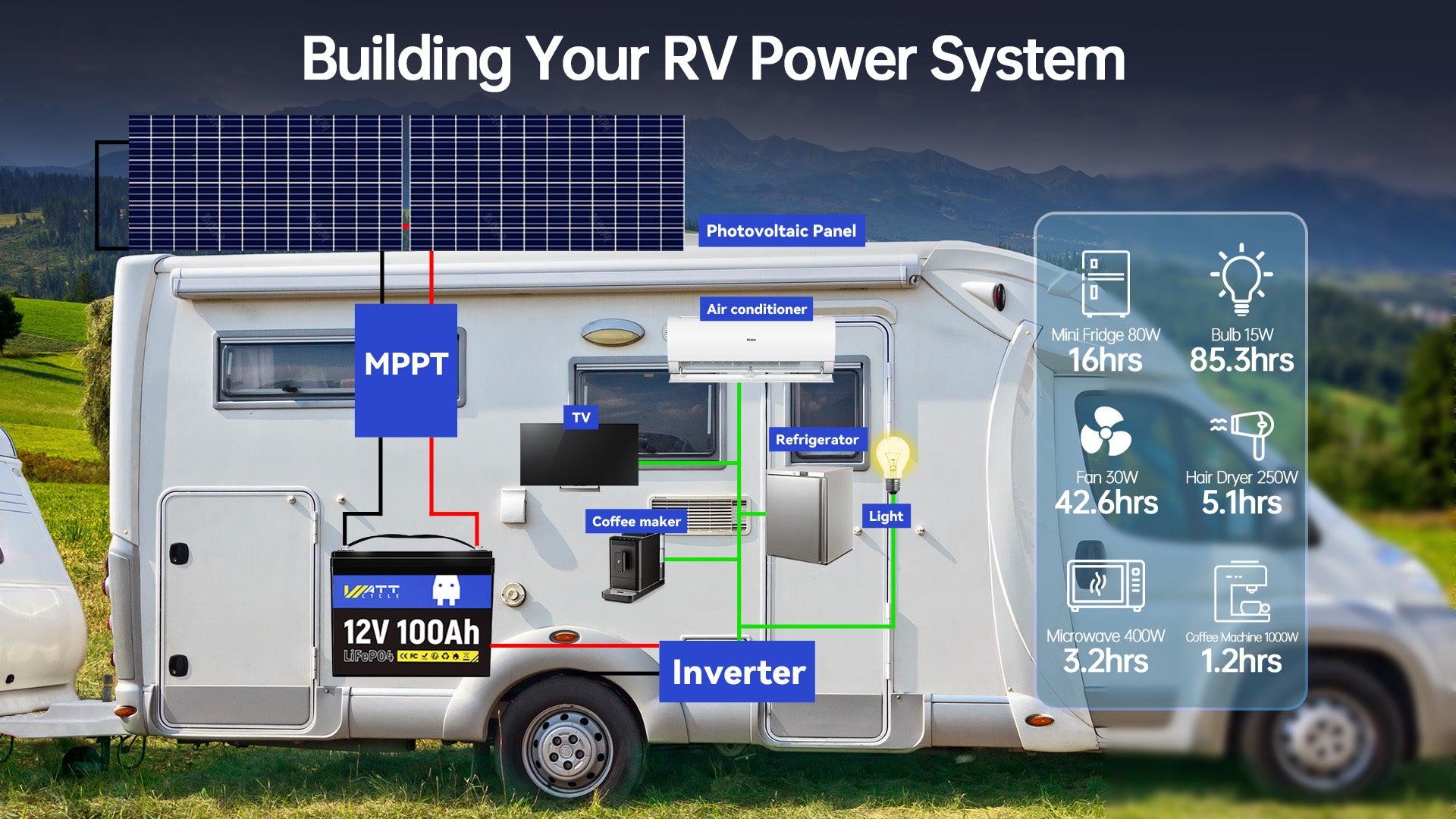

Application 1: RV System
Application 2: Home Storage
More Applications, More Possibilities
RV/VANS/Camper/Off-grid/Home Storage/Trolling Motors
Tech Specs
GENERAL

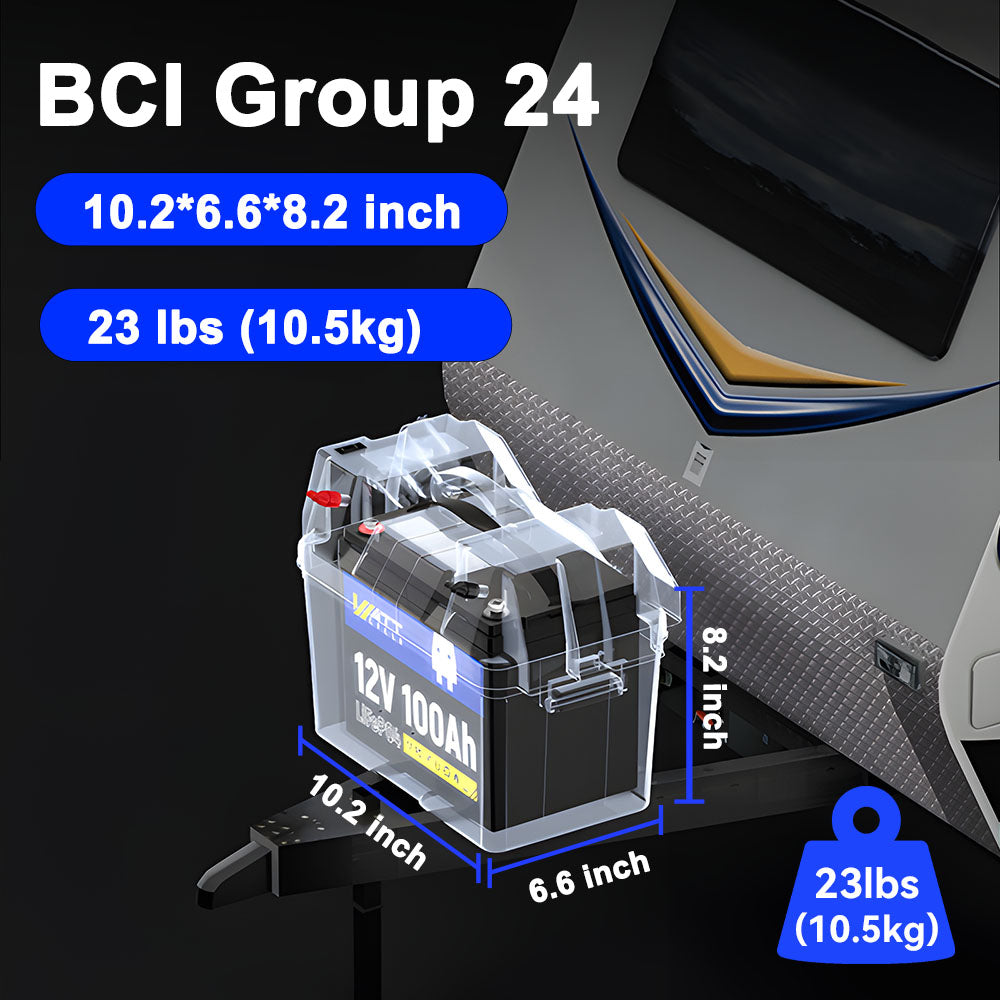

Dimensions (Inches) | 10.2 (L) x 6.6 (W) x 8.2 (H) |
Weight | 23.0lbs / 10.5kg |
Waterproof Rating | IP65 |
Warranty | 7 years |
Housing Material | ABS (Flame Retardant Plastic) |
Terminal | M8 bolts |
12V 100AH BATTERY

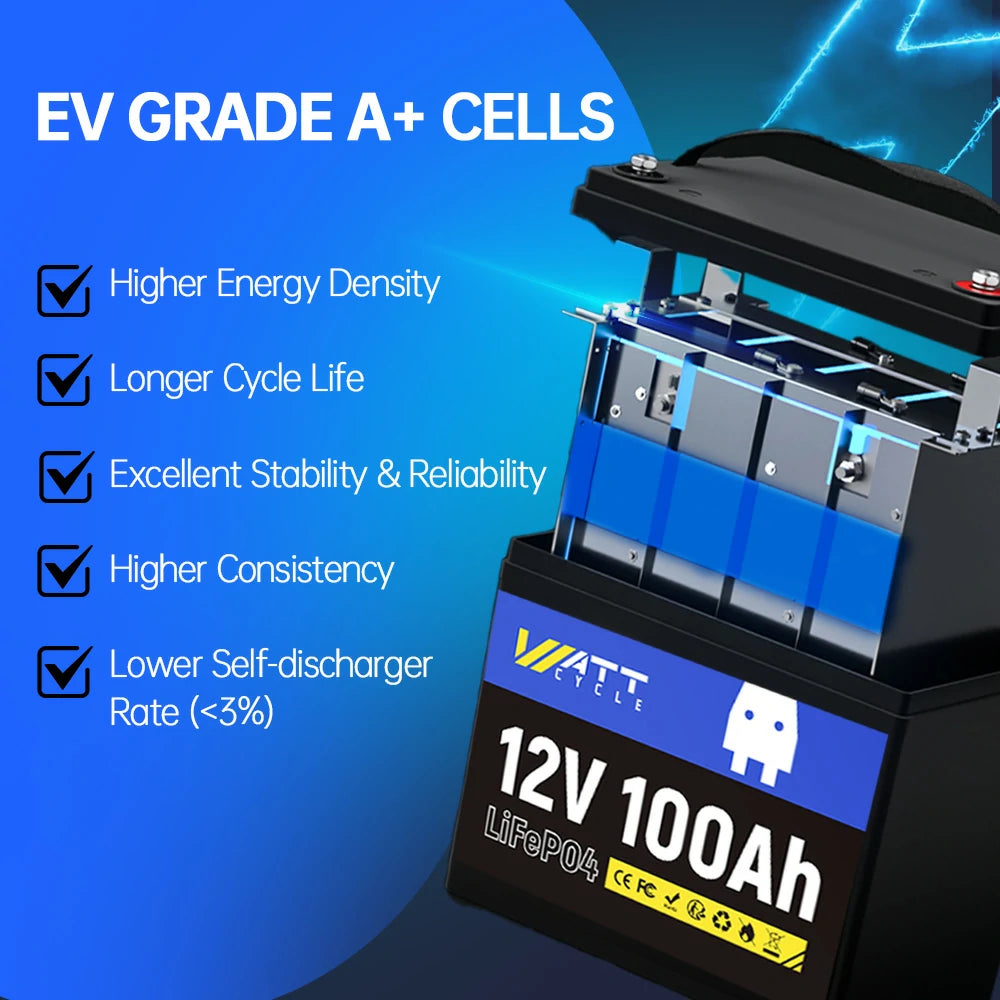

Cell | EV Grade A+ LiFePO4 Cells |
Nominal Voltage | 12.8V |
Nominal/Usable Capability | 100Ah |
Energy | 1280Wh |
Cycle Life | 5,000+ cycles @100% DOD, 6,000+ cycles @80% DOD, 15,000+ cycles @40% DOD |
Max Depth of Discharge (DOD) | 100% |
Max. Expansion | 4S4P |
Internal Resistance | ≤40mΩ |

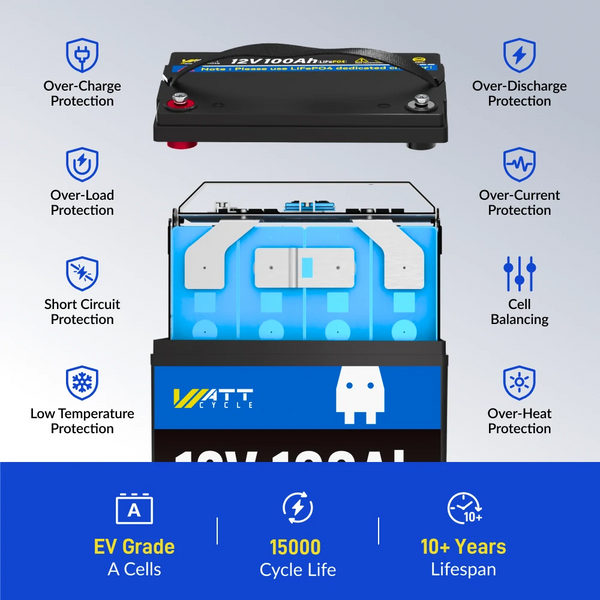

Battery BMS
BMS | 100A |
Max. Continuous Output Power | 1280W |
Max. Continuous Charge Current | 100A |
Max. Continuous Discharge Current | 100A |
Max. Discharge Current | 300±50A (≤5s) |
12V 100AH Lithium ion Battery Charge Specs
Charge Voltage | 14.4V ± 0.2V |
Charge Method | CC / CV |
Recommend Charge Current | 20A (0.2C) |
Charge Temperature | 0℃ to 50℃ / 32℉ to 122℉ |
Discharge Temperature: | -20℃ to 70℃ / -4℉ to 158℉ |
Storage Temperature | -10℃ to 50℃ / 14℉ to 122℉ |
Low-Temperature Protection | Yes (32℉/0℃) |
Low-Temperature Charging Protection Auto Recovery | Yes (41℉/5℃) |
