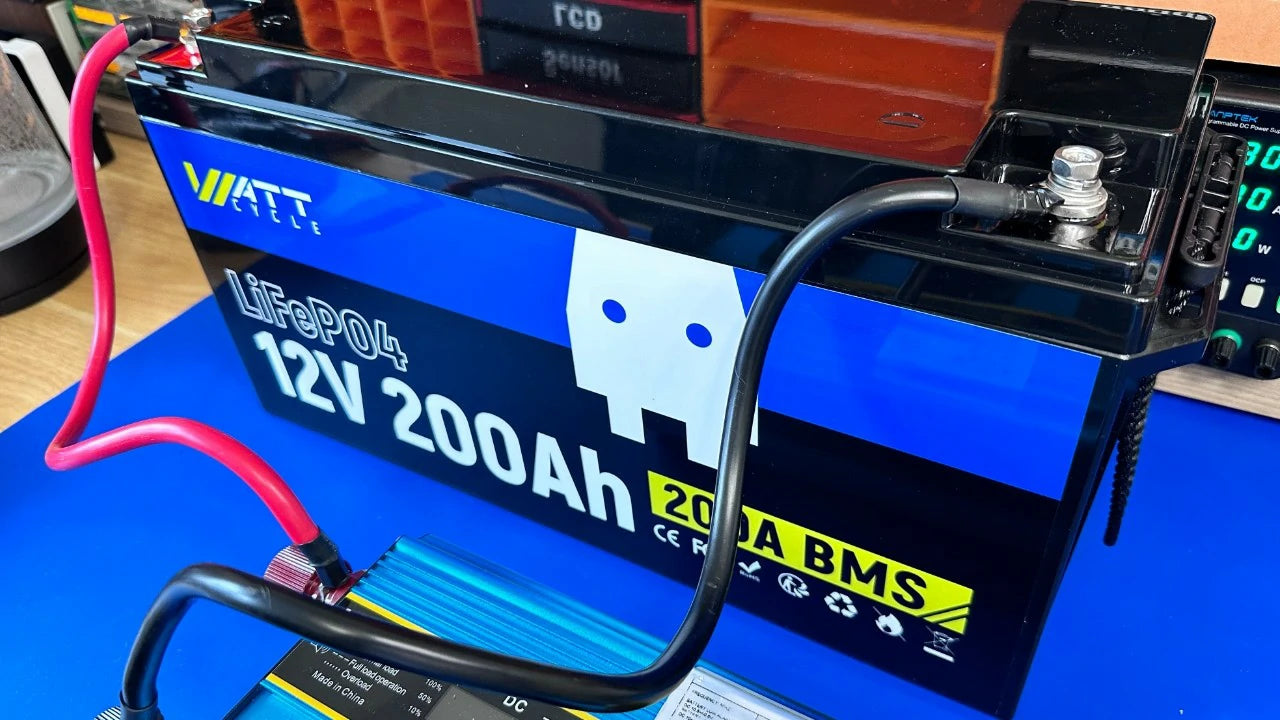

SAVE Thousands - Build your own solar energy storage! deep cycle battery @inventor KR | 299K+ Views

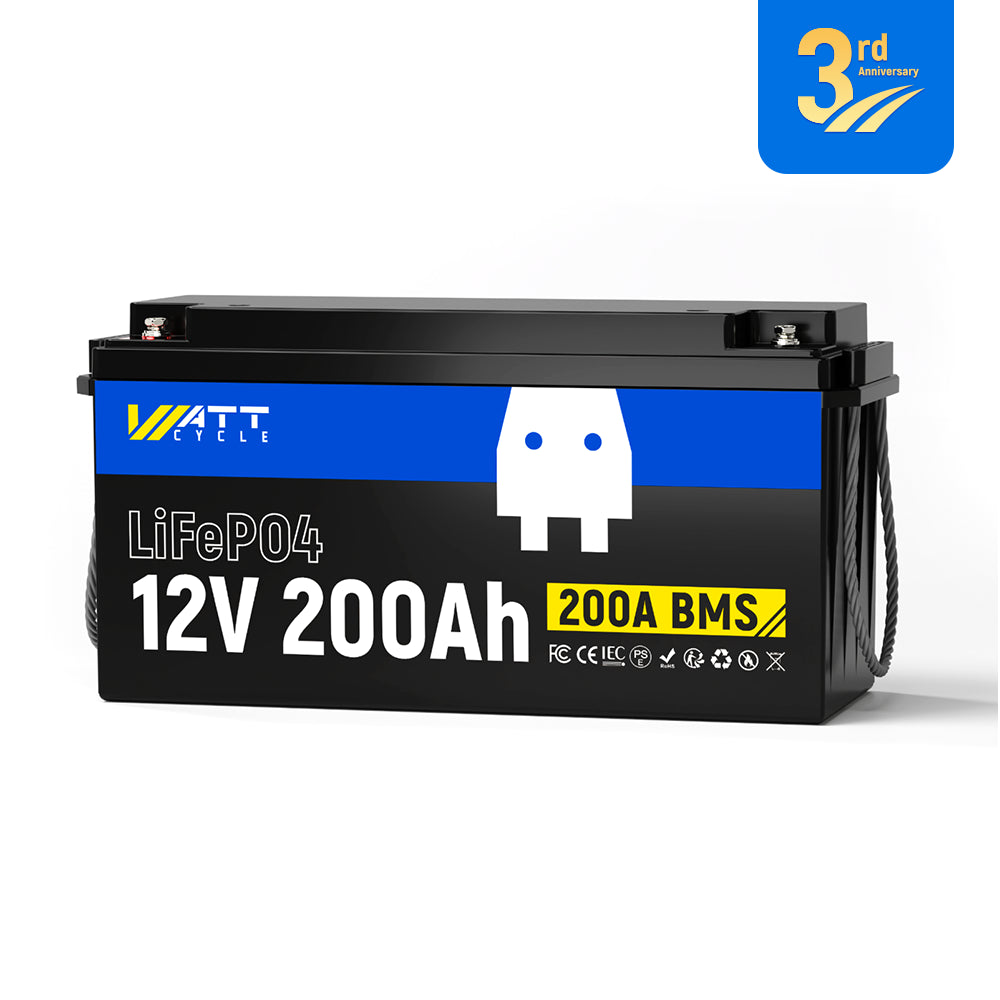

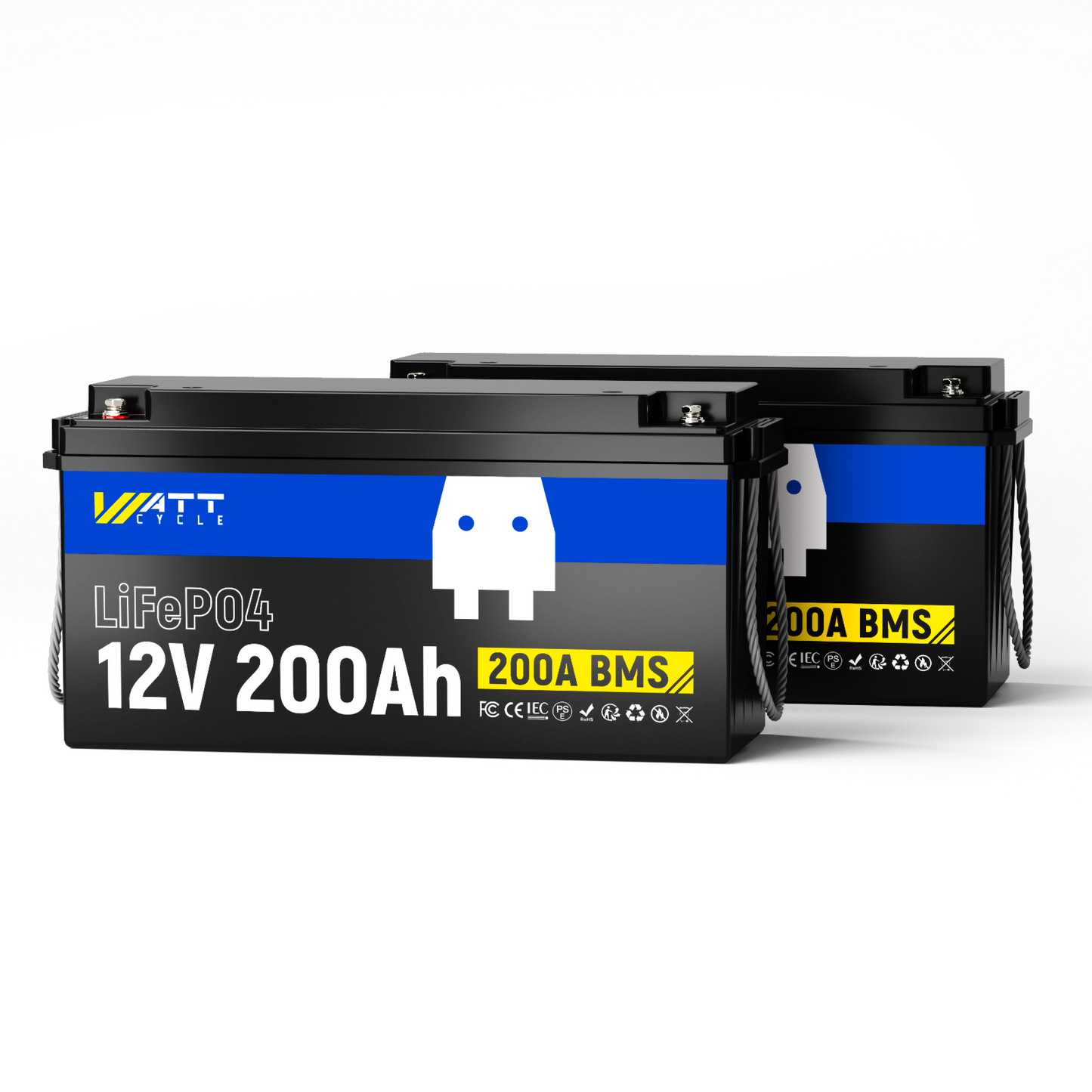

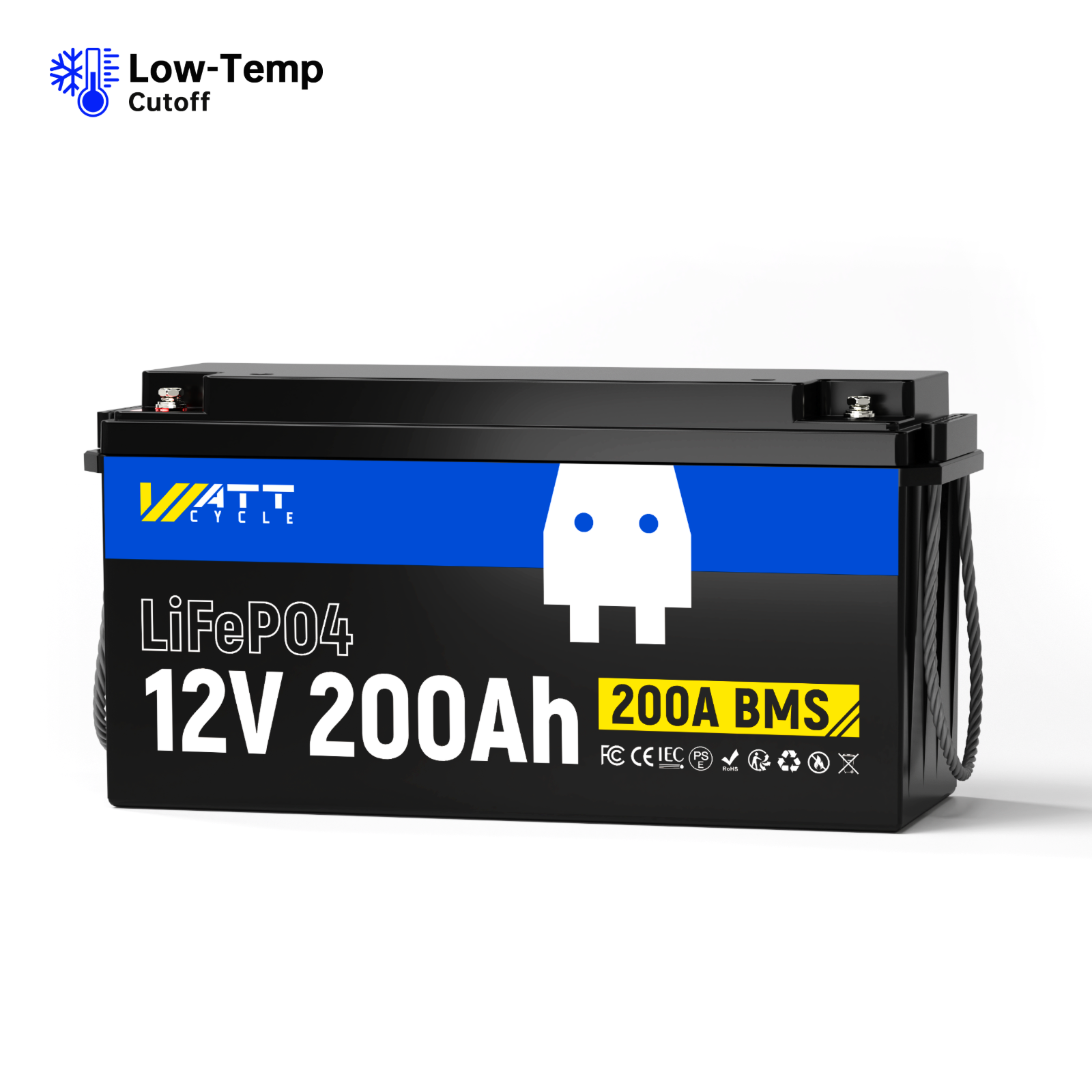

WattCycle Deep Cycle Battery: Grade A+ Power
- Brand New EV Grade A+ Cells
- Superior Quality and Reliability
- Longer Lifespan
- High Energy Density
- Safety and Stability
- Consistent Performance
- High Performance in Extreme Conditions
- Environmental Friendliness

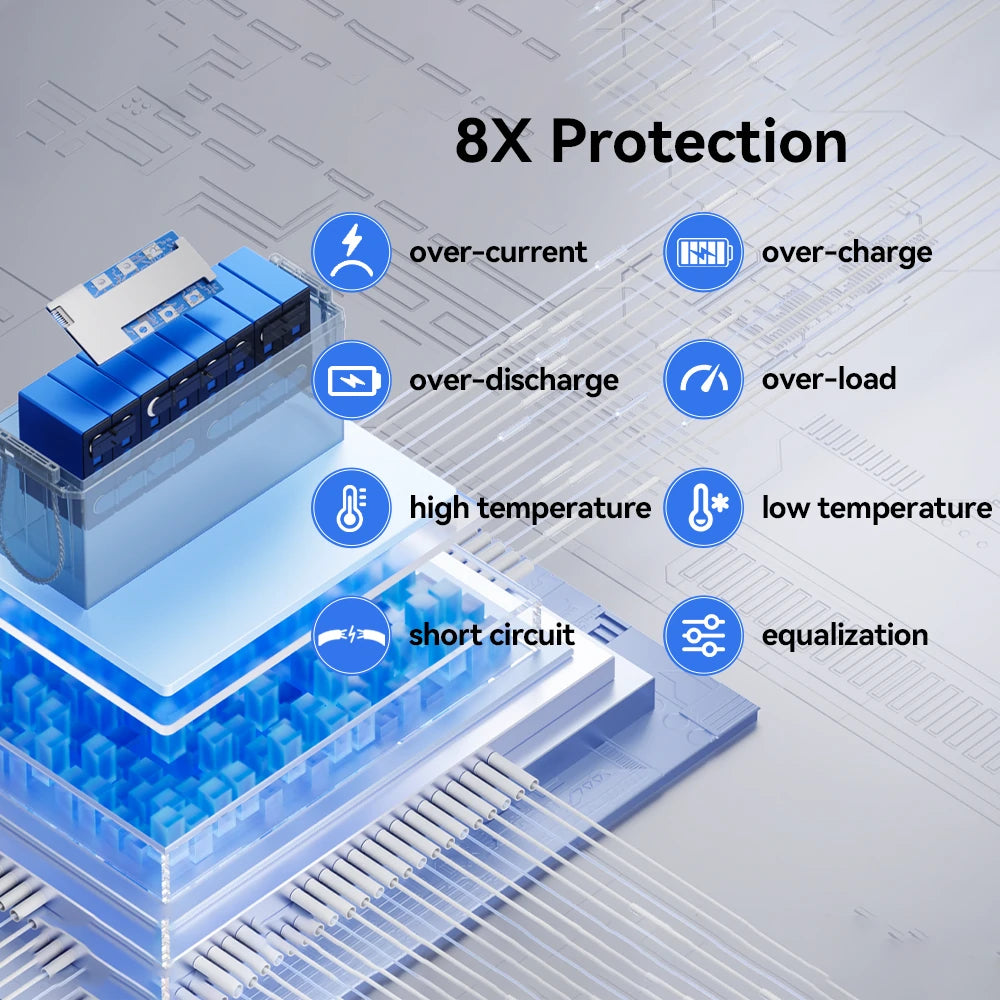

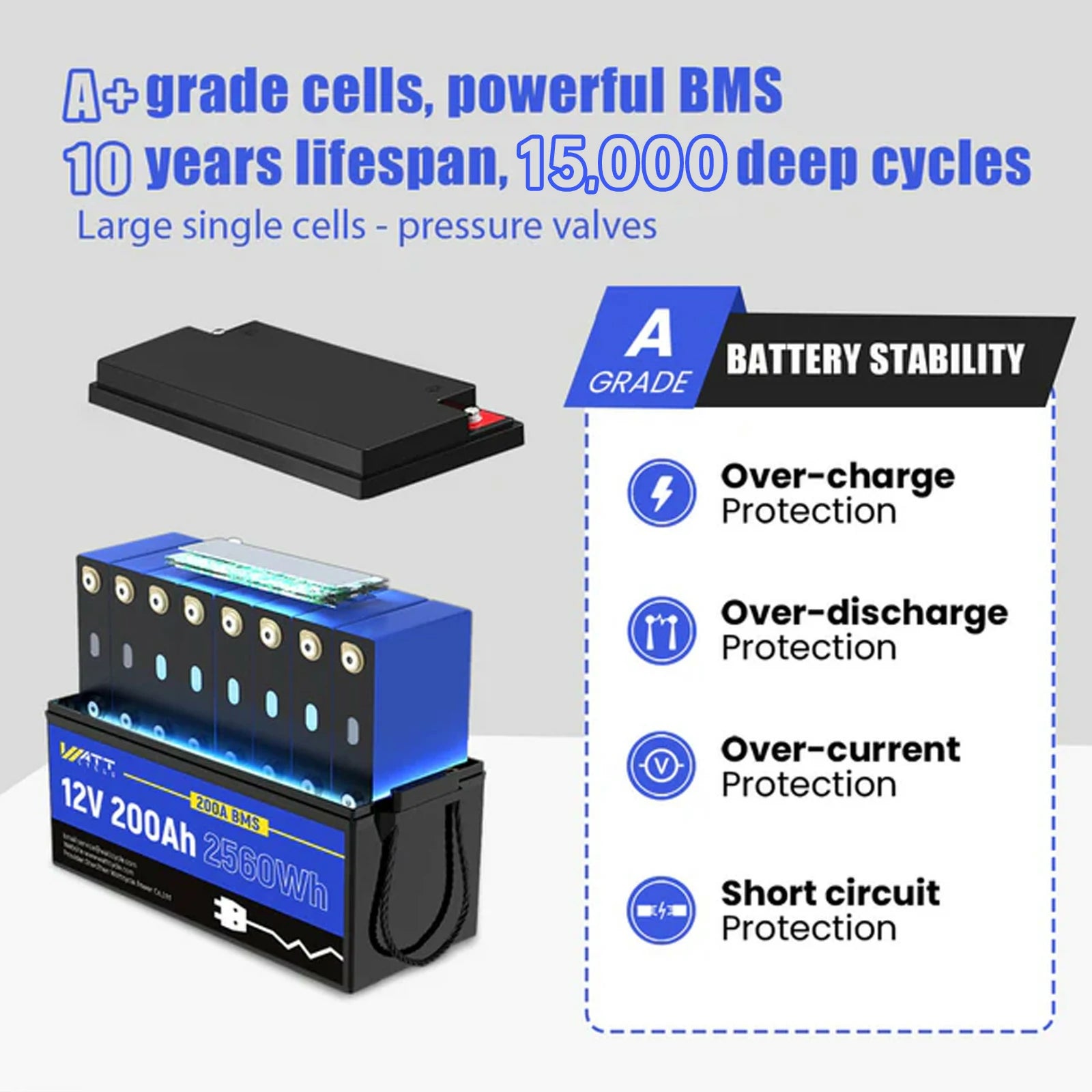

WattCycle Lithium Battery Safety: Premium BMS Protection
- Max. Cont. Discharge Current: 200A
- Max. Cont. Charge Current: 200A
- Max. Discharge Current (5s):300±50A

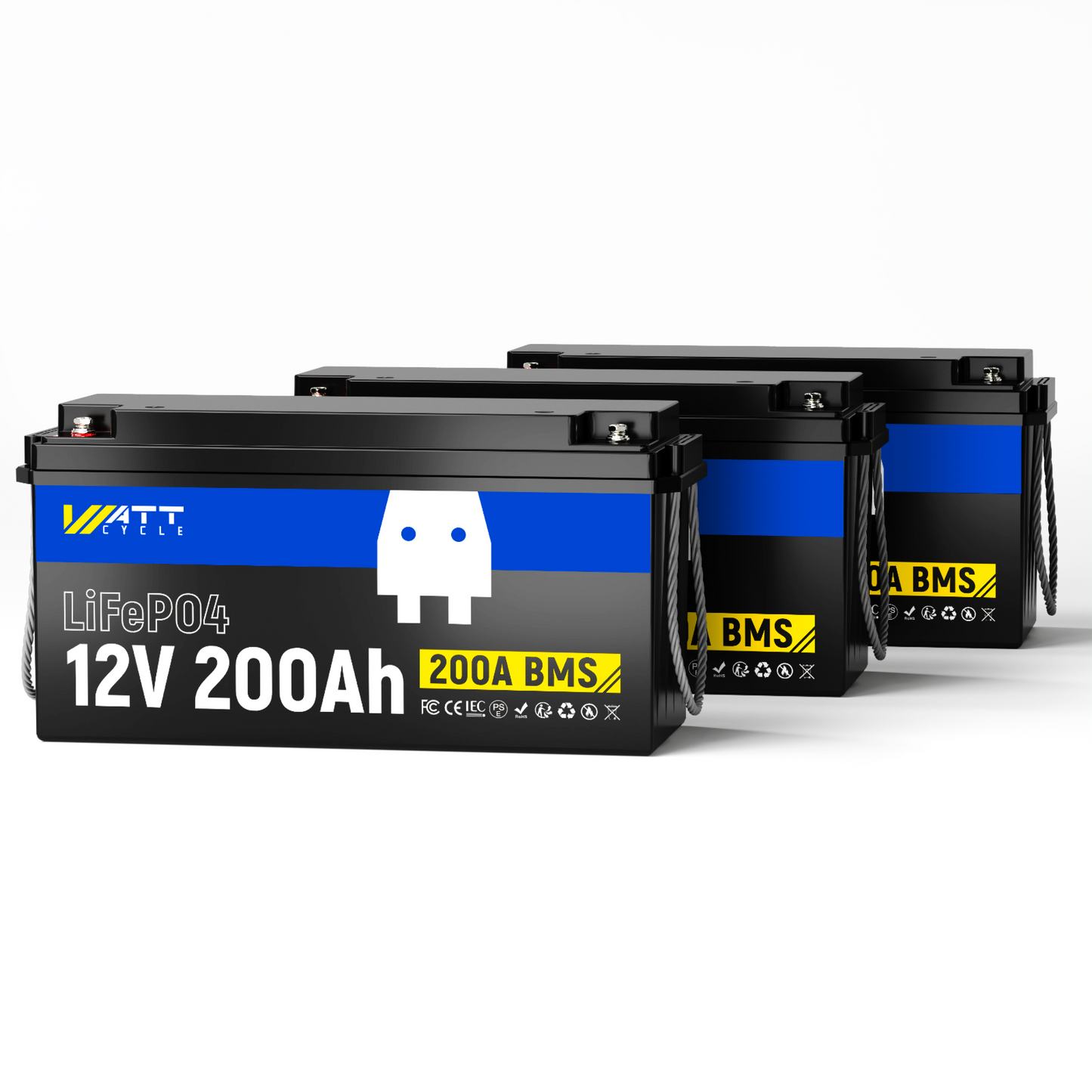

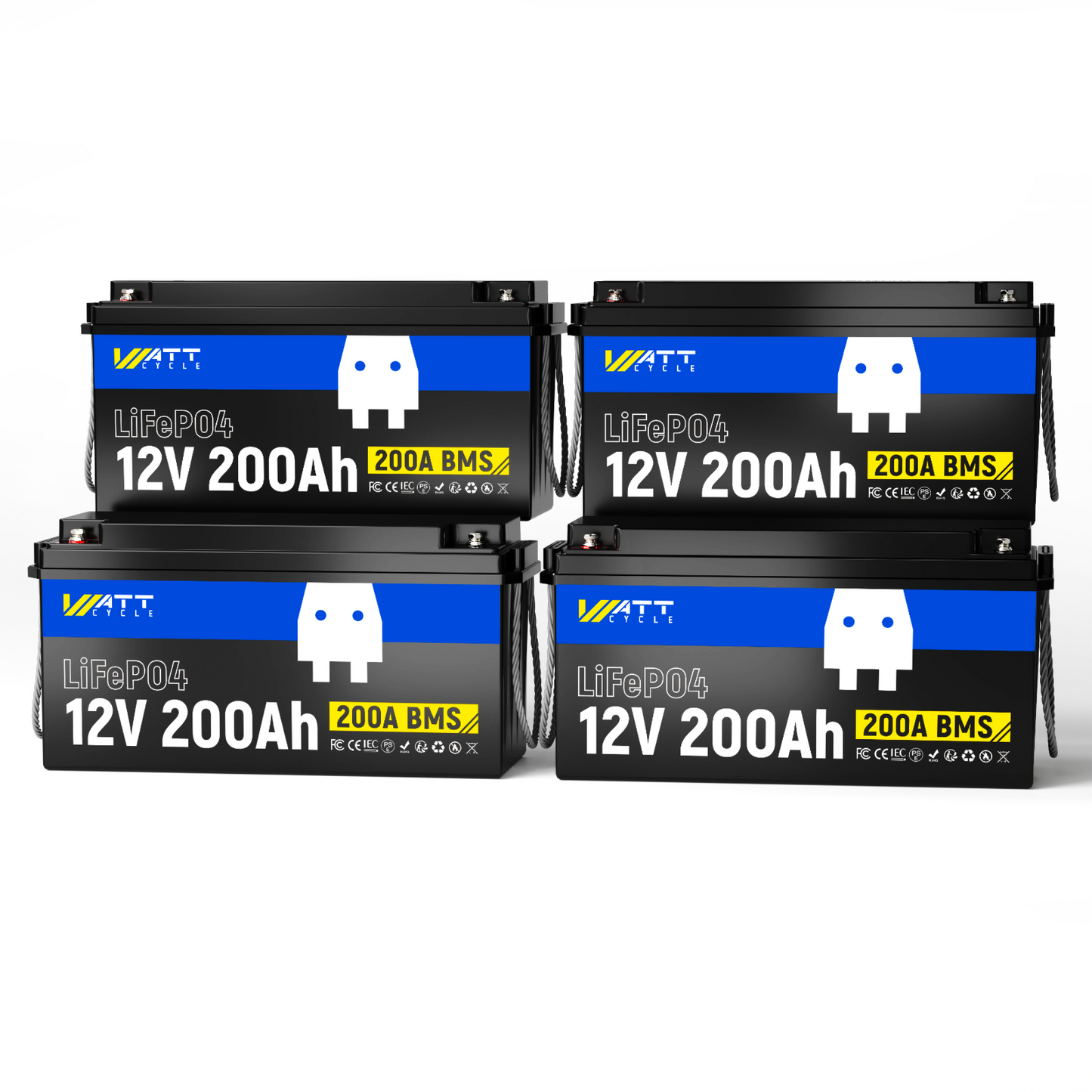

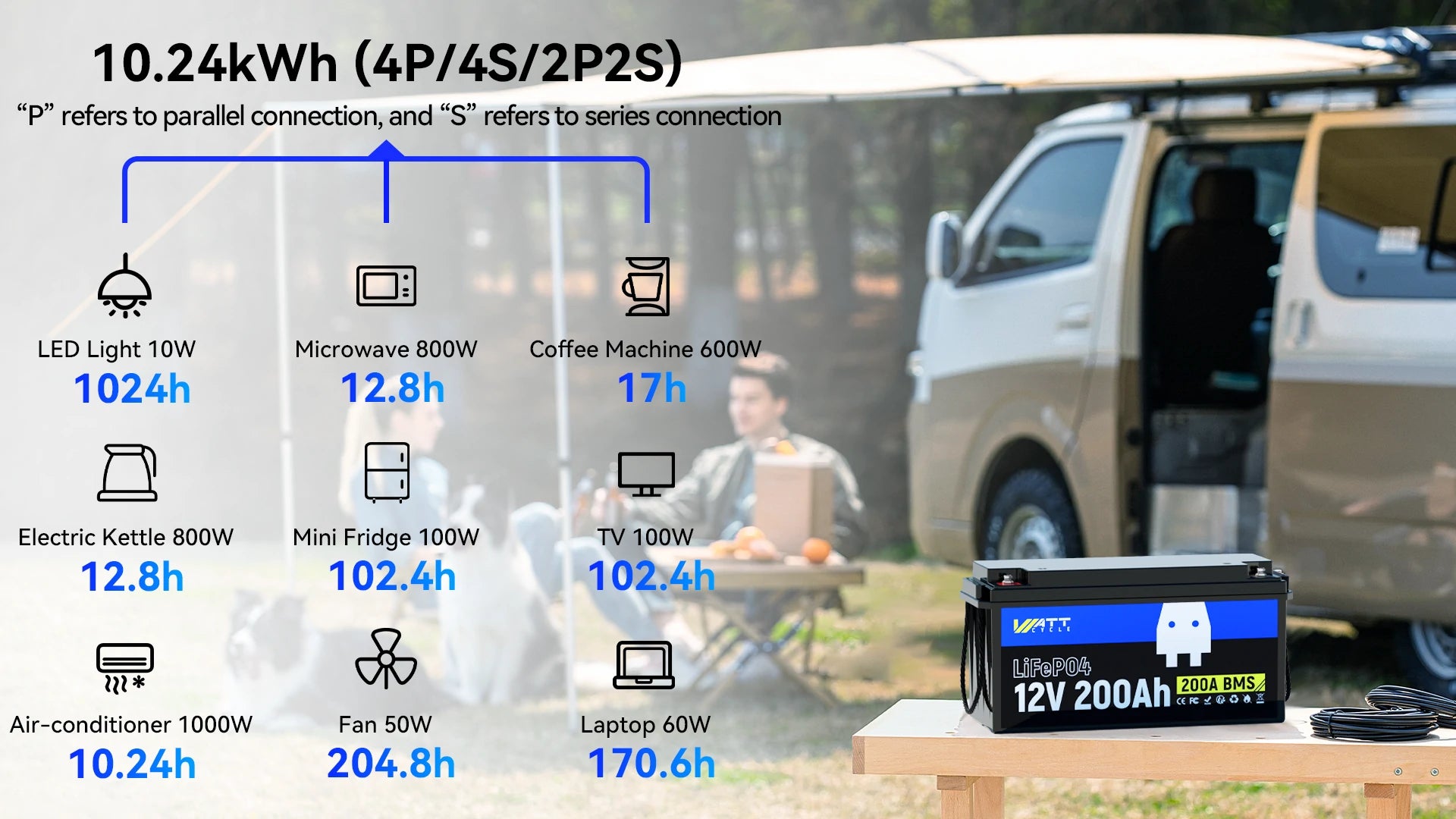

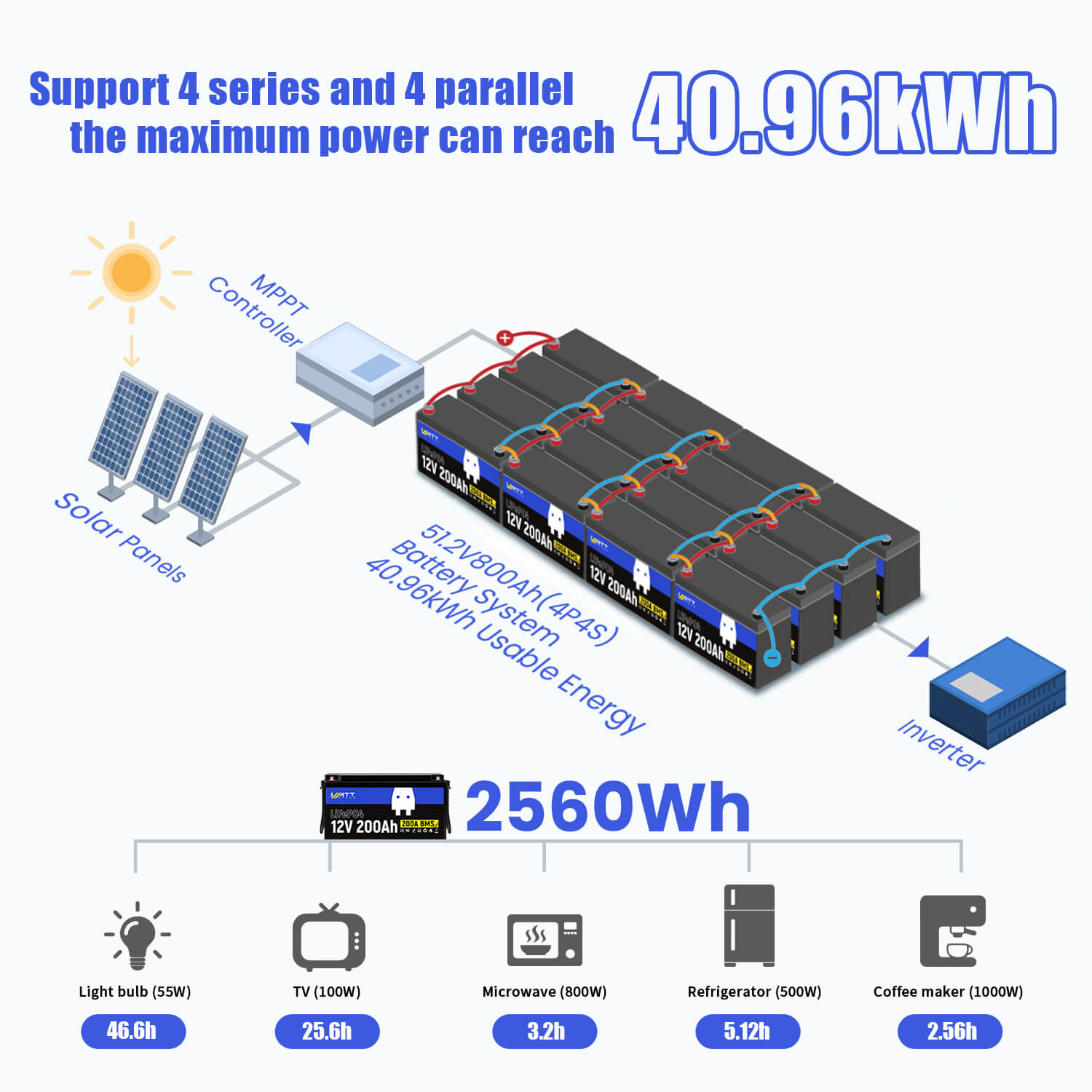

Connect in Series or Parallel
You can wire lifepo4 battery 12V 200AH Core Series Batteries in series to build a 24V, 36V, or even 48V system in your RV.
LiFePO4 Lithium Battery One-Stop Solution

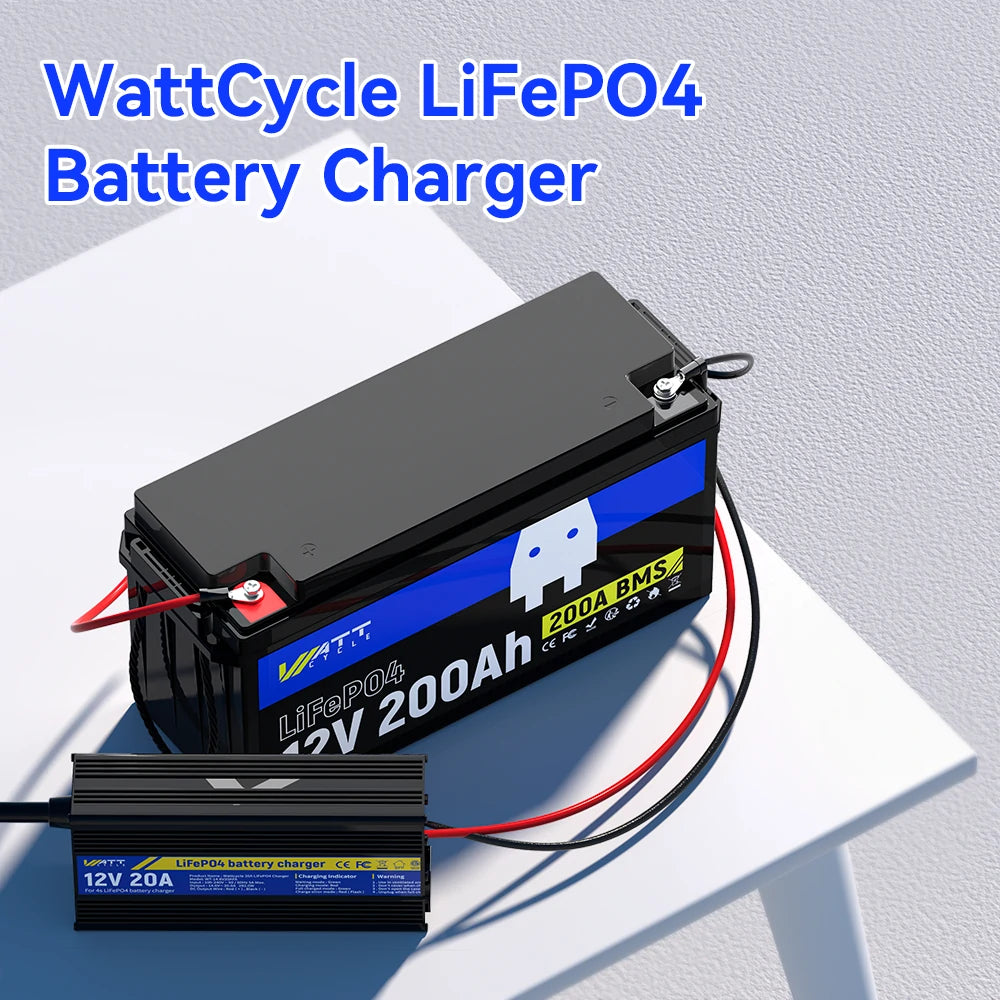

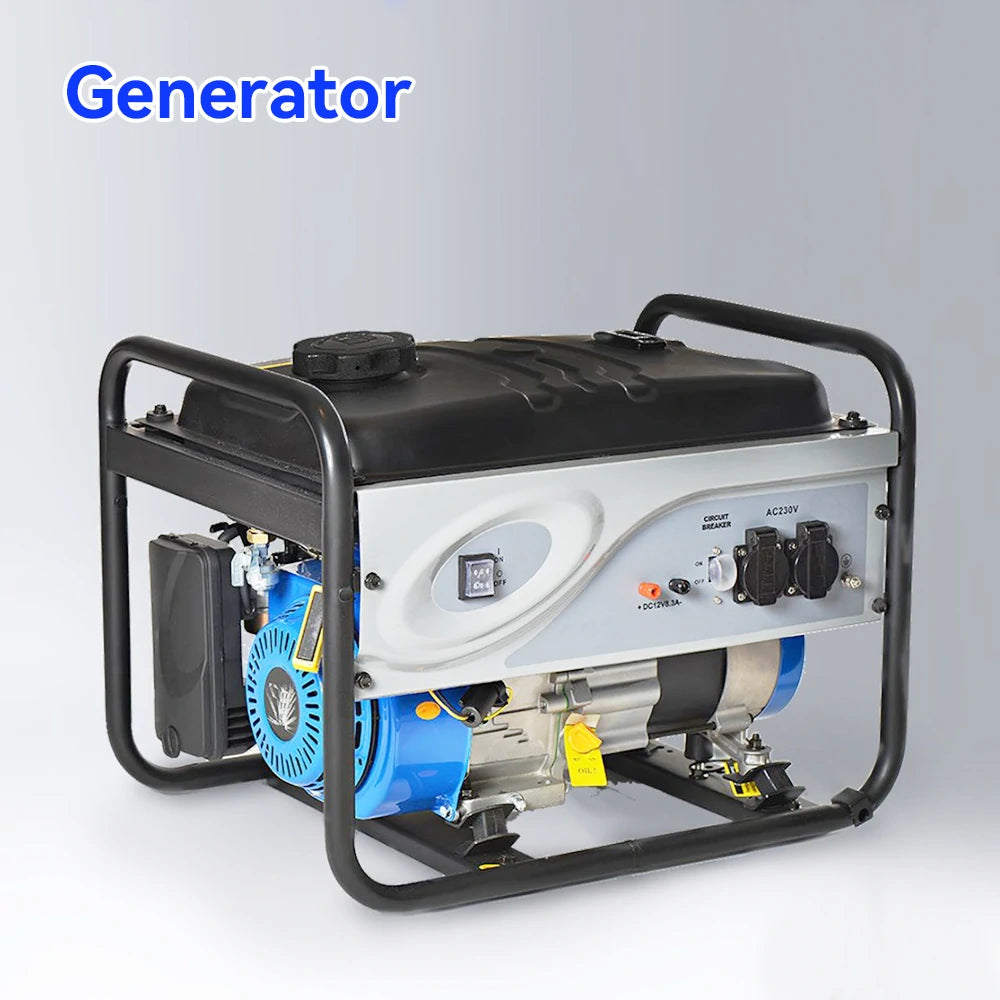

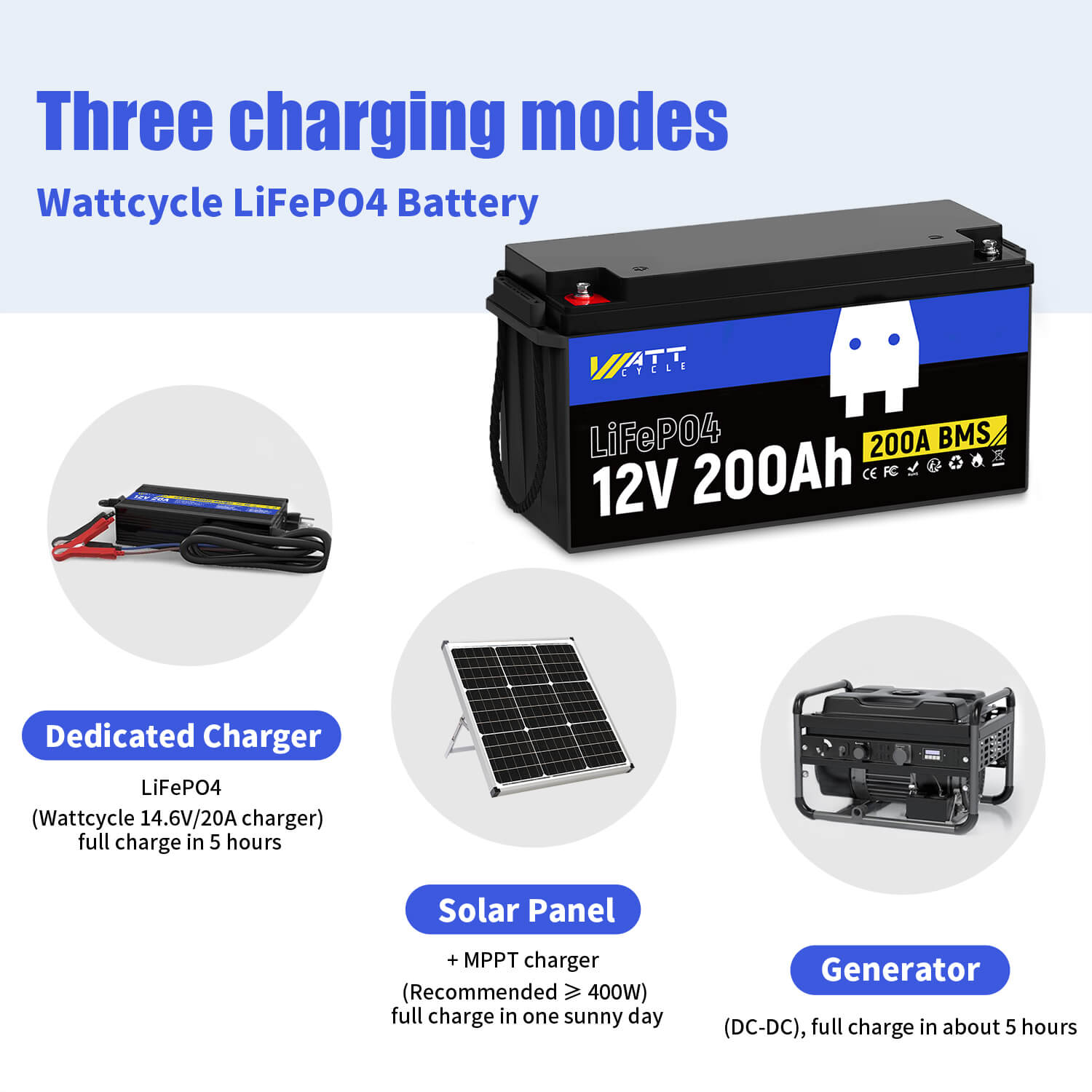

Choose the Charging Method That Suits You
Tech Specs
GENERAL
Dimensions (Inches) | 19.0 (L) x 6.6 (W) x 9.4 (H) |
Weight | 45.20lbs / 20.5kg |
Waterproof Rating | IP65 |
Warranty | 7 years |
Housing Material | ABS (Flame Retardant Plastic) |
Terminal | M8 bolts |
BATTERY
Cell | EV Grade A+ LiFePO4 Cells |
Nominal Voltage | 12.8V |
Nominal/Usable Capability | 200Ah |
Energy | 2560Wh |

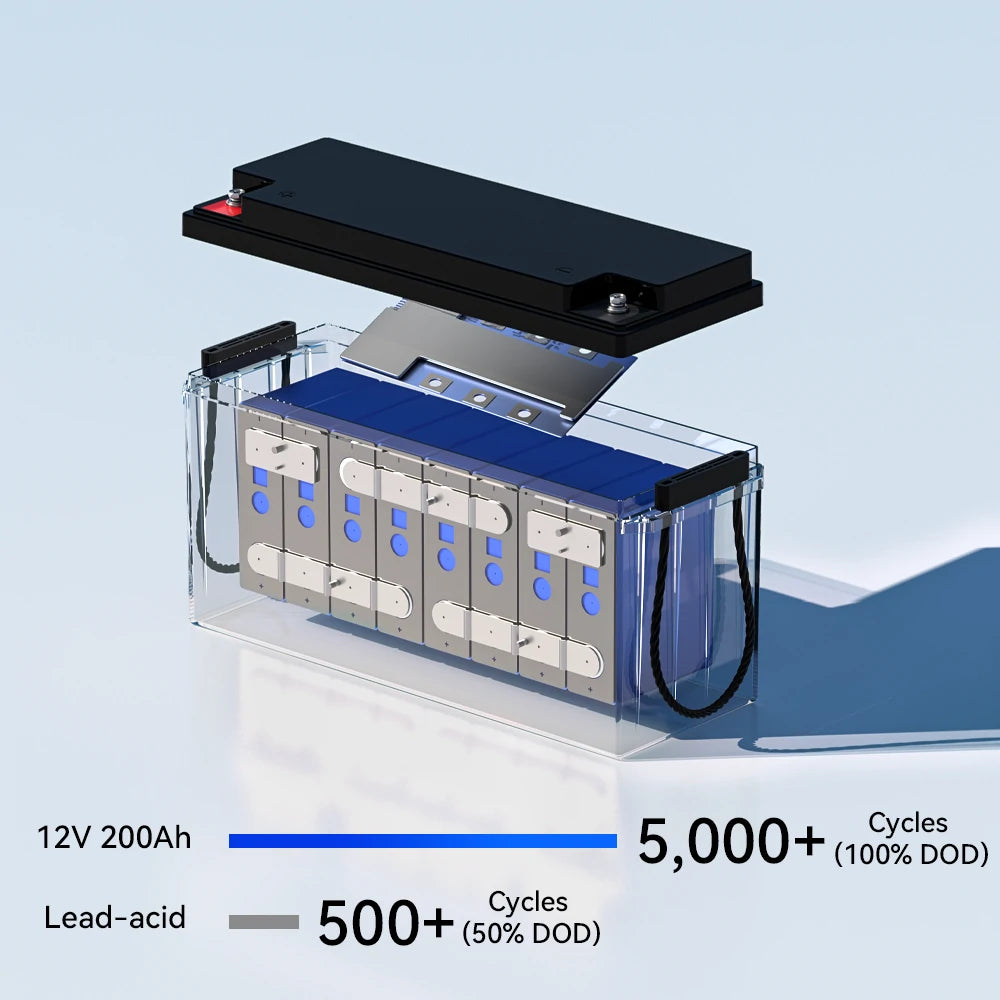

Cycle Life | 5,000 cycles @100% DOD, 6,000 cycles @80% DOD, 15,000 cycles @40% DOD |
Max Depth of Discharge (DOD) | 100% |

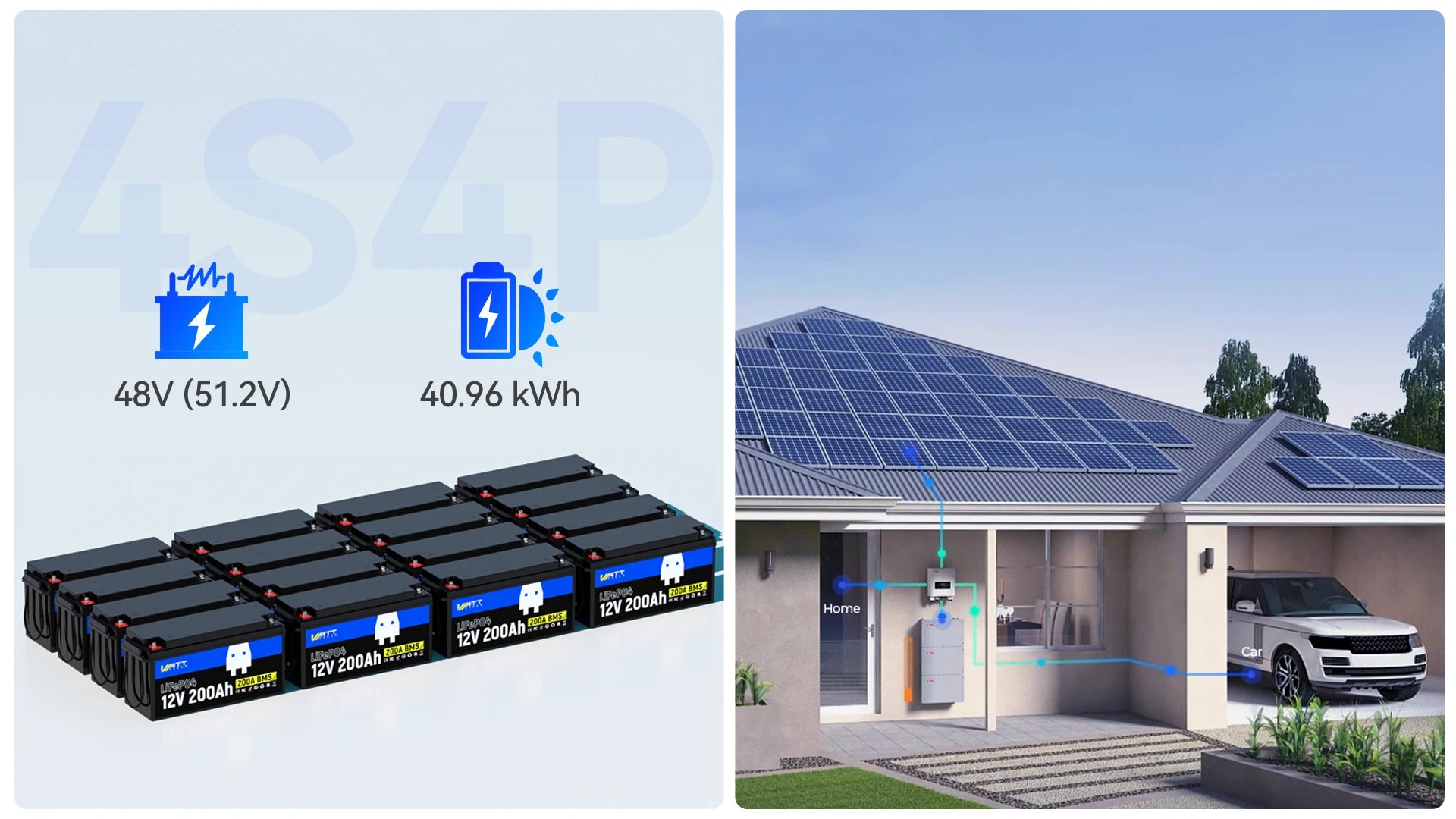

Max. Expansion | 4S4P |
Certifications | SDS/UN38.3/FCC/CE/ROHS/UL |
Internal Resistance | ≤40mΩ |
BMS
BMS | 200A |
Max. Continuous Output Power | 2560W |
Max. Continuous Charge Current | 200A |
Max. Continuous Discharge Current | 200A |
Max. Discharge Current | 300±50A (≤5s) |
CHARGE
Charge Voltage | 14.6V ± 0.2V |
Charge Method | CC/CV |
Recommend Charge Current | 40A (0.2C) |
Charge Temperature | 0℃ to 50℃ / 32℉ to 131℉ |
Discharge Temperature: | -20℃ to 55℃ / -4℉ to 131℉ |
Storage Temperature | 0℃ to 55℃ / 32℉ to 131℉ |
Low-Temperature Protection | Yes (32℉/0℃) |
Low-Temperature Charging Protection Auto Recovery | Yes (41℉/5℃) |
