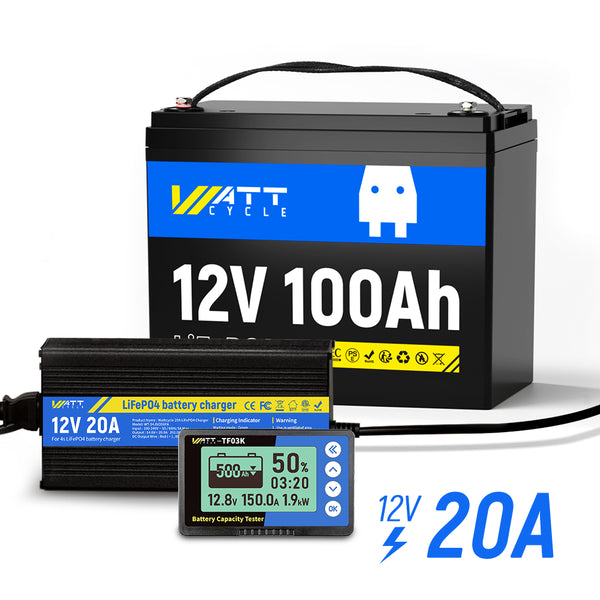

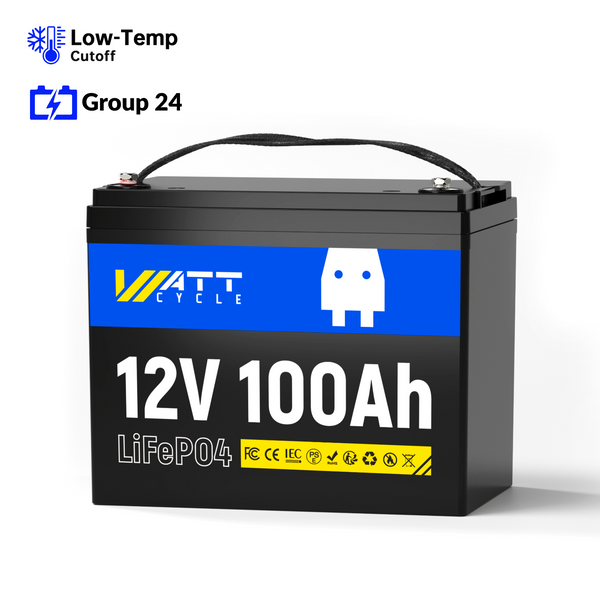

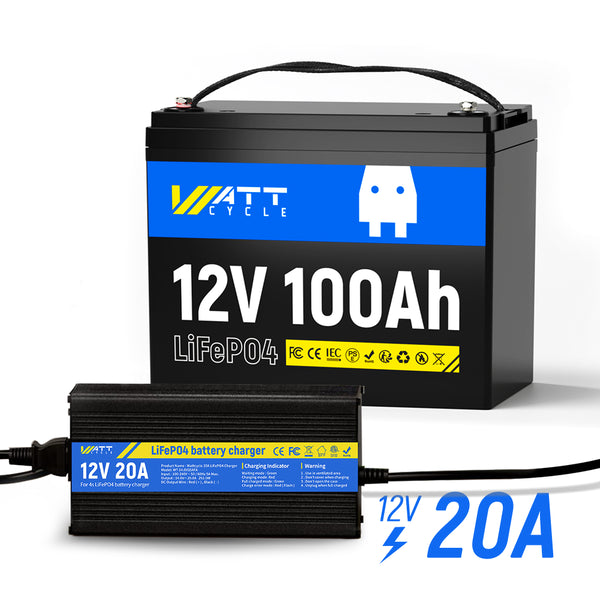

12V 100Ah Group 24 LiFePO4 Battery + 12V 20A Charger
Expected Delivery on - .
IEC/CE-EMC/CE-ROHS/CE-Battery/FCC-SDOC/UD38.3/MSDS/PSE/METI/UL
⚡BCI Group 24 Size: 10.2 x 6.6 x 8.2 in | 23.0 lbs
⚡100Ah of capacity & 1280Wh of energy
⚡Best Value at an average of 0.15$/Wh.
⚡EV Grade-A prismatic cells with 5,000-15,000 DOD and 10+ years battery life.
⚡Low-temperature cut-off protection (triggers below-4℉)

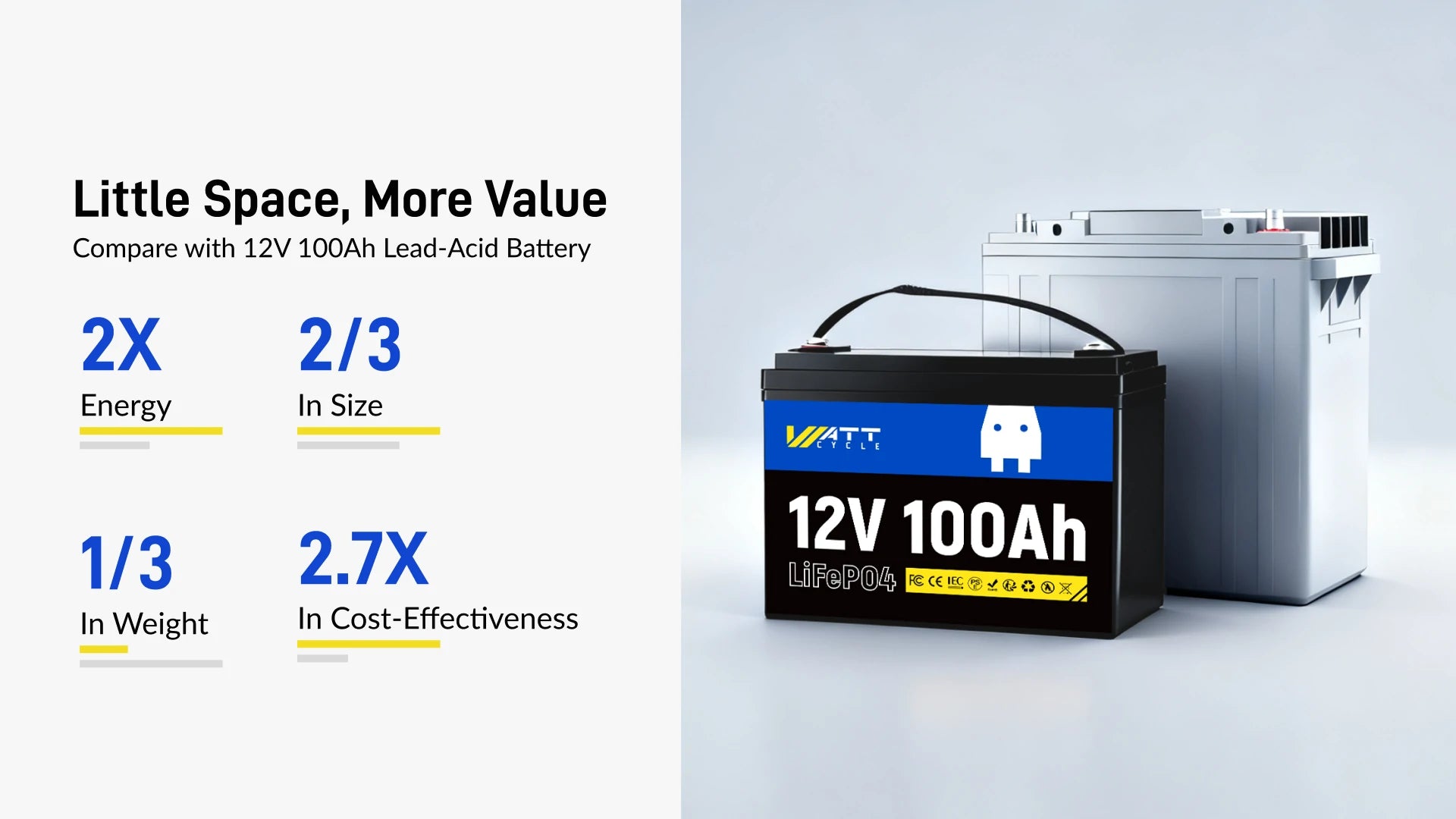

⚡1/3 smaller, 2/3 lighter but 2X usable energy of a 12V 100Ah lead-acid battery.
⚡ABS case for better external protection & built-in metal frame for internal protection.
⚡Max. 4S4P to build a 20.48 kWh power tank.
⚡Ideal for RVs, trolling motors, marine, home storage, off-grid, and golf carts.
Free Shipping & Return
Money back guarantee
Fast & reliable support
Secure payment
- Only Battery - $239.99
- Battery + Charger - $399.99
- Battery + Charger + Monitor - $489.99
12V 100Ah Group 24 LiFePO4 Battery + 12V 20A Charger

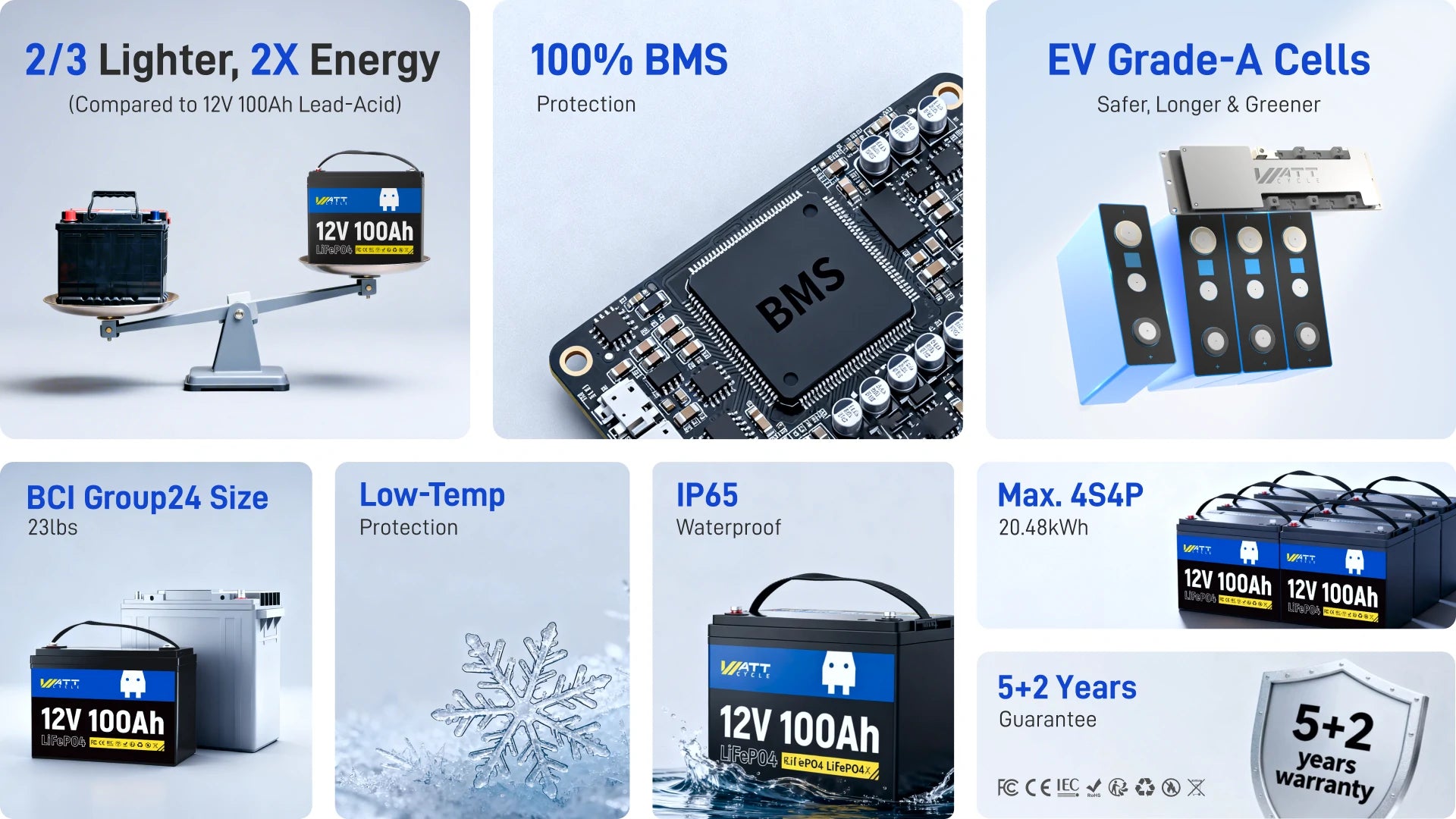

Features
-
Multiple Applications: Ideal for RVs, vans, campers, and also suitable for home storage, off-grid systems, golf carts, trolling motors, and more.
- High Performance: This lithium battery offers a capacity of 100Ah with a standard voltage of 12.8V. Its 100% DOD (Depth of Discharge) guarantees a consistent and steady journey.
- Built-in BMS Protection: Featuring an integrated 100A BMS protection system, the lithium battery automatically disconnects if the discharge current exceeds 300±50A, ensuring optimal safety.

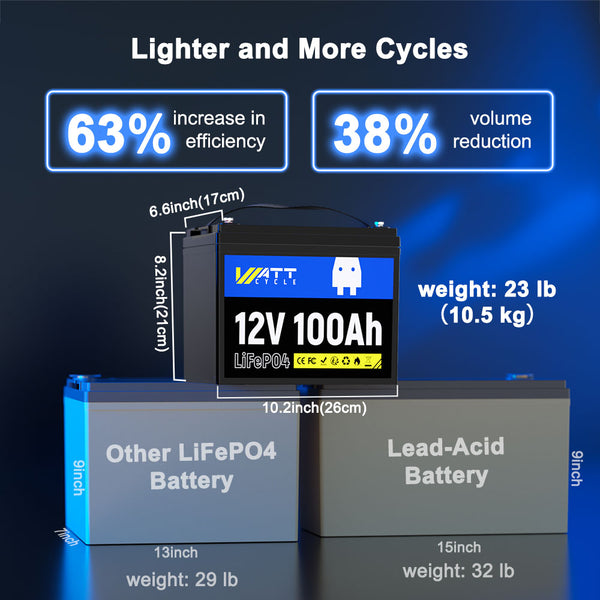

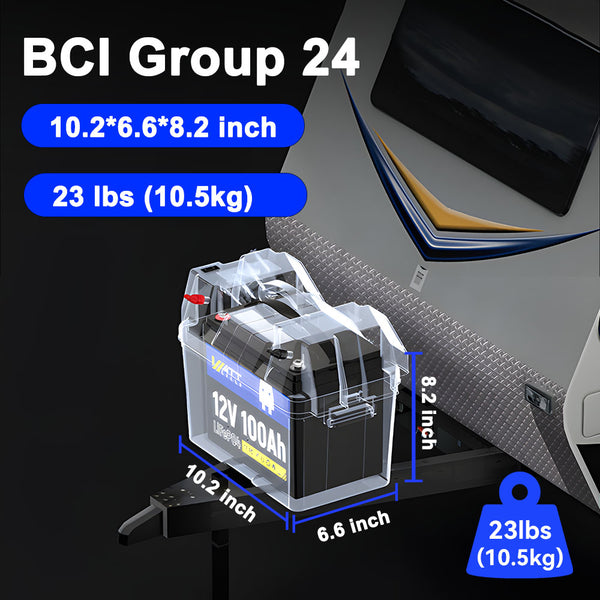

- Drop-in Replacement: Compactly designed at 10.2 x 6.6 x 8.2 inches (26 x 17 x 21 cm) and weighing nearly 2/3 lighter (23.0 lbs / 10.5 kg) than a lead-acid battery, this lithium battery fits seamlessly into a Group 24 battery box, maximizing energy density without requiring a larger box.
- Low Temperature Protection: Engineered to withstand extreme temperatures, the lithium battery operates efficiently in conditions as low as -4℉ (-20℃) and as high as 158℉ (70℃), adapting seamlessly to various climates.
- Series or Parallel Connection: Easily connect up to 4 batteries in series or 4 packs in parallel, achieving a remarkable capacity of up to 20.48kWh. Customize the connection to suit your needs.
- Waterproof: With IP65-rated waterproof protection, this lithium battery ensures reliable performance in wet and challenging environments, making it ideal for outdoor and marine applications.
- Automotive Grade A+ Cells Only: Supporting up to 5,000 cycles at 100% DOD, these cells come with multiple safety certifications and built-in overcharge, over-discharge, overcurrent, and short-circuit protection to ensure safety in various conditions.
- 3 Charging Methods: Charges up to 5 times faster than a lead-acid battery. (WattCycle LiFePO4 battery charger, solar panel, or generator)
- Registration for Extended Warranty: The battery comes with a default 5-year warranty, which can be extended to 7 years with registration on the official website.
Tech Specs
General
| Dimensions (Inches) | 10.2 (L) x 6.6 (W) x 8.2 (H) |
| Weight | 23.0lbs / 10.5kg |
| Waterproof Rating | IP65 |
| Warranty | 7 years |
| Housing Material | ABS (Flame Retardant Plastic) |
| Terminal | M8 bolts |
Battery
| Cell | EV Grade A+ LiFePO4 Cells |
| Nominal Voltage | 12.8V |
| Nominal/Usable Capability | 100Ah |
| Energy | 1280Wh |
| Cycle Life | 5,000+ cycles @100% DOD, 6,000+ cycles @80% DOD, 15,000+ cycles @40% DOD |
| Max Depth of Discharge (DOD) | 100% |
| Max. Expansion | 4S4P |
| Internal Resistance | ≤40mΩ |
BMS
| BMS | 100A |
| Max. Continuous Output Power | 1280W |
| Max. Continuous Charge Current | 100A |
| Max. Continuous Discharge Current | 100A |
| Max. Discharge Current | 300±50A (≤5s) |
Charge Specs
| Charge Voltage | 14.4V ± 0.2V |
| Charge Method | CC / CV |
| Recommend Charge Current | 20A (0.2C) |
| Charge Temperature | 0℃ to 50℃ / 32℉ to 122℉ |
| Discharge Temperature： | -20℃ to 70℃ / -4℉ to 158℉ |
| Storage Temperature | -10℃ to 50℃ / 14℉ to 122℉ |
| Low-Temperature Protection | Yes (32℉/0℃) |
| Low-Temperature Charging Protection Auto Recovery | Yes (41℉/5℃) |
Comparison
| Version |  |
 |
| Size | 9.0 x 5.6 x 8.2 in | 10.2 x 6.6 x 8.2 in (Group 24) |
| Weight | 20.8 lbs | 23.0 lbs |
| Nominal Voltage | 12.8V | 12.8V |
| Energy | 1280Wh | 1280Wh |
| BMS | 100A | 100A |
| Bluetooth | √ | × |
| Low-tem Protection | √ | √ |
| Shop now | Shop now |
User Manual
Reviews
Make a Huge Difference
Built with durability, Wattcycle 12V 100Ah LiFePO4 battery provides you with the most satisfactory energy solution. Small size, light weight and huge energy. Not only that, Wattcycle only uses EV A-grade batteries, which have a longer lifespan, up to 15,000 cycles, supporting 10+ years easily.
Super high quality, super performance, and super good service make Wattcycle easily make huge differences.
Thoroughly Upgrade——Farewell to Lead Acid
Lead-acid batteries are bulky, large and short-lived, and can only release 50% energy. It's time to say goodbye to outdated lead-acid batteries. Wattcycle lithium iron phosphate battery can be upgraded in all aspects, with safety, environmental protection, long service life and high energy. One upgrade can be used for 10+ years, and the more you use it, the more you save money.

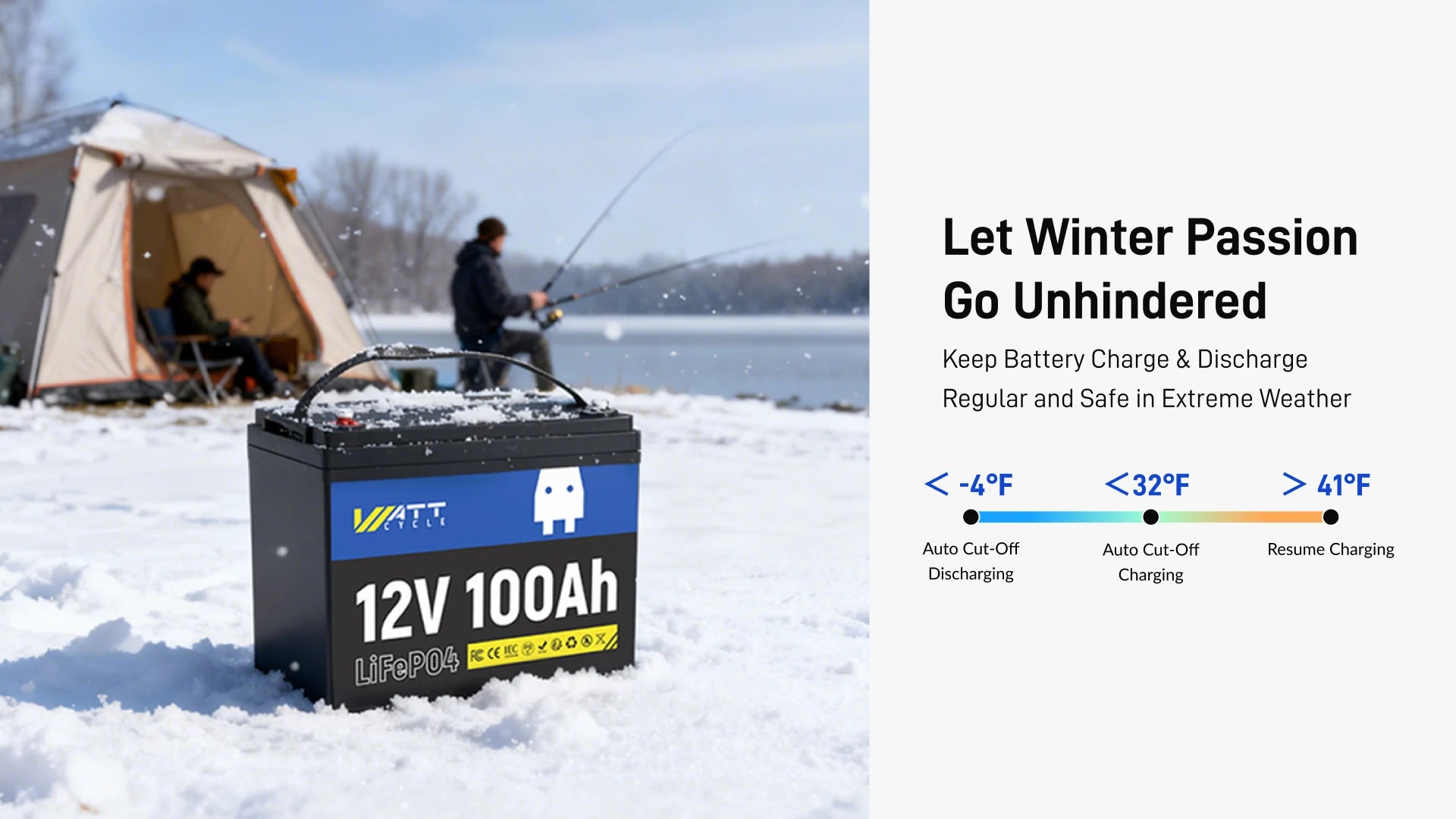

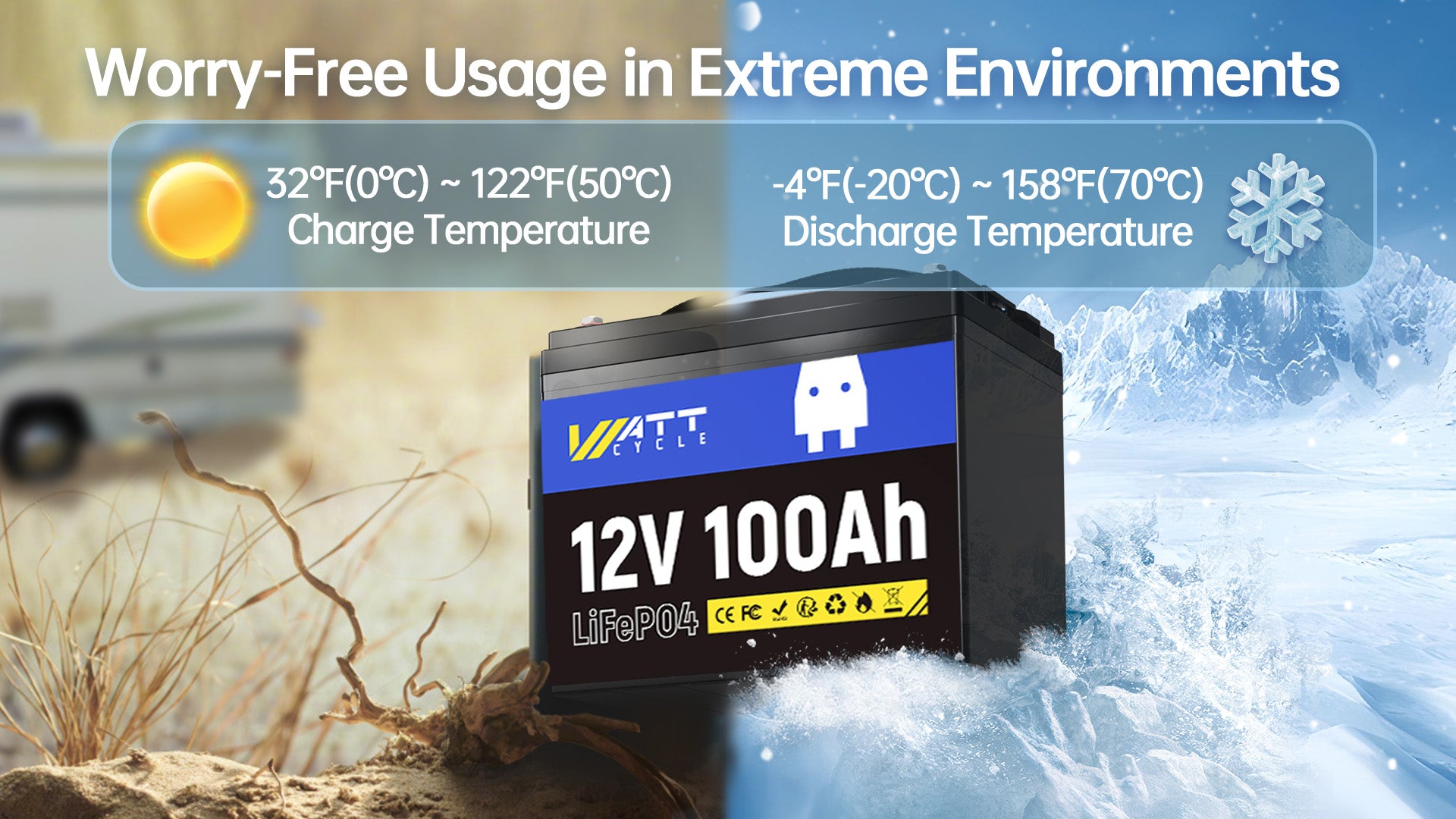

Power the Winter Passion
Afraid that extreme weather will hinder the normal charging and discharging of batteries? Worried that the battery can't guarantee safety in bad weather? Wattcycle lithium battery provides the ultimate solution. It can keep discharging at -4℉ to 158℉ and charge normally at 32℉ to 122℉. Out of ranges, it can automatically stop charging and discharging to ensure battery safety.

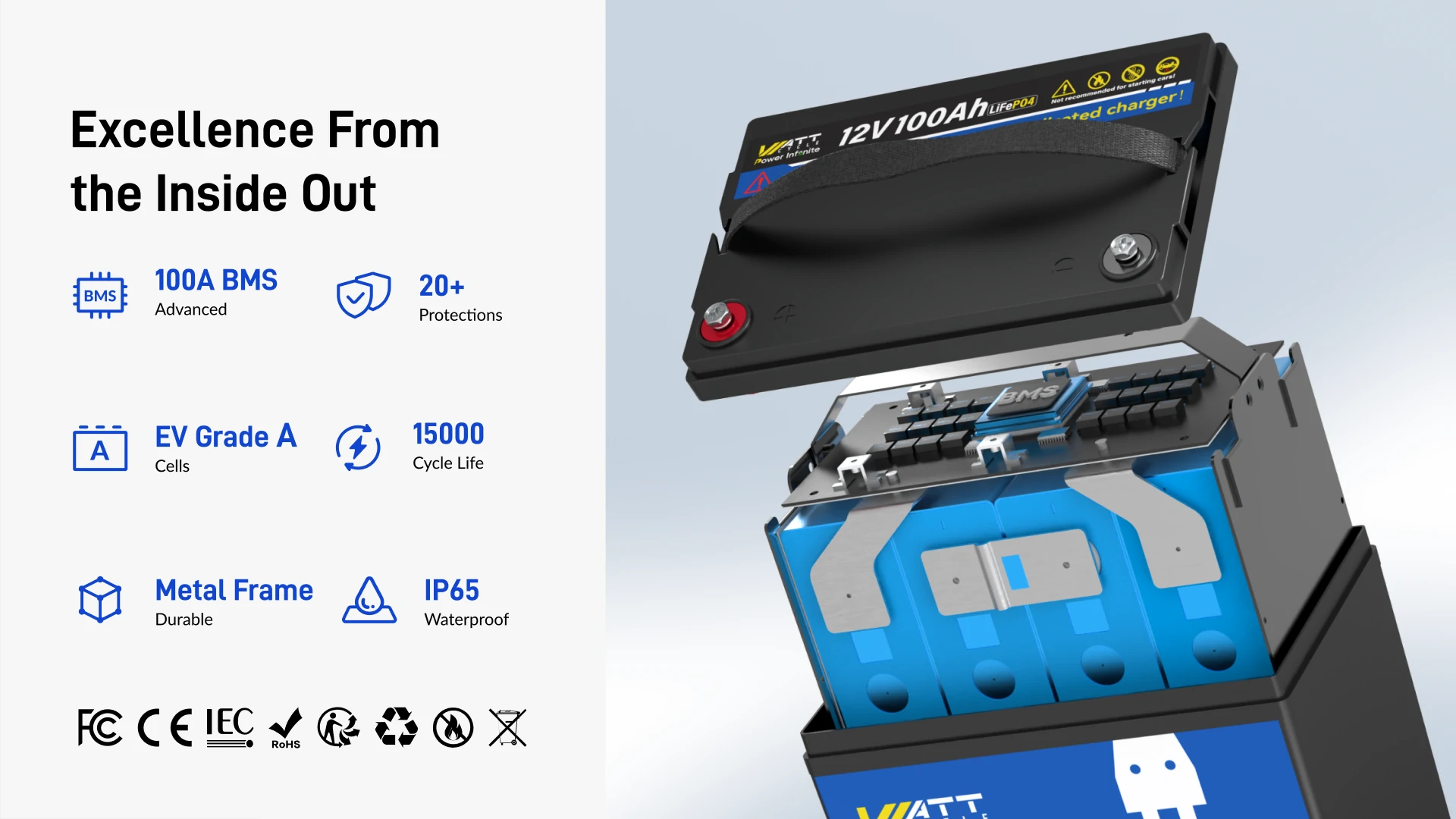

Excellence From the Inside Out
Wattcycle LiFePO4 lithium battery is committed to creating the best quality batteries to solve users' deep needs. Excellent performance inside and out, the outer shell is waterproof and shockproof, the internal metal frame improves stability, 100A BMS 100% guarantees battery safety, and high-quality cells ensure excellent performance and ultra-long life.

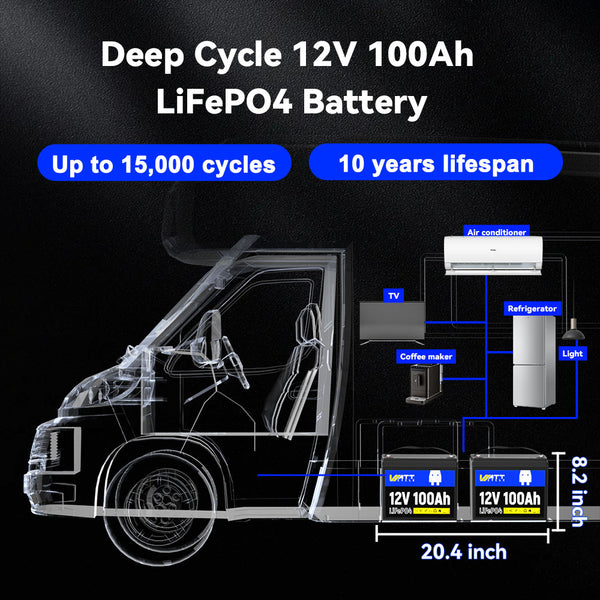

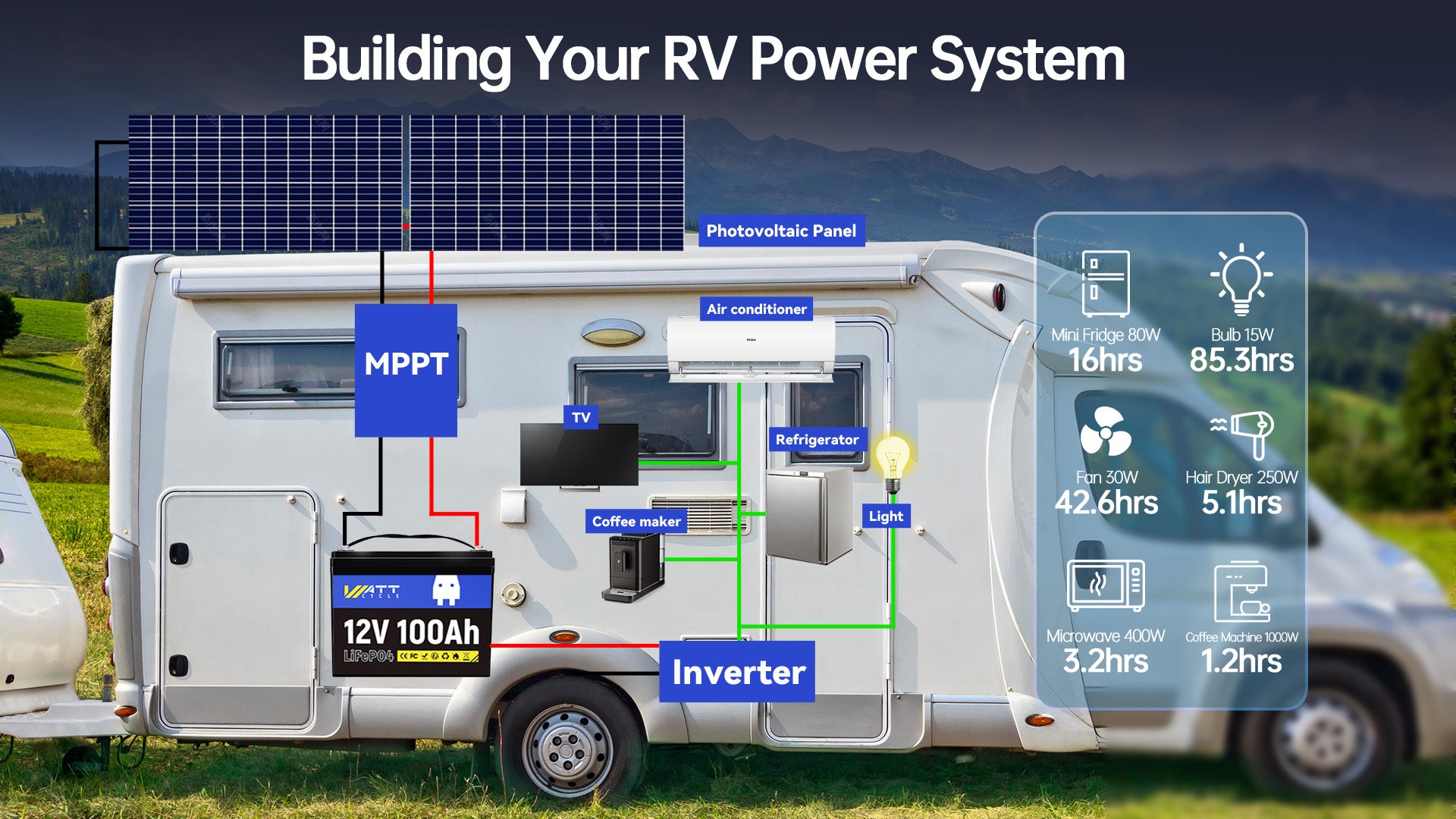

Happy Camper——Never Low Battery Alert
One piece can provide 1280Wh of energy, which can easily meet the power supply for RV travel. Supporting the maximum 1C discharge rate, Wattcycle RV battery features fast charging to realize uninterrupted power supply.

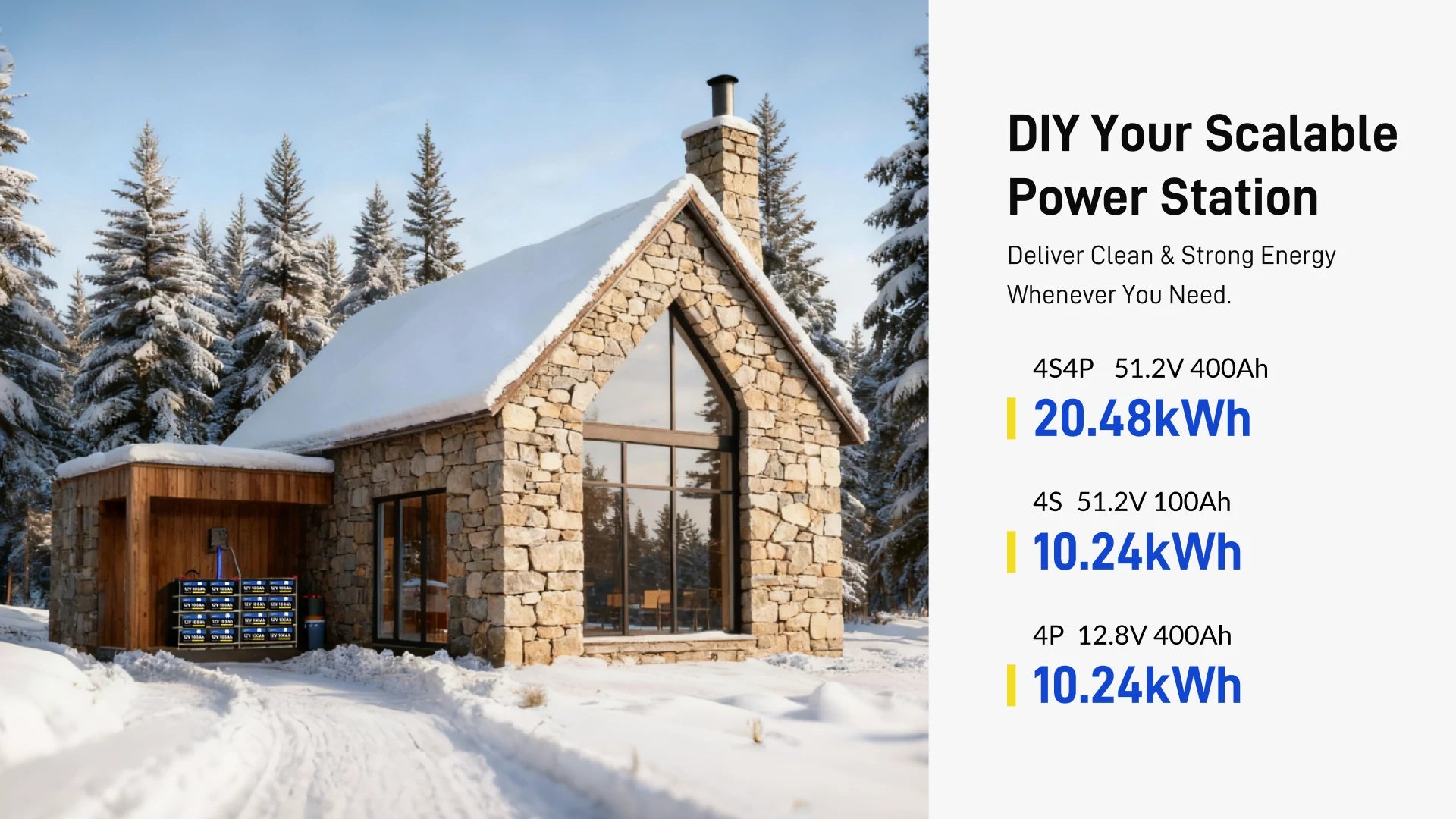

Go For Days Without Worring About Recharging
Customize your energy bank. You can freely build the required battery system according to your needs.
Handle Better, Hops on Pad Really Quick
Wattcycle group 24 battery greatly improves the performance of your trolling motor and brings you unlimited outdoor fun. Smaller size and lighter weight save you more space, reduce the weight of the boat and improving its flexibility. It is 2X that of the same capacity lead-acid battery, allowing your boat to travel farther.

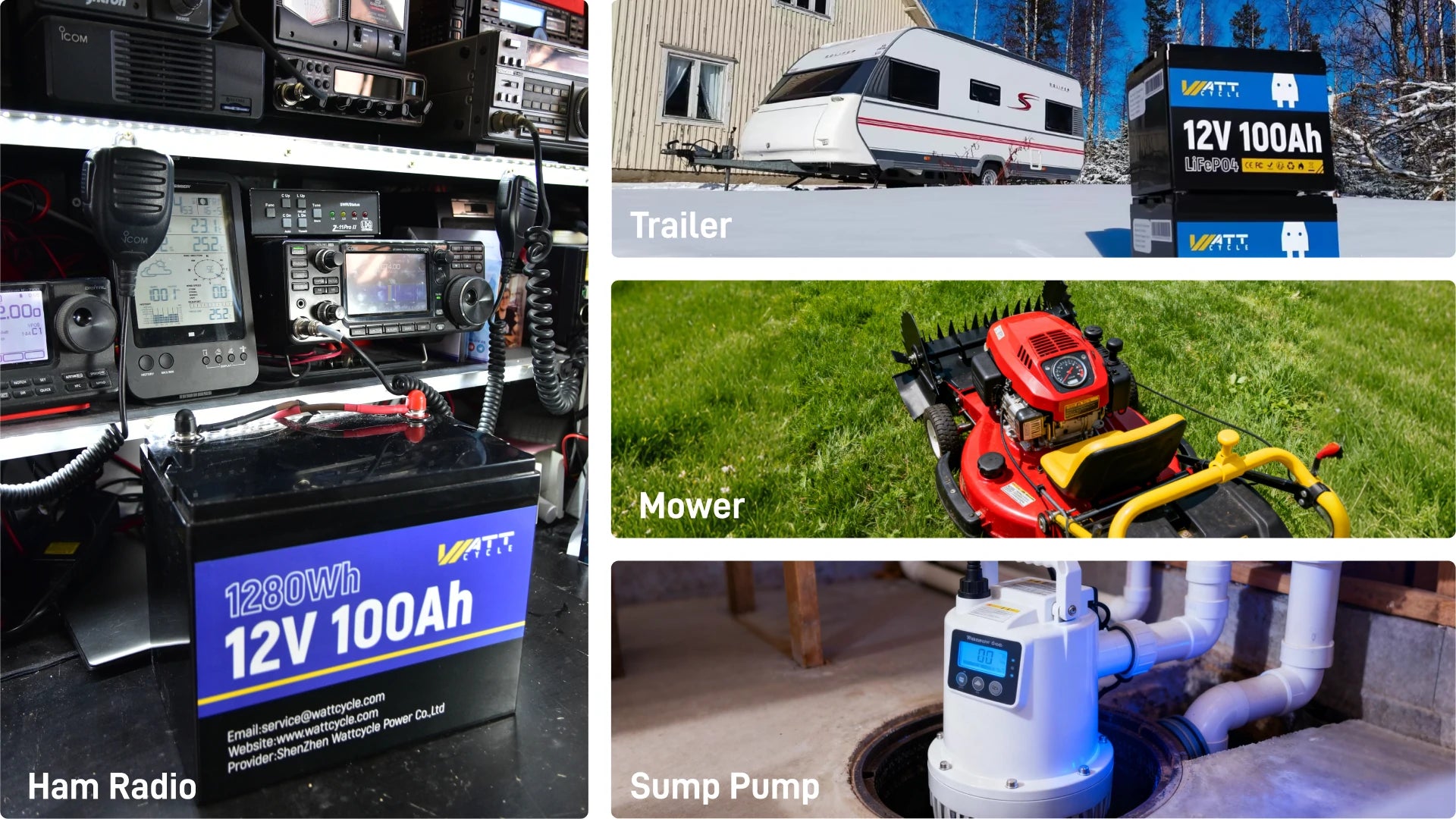

Various Applications
Wattcycle lithium battery can be your ultimate energy solution. Designed for solar energy, it saves money and is environmentally friendly for home storage and off-grid life. Improve the performance and mileage of trolling motors. It can be easily used in RV and camping for days and also suitable for other application scenarios....
