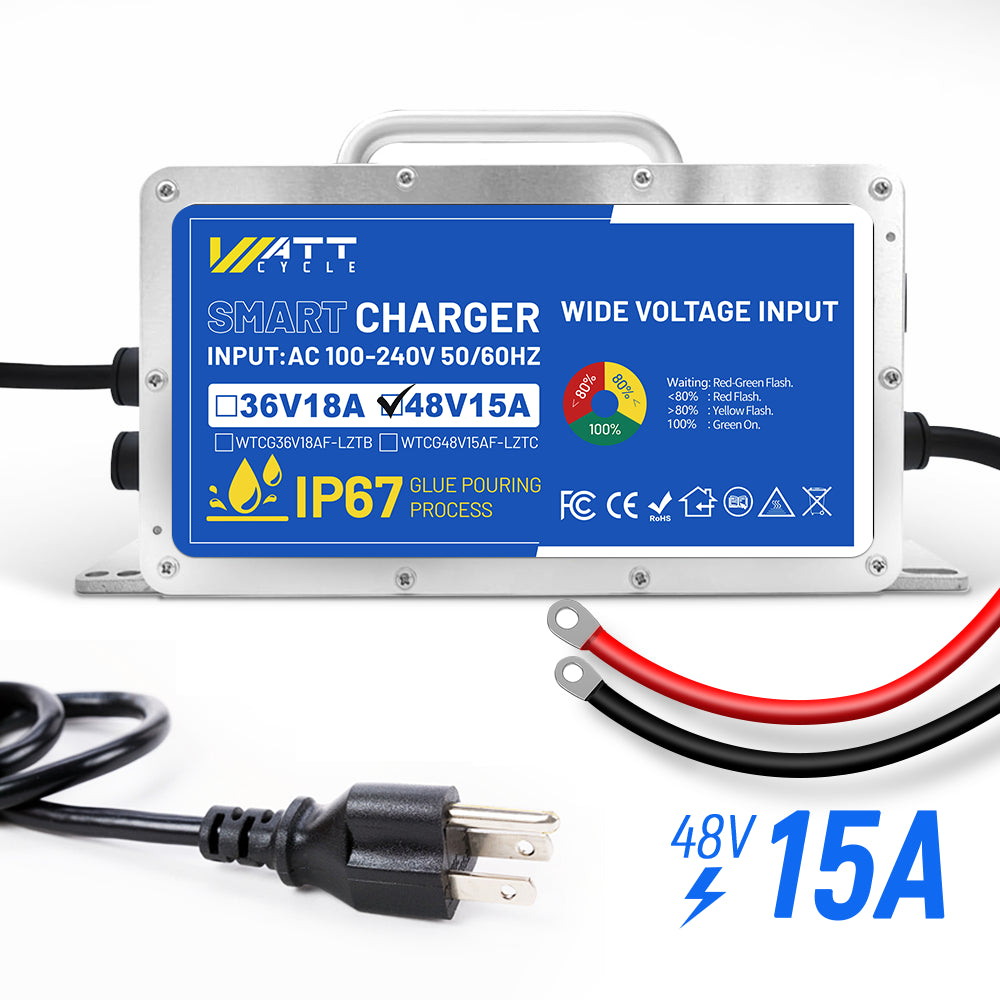

48V (58.4V) 15A Aluminum Shell LiFePO4 Battery Charger
Expected Delivery on - .

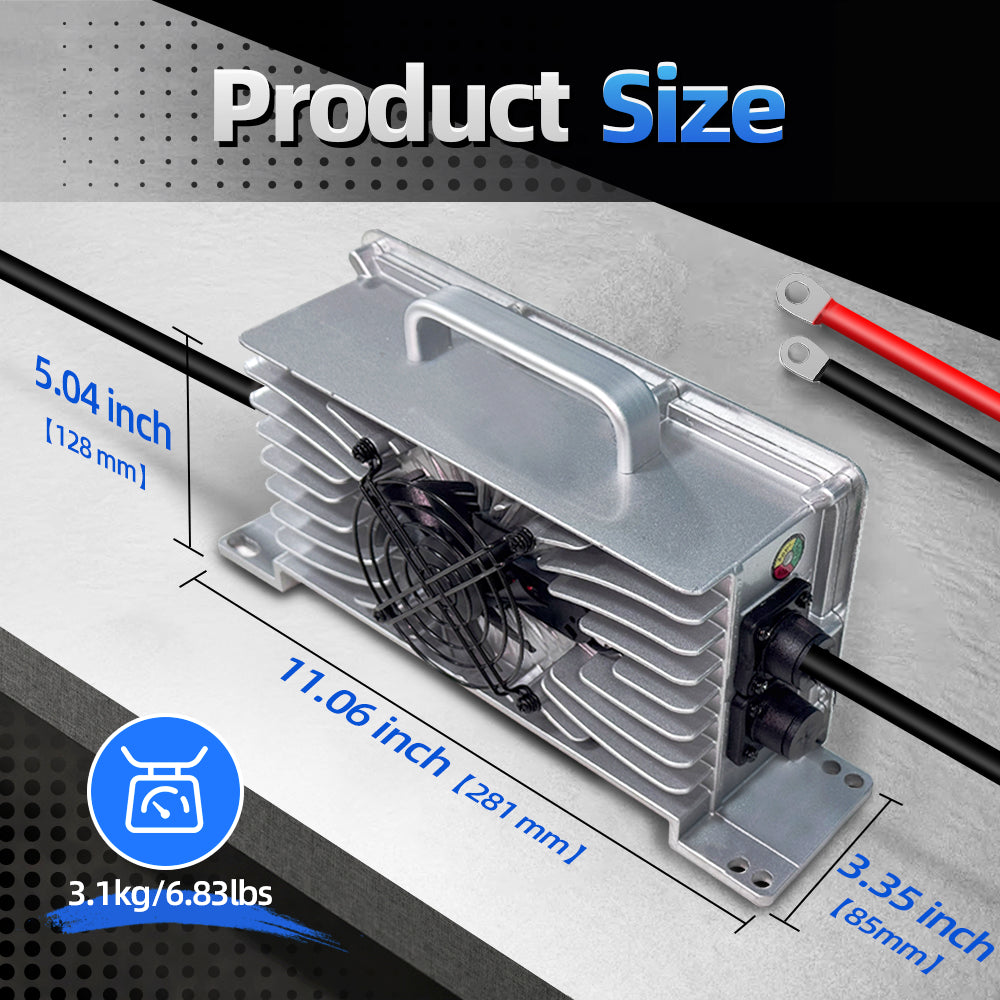

⚡Compact & Design: 6.65 x 4.17 x 4.34 in | 6.94 lbs
⚡4X Protection: Over voltage / Over temperature / Short circuit / Reverse polarity connection Protection
⚡3 Charging Modes for efficiency and longevity
⚡Wall Mountable and convenient installation
Free Shipping & Return
Money back guarantee
Fast & reliable support
Secure payment
48V (58.4V) 15A Aluminum Shell LiFePO4 Battery Charger
Features
- Before charging, carefully review the battery's user manual to ensure its compatibility with the charger's technical specifications.
- Ensure that the charger's positive and negative terminals are correctly connected to the corresponding terminals of the battery (positive to positive, negative to negative).
- During the charging process, ensure that the input/output connectors are securely attached.
- lf any abnormalities or damage to the charger or battery are noticed during the charging process, immediately disconnect the input/output cables.
- If using alternative input cables, ensure that the cable can handle the charger's maximum input current and that the charger's input voltage is within its operating range.
- lf an extension for the output connection is needed, ensure that the connection cable can handle the charger's maximum output current, and the voltage drop between the charger and the battery connection should be kept as low as possible. ideally less than 1% of the battery voltage, Otherwise, it may affect the charging effectiveness.
- The internal voltage of the charger is high and poses a significant risk .In case of any defects, please contact service@wattcycle.com promptly. Users and non-professional repair personnel are prohibited from disassembling or modifying this product without authorization.
- Do not use the charger during thunderstorms or lightning storms.
- Keep the charger body dry and avoid using it in damp or rainy environments.
- Avoid using the charger in direct sunlight or near heat sources.
- Do not use the charger in or near flammable or explosive gas areas.
- Use the charger in a well-ventilated and dust-free area.
- Do not cover the ventilation ports and leave at least 10 centimeters of space around them.
- Avoid shaking, impacting or throwing the charger with force.
Tech Specs
| Brand | WattCycle |
| Model | 48V15A |
| Input Voltage | 100-240Vac50/60Hz |
| Output Voltage | 58.4V |
| Output Current | 15A |
| Product Size (Inches) | 6.65 x 4.17 x 4.34 inch |
| Net Weight | 6.94lbs / 3.15kg |
| Relative Humidity | 5%~95% |
| Atmospheric Pressure | 70KPa to 106KPa |
| Temperature Range | In operation: -10°C to 45°C/14°F to 113°F In storage: -40°C to 75°C/-40°F to 167°F |
Charge Mode
| Waiting Mode | 🟢(Flashing) |
| Charging (<80%) | 🔴(Flashing) |
| Charging (>80%) | 🟡(Flashing) |
| Charging Completed | 🟢(Always On Green) |
Reviews
Customer Reviews
I haven't had the battery long enough to see battery full potential and charging times. Soon though.
User Manual

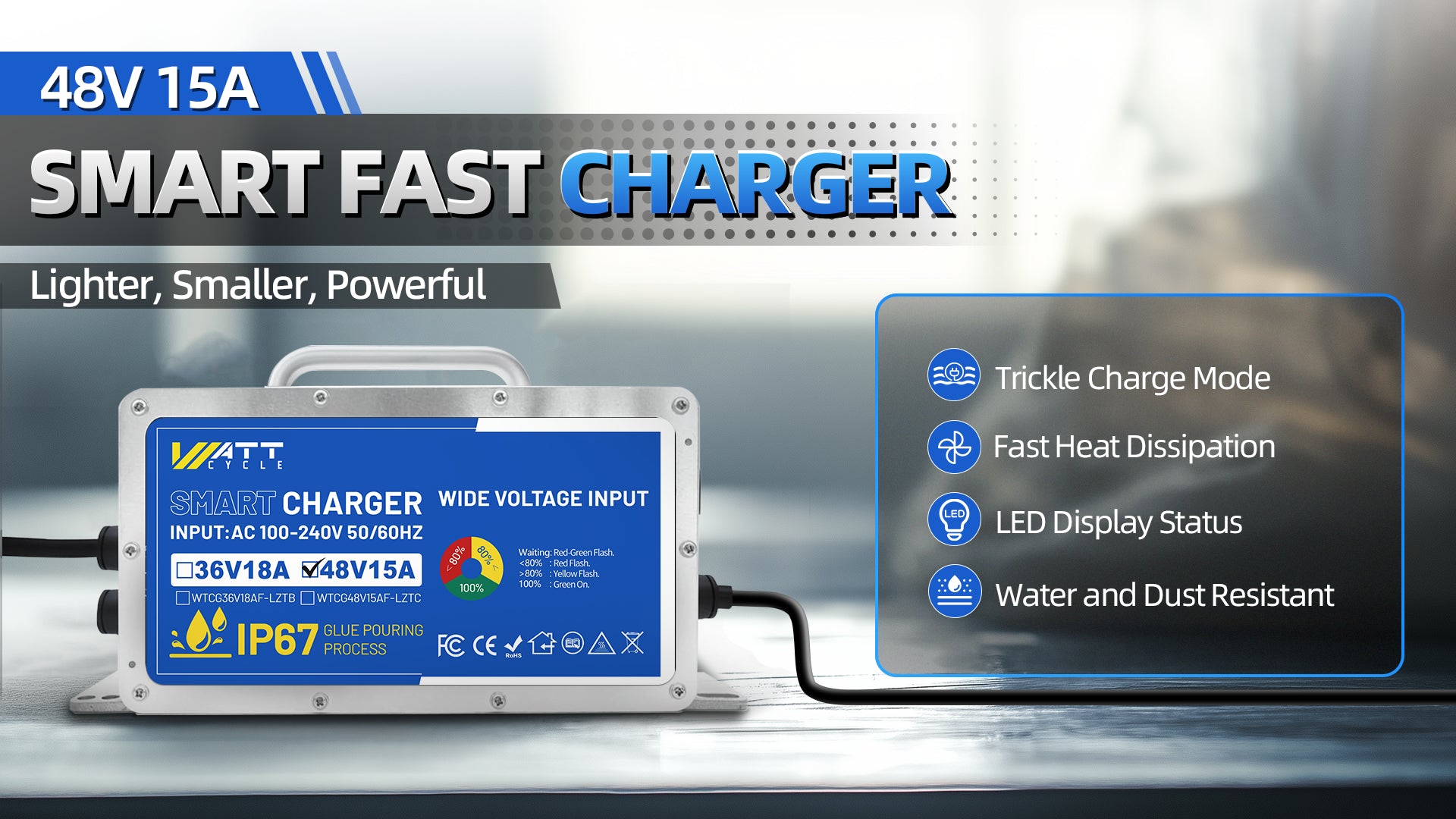

Smart & Fast Charging
Designed for LiFePO4 batteries, this smart charger offers fast and efficient charging with a wide voltage input. Perfect for a variety of applications, it ensures reliable performance every time.
Fast Charging with Superior Heat Dissipation
Experience fast and efficient charging with this lightweight, compact charger. Featuring trickle charge mode and excellent heat dissipation, it’s designed for high performance and durability.

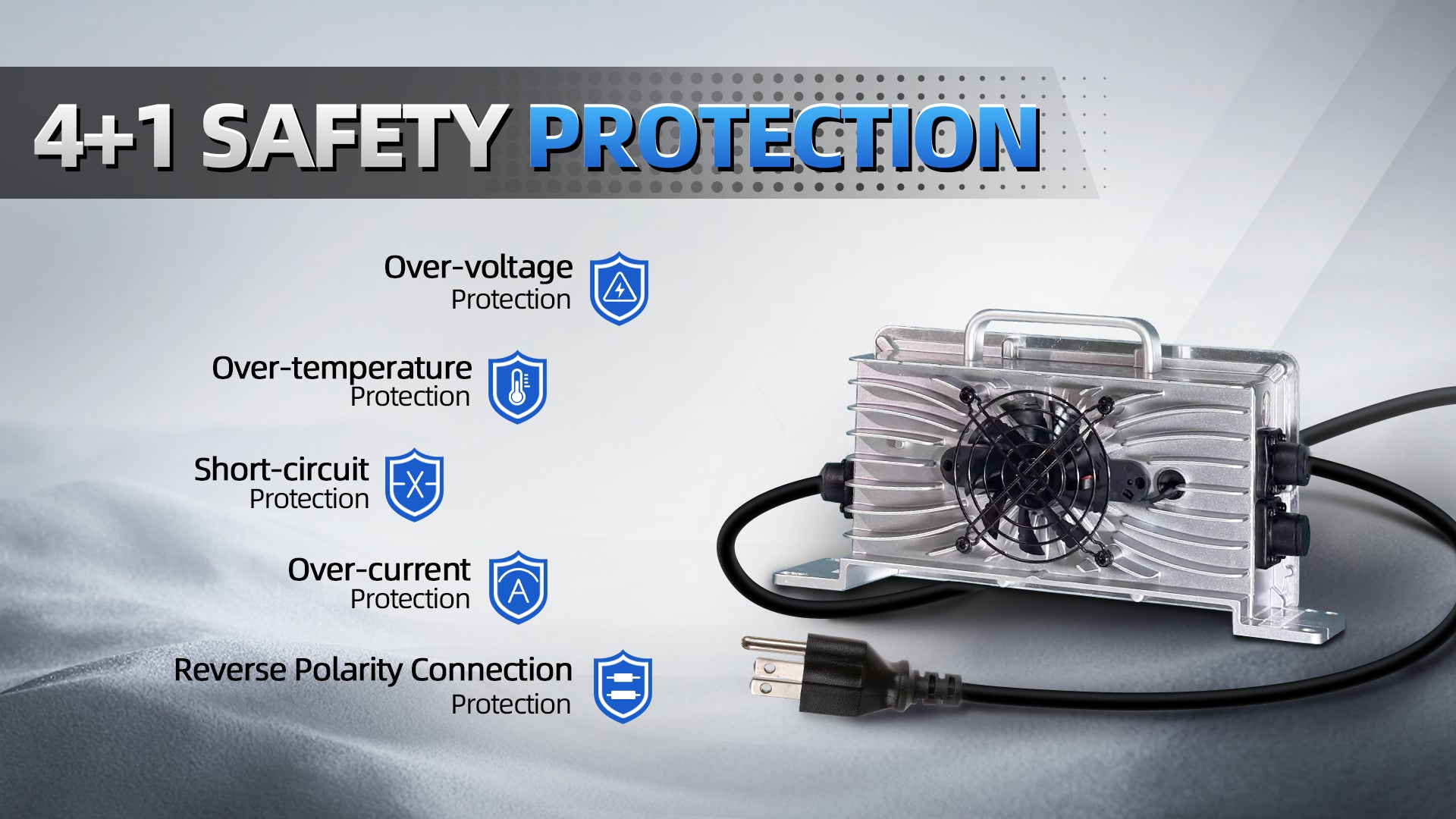

Advanced Safety Protections for Peace of Mind
Equipped with 4+1 safety protections, including over-voltage, over-temperature, short-circuit, over-current, and reverse polarity protection, this charger ensures safe and reliable operation.

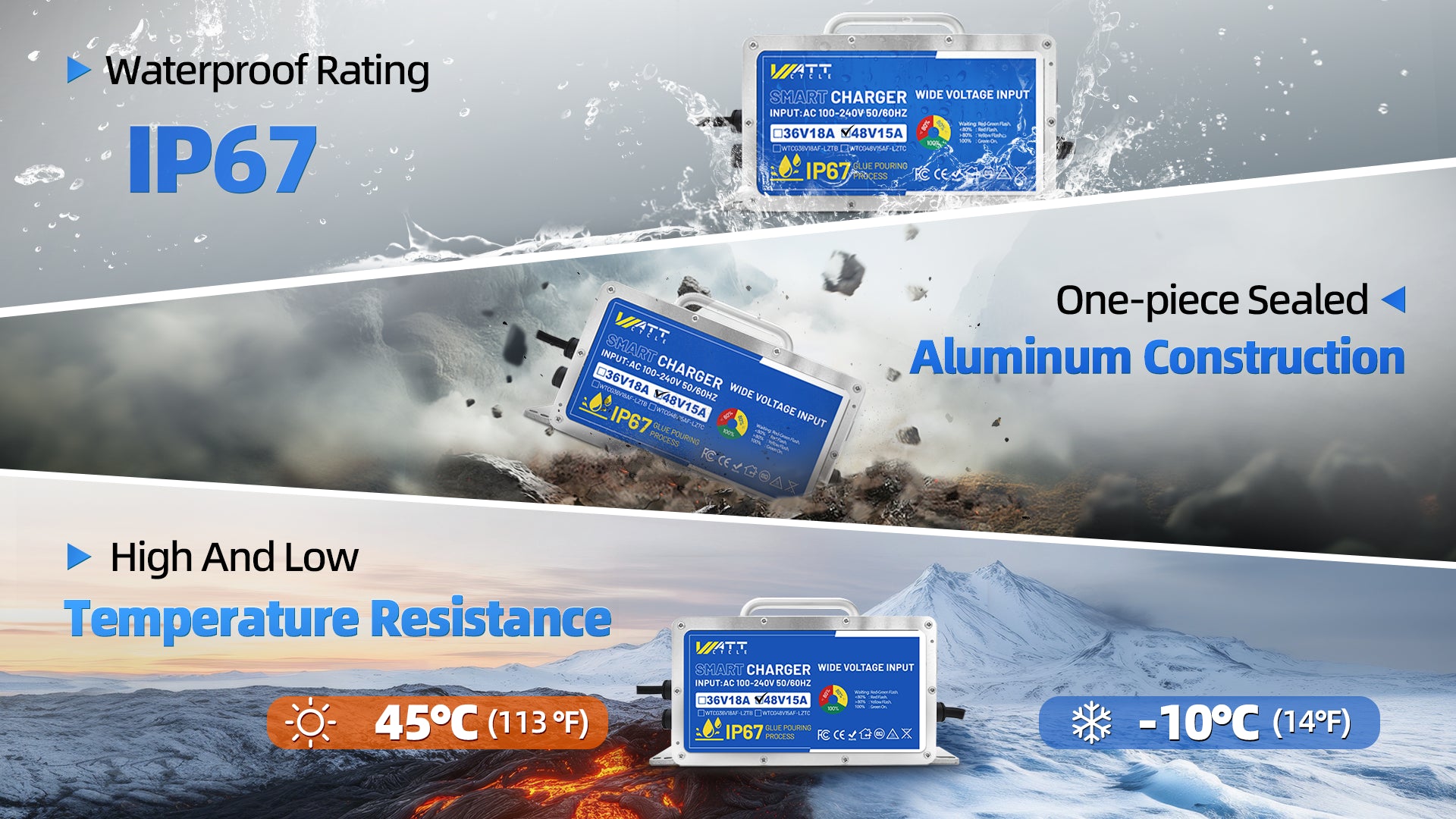

Rugged & Reliable – Built to Last
Constructed with one-piece sealed aluminum, this charger is waterproof (IP67) and resistant to high and low temperatures (-10°C to 45°C). Perfect for demanding environments.

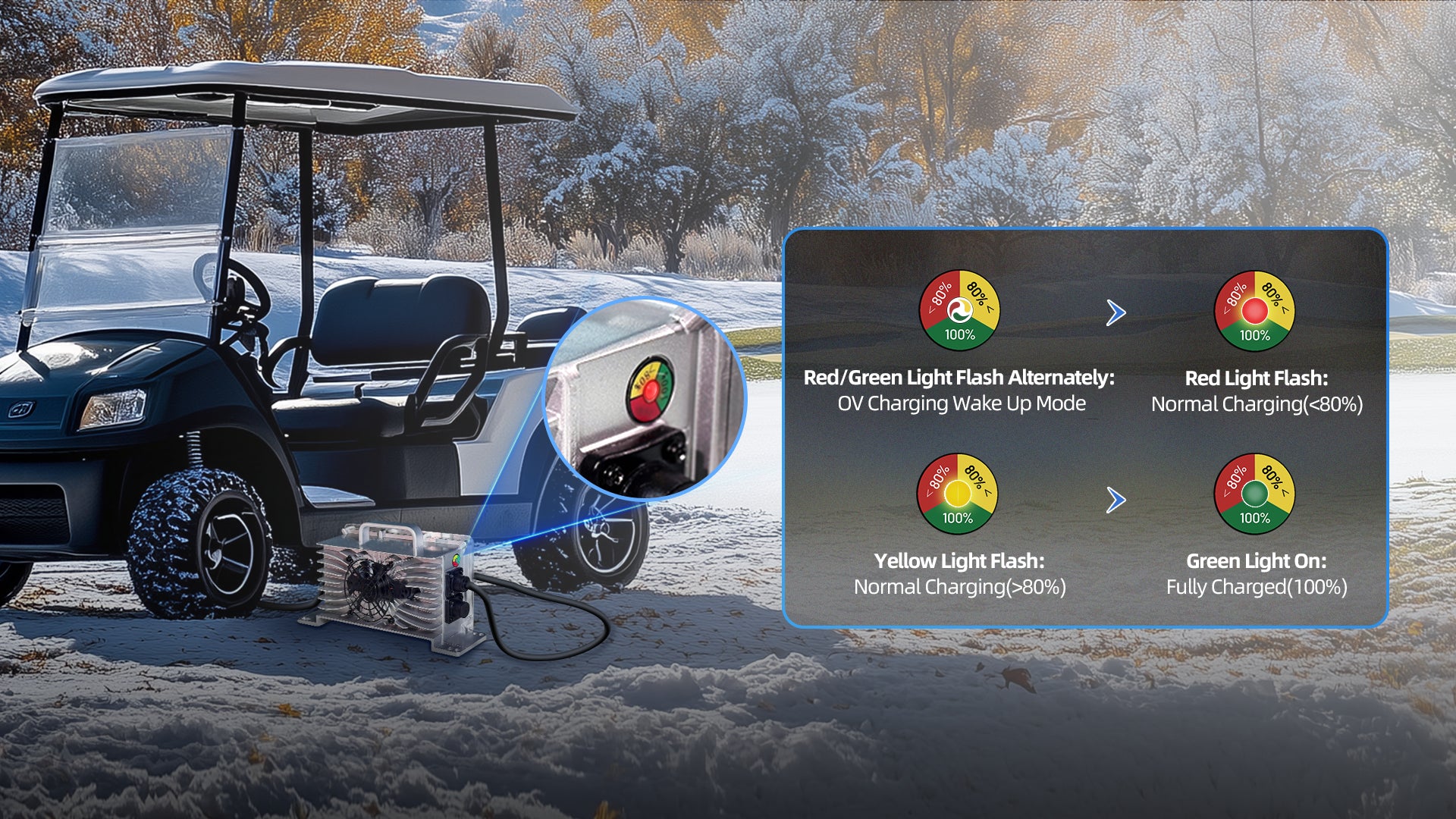

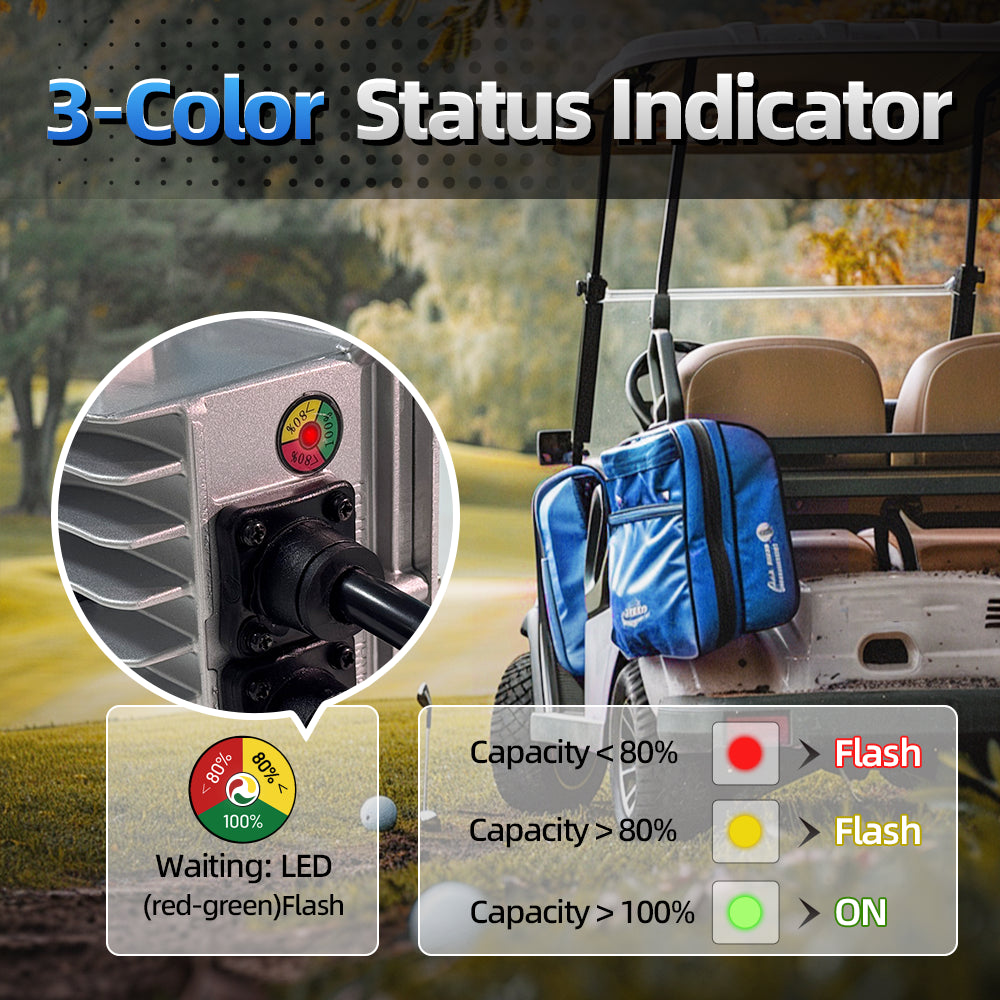

Intuitive LED Display for Real-Time Charging Status
Stay informed with clear LED indicators: red/green flashing for wake-up mode, red flashing for normal charging (<80%), yellow flashing for normal charging (>80%), and green for fully charged (100%).
Built for All Environments – Waterproof & Durable
With an IP67 waterproof rating, this charger is built to withstand sunny, dusty, rainy, and wet conditions. Ideal for use in diverse environments, it delivers consistent performance wherever you need it.
