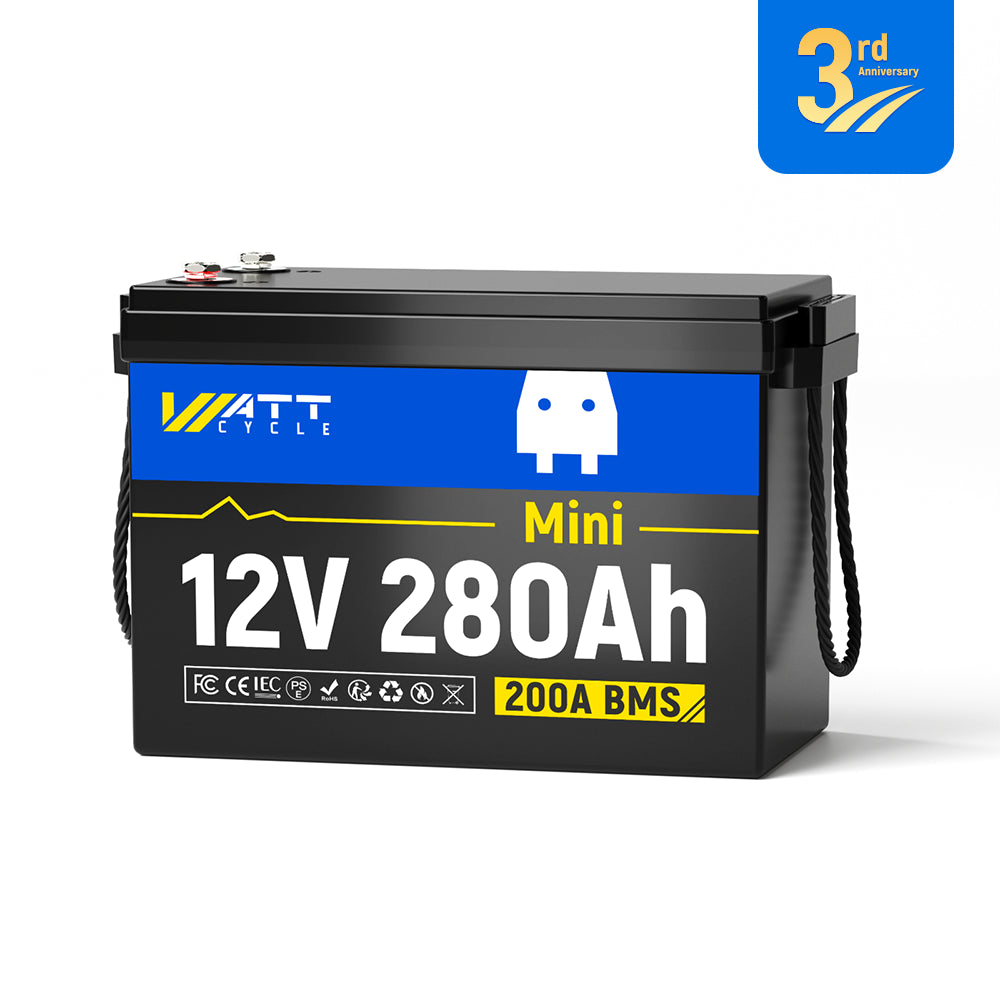

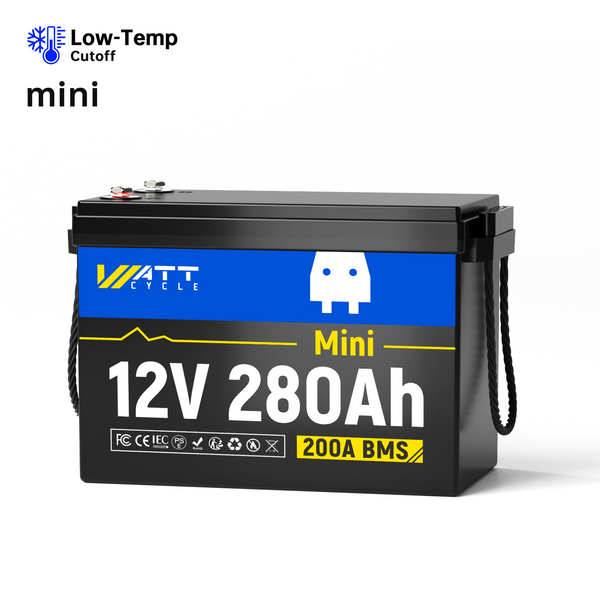

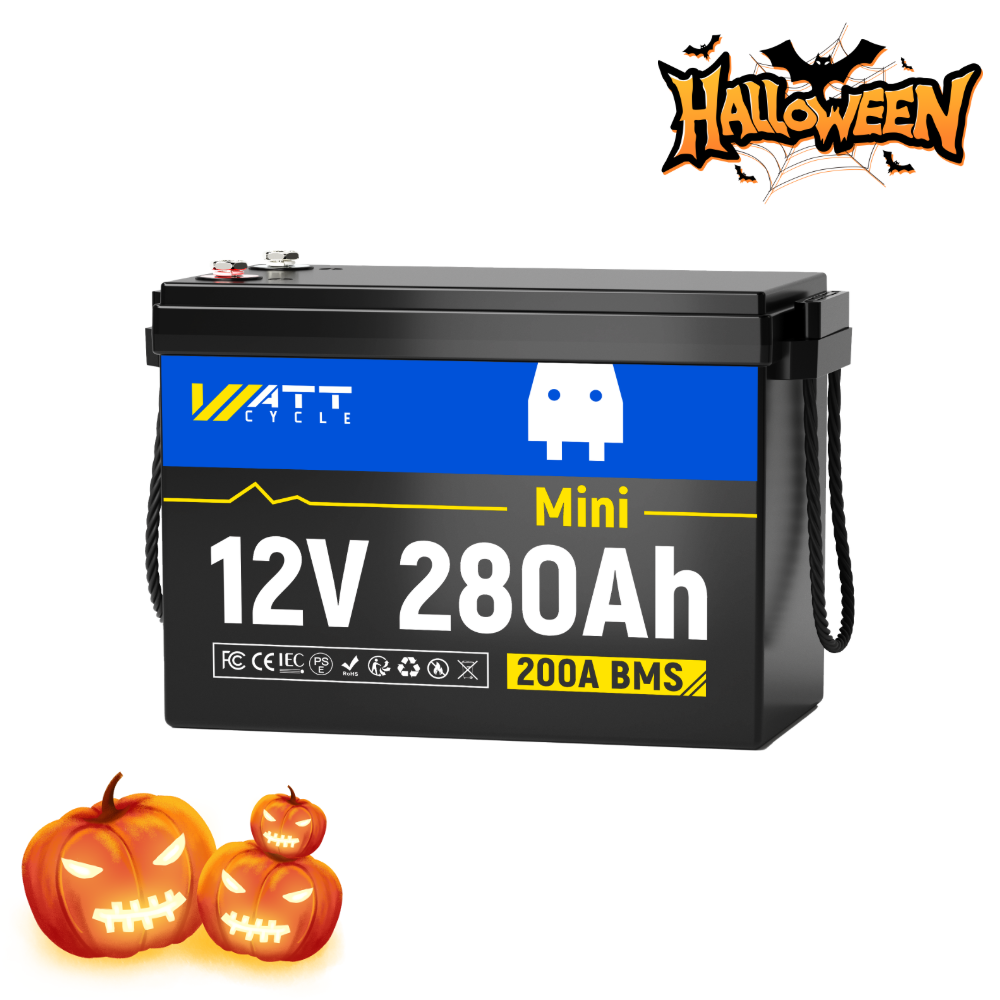

【👑3rd Anniversary】12V 280Ah Mini LiFePO4 Battery
【👑3rd Anniversary】12V 280Ah Mini LiFePO4 Battery
- New Customer Price: $620.40/PACK
Pre-purchase Note:
- The front label of this battery reads "12V 300Ah Mini", but the nominal capacity is 280Ah.
- The tested capacity of individual battery cell is 300Ah+.
- Over Current Protection:
- Standard Version: 600A (1.2s）

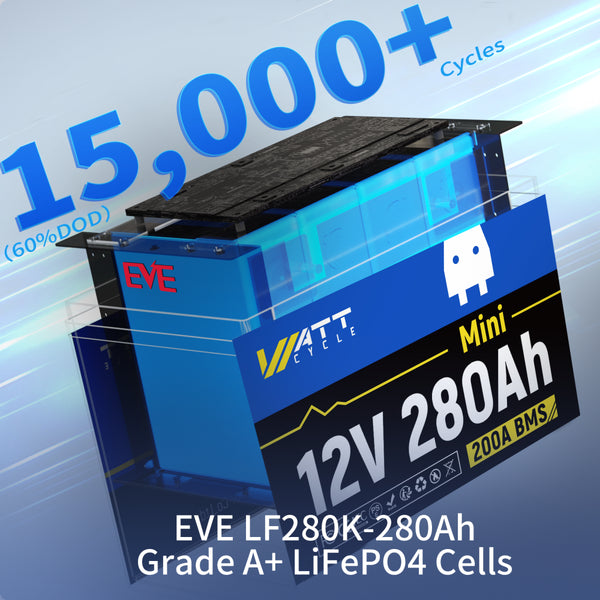

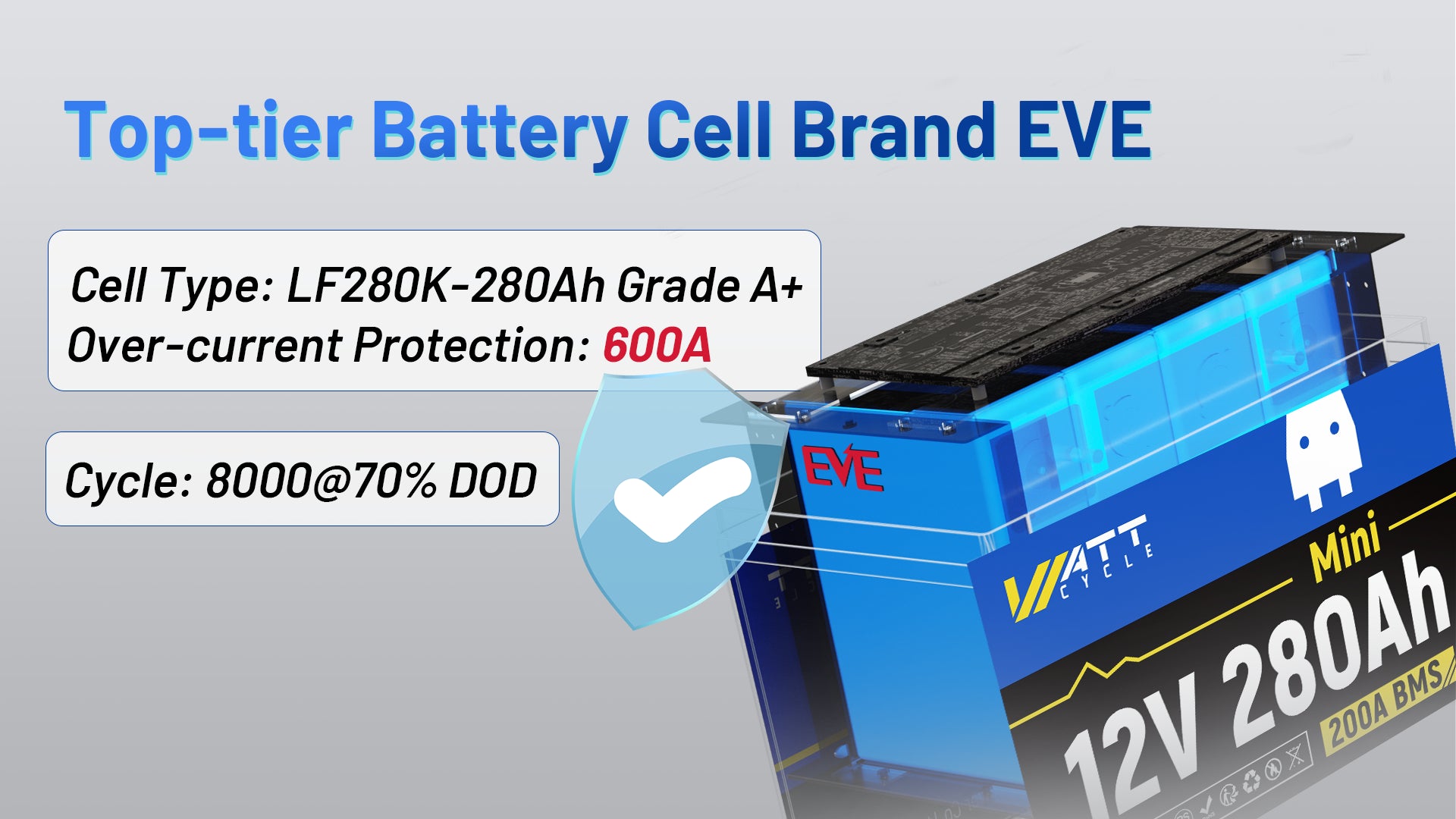

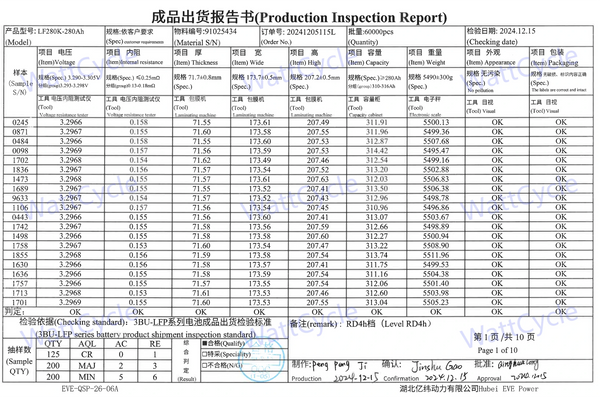

- EVE LF280K-280Ah Grade A+ LiFePO4 Cells
- (EVE: Top-tier battery cells brand)
- Capacity: Rated: 3.2V 280Ah Tested: 310Ah
- Nearly 12lbs lighter than 3 pack of 12V 100Ah
- 42% smaller than 3 pack of 12V 100Ah
- The same capacity with 3 pack of 12V 100Ah

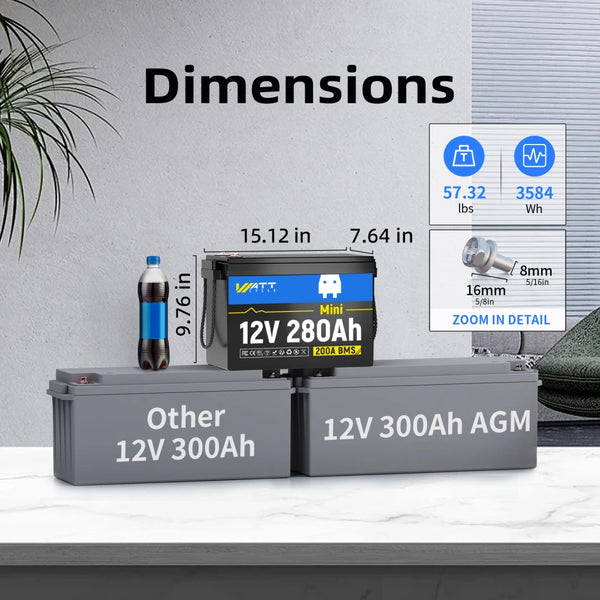

- Compact: 15.12 x 7.64 x 9.76 inches | 57.32lbs
- Safe: Low-temperature cut-off protection
- Durable: 5,000-15,000 deep discharge cycles
- Reliable: Built-in 200A BMS | 2560W | 3584Wh
- Scalable: Max. 4S4P, up to 57.34kWh
- Waterproof: IP65
- Certification: SDS / UN38.3 / FCC / CE / ROHS / UL
⚡The Last Batch of 12V 280AH MINI in Stock!

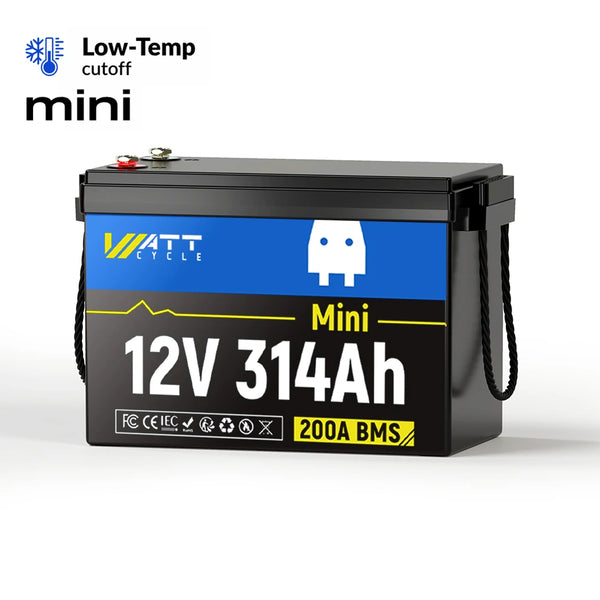

🔥The next version is 12V 314AH MINI BT, coming in July! Please Keep tuned!
28 in stock
Couldn't load pickup availability
Description
Description
- EVE LF280K-280Ah Grade A+ LiFePO4 Cells: The WattCycle 12V 280Ah Mini LiFePO4 Battery is equipped with EVE LF280K-280Ah Grade A+ LiFePO4 Cells, ensuring top-tier safety, energy density, power, and stability. This battery provides reliable and long-lasting power with a minimal self-discharge rate of just 3% per month. It features robust protection against overcharge, over-discharge, over-current, and short circuits, offering peace of mind and dependable performance.
- 200A BMS: It comes with a high-performance 200A Battery Management System (BMS), which manages charge and discharge cycles, ensuring a maximum output of 200A while protecting the battery from overcharging, over-discharging, and short circuits. This advanced BMS enhances both safety and efficiency.
- Longevity: With a lifespan of up to 10 years and between 5,000 and 15,000 charge cycles, this battery produces a total of 17,920 kWh of energy over its lifetime (3584Wh x 5,000 cycles). This longevity translates into significant cost savings, providing up to 50% power savings compared to utility power.
- Cost-Efficient: The WattCycle 12V 280Ah Mini battery is also cost-efficient, offering robust energy storage for RVs, marine applications, or off-grid use. It is lightweight, weighing only a third of a comparable lead-acid battery with the same capacity, and is 12 lbs lighter than three packs of WattCycle 12V 100Ah LiFePO4 Batteries.
- Lightweight: 12V 280Ah Mini lithium battery weighs only 1/3 of a comparable lead-acid battery with the same capacity, 12lbs lighter than 3 pack of WattCycle 12V 100Ah LiFePO4 Battery.

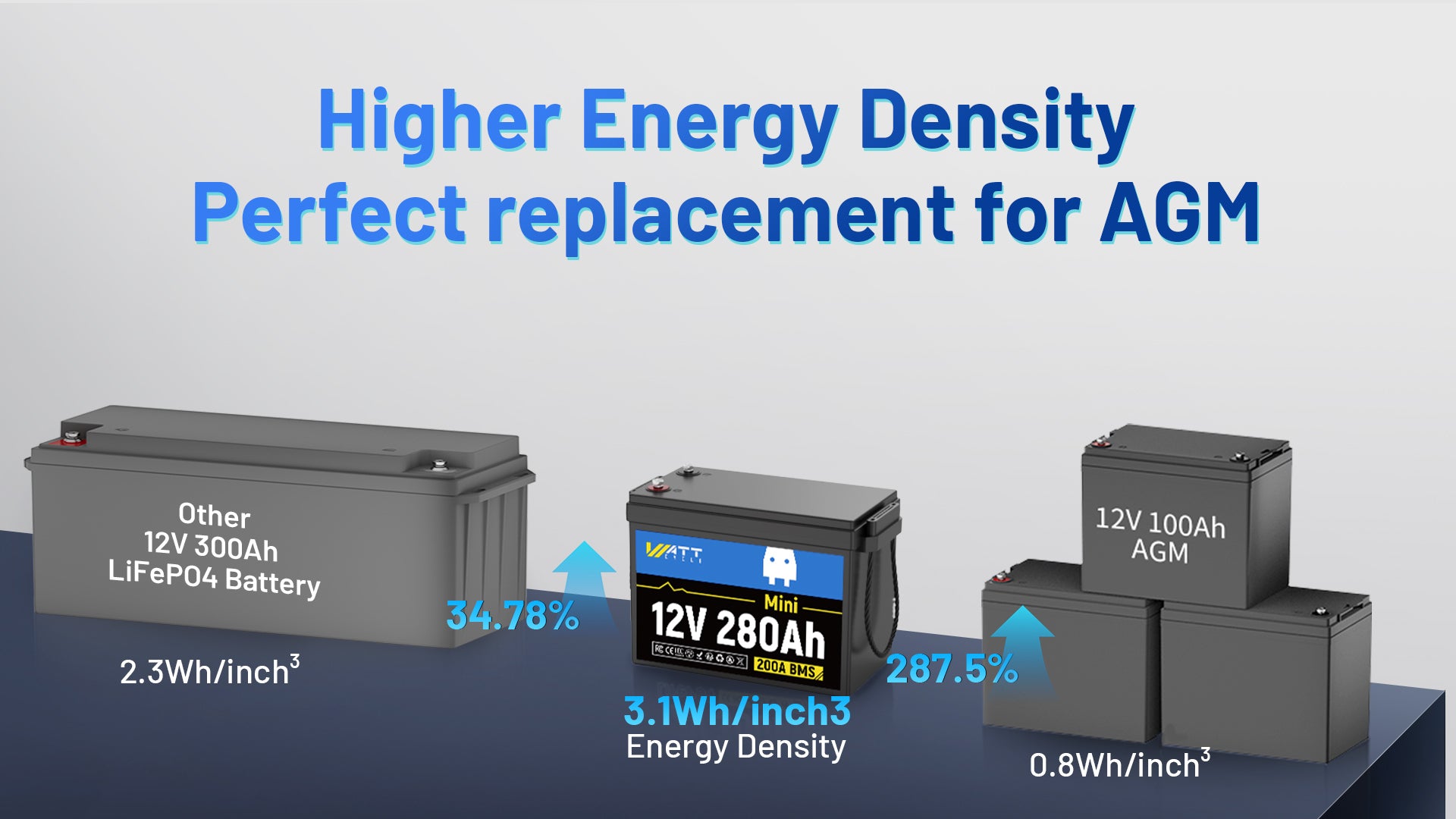

- High Energy Density: The battery boasts a high energy density of 63 Wh/lbs (3584 Wh / 57.3 lbs ≈ 63 Wh/lb), which is nearly twice as much as comparable lead-acid batteries.
- Fast Charging Capabilities: It supports rapid charging, allowing for quicker turnaround times and minimizing downtime between uses.
- WattCycle also ensures reliable and responsive service, with fast delivery within 2-5 business days from local warehouses in California, Texas, or Georgia. Customers benefit from lifetime support, including quick feedback within 24 hours, and accessible operation manuals and online support.
- 2-6 Business Days Free Delivery
- 30-day Hassle -free Return & Refund
- Sign for 7-year Warranty Service
Wholesale
Hear from Youtubers' Reviews
-
@Temporarily Offline Ham Radio
They are packing the power up NICE and DENSE inside of this battery, what I found out is that this battery's low voltage cut-off is at 9.2V instead of the typical 10V that we've been used to for the past couple of years. They are packing a lot of energy into a very small space.
-
@Solar Power Edge
It looks pretty large, but a 300Ah (280Ah) battery looks a bit small size and indeed it is smaller than you would expect. And, that's why they're calling it a mini battery. Anyway, the battery pretty much has the capacity, the answer is it ran that heater for over 6.5 hours straight!
-
@Texas Prepper Projects
It is absolutely incredible how tiny this thing is. I know this thing doesn't look real pretty, this is a great way to save a ton of money, this gives you a big big big power in a very small package that you can move around.
-
@DIY Homestead Projects
That's a lot of power in a small format like this, very COOL! That's beyond the 300Ah, it held up real nice for the capacity test. I really like it!

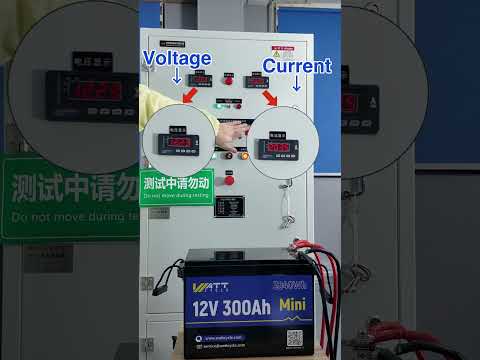

Volume and Capacity Test of the WattCycle 12V 280Ah Mini Battery
High-Energy, Compact Lithium Battery for Home Storage & DIY Power Stations
The 12V 280Ah MINI LiFePO4 Battery by WattCycle combines a small footprint with high energy capacity, perfect for those seeking reliable power solutions for off-grid living, home energy storage, and DIY power stations.
he Ultimate AGM Replacement: WattCycle 12V 280Ah MINI LiFePO4 Battery

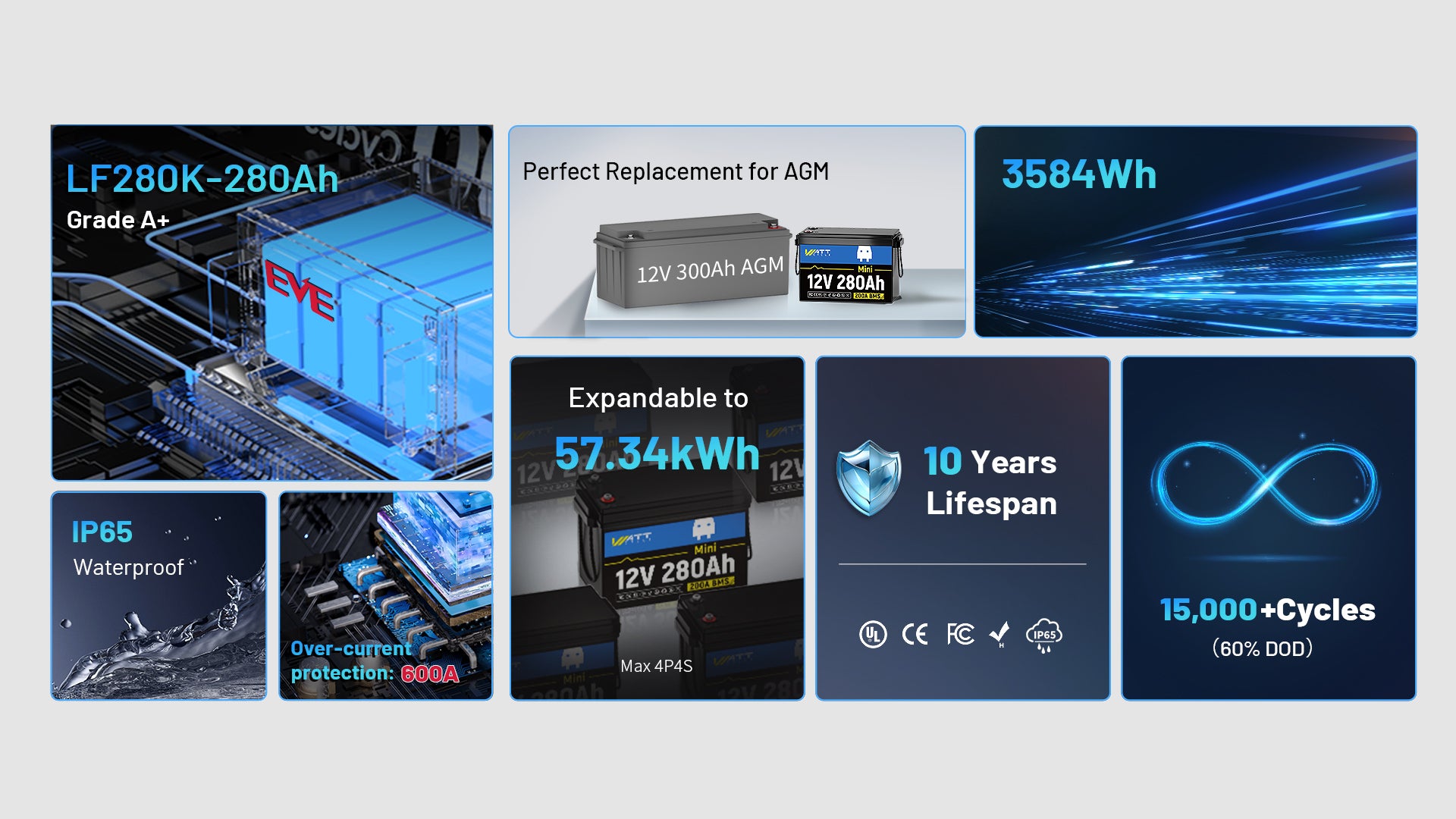

The WattCycle 12V 280Ah MINI LiFePO4 Battery features EVE’s top-tier cells, offering a remarkable 3584Wh capacity, an IP65 rating, and up to 15,000 charge cycles. Perfect for replacing AGM batteries, it guarantees reliable power for up to 10 years.

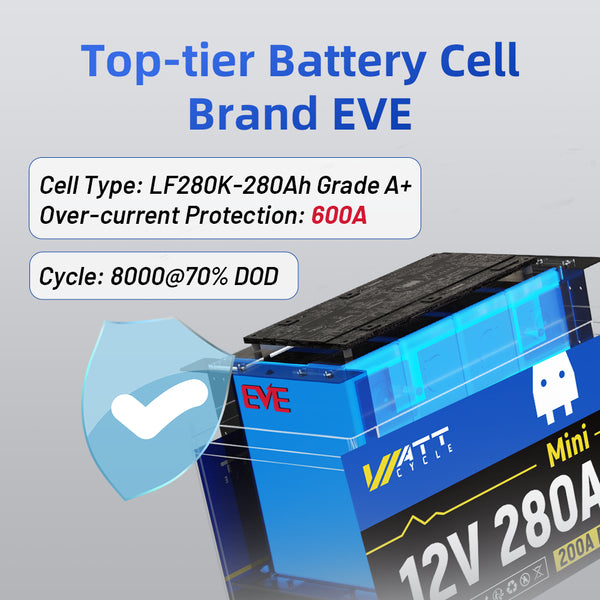

Top-Tier Safety & Efficiency
With top-tier A+ cells from EVE and 600A overcurrent protection, the WattCycle 12V 280Ah MINI LiFePO4 Battery is built for safety, efficiency, and up to 15,000 cycles of reliable energy storage.

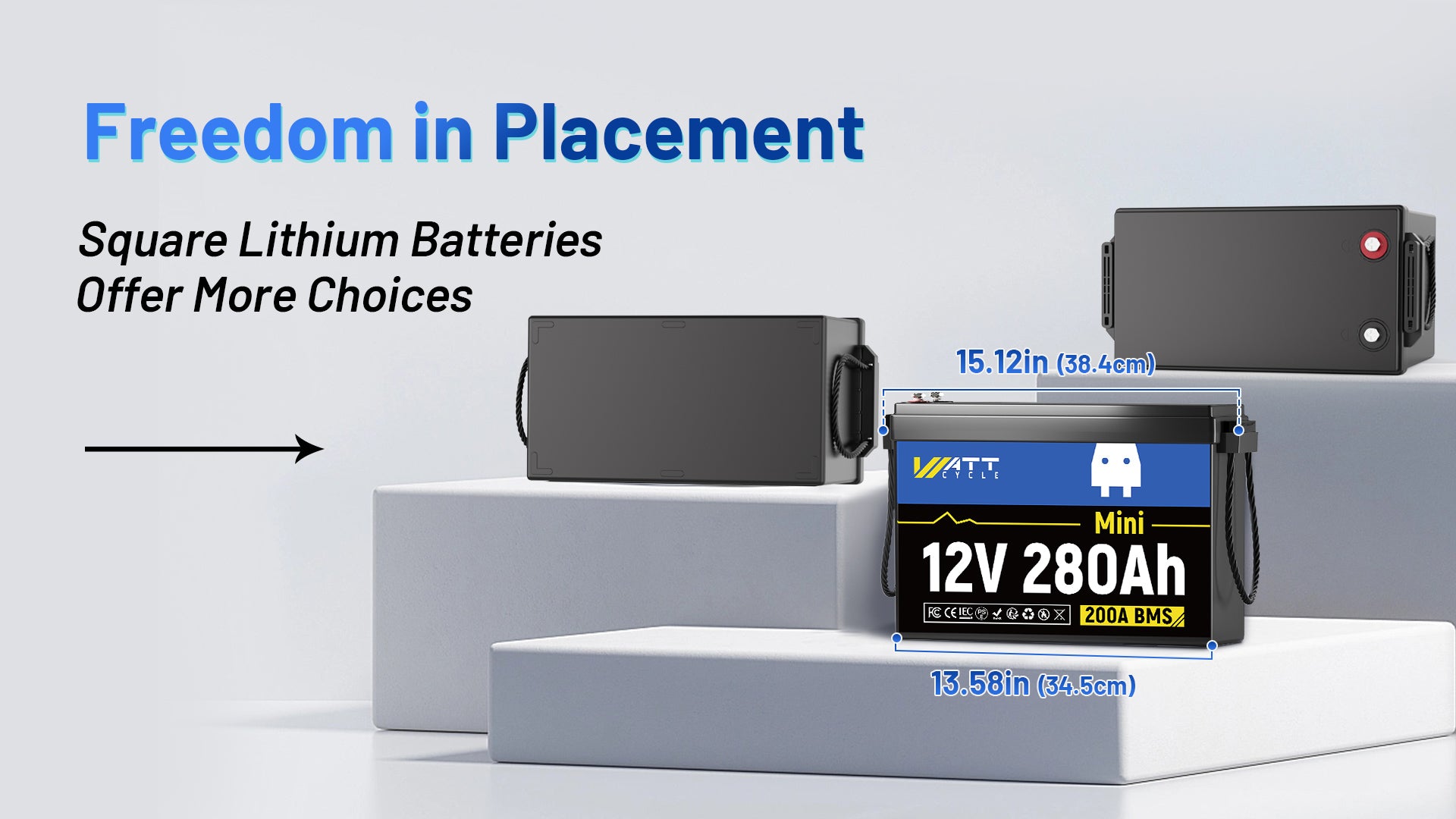

Freedom to Install: No Restrictions on Where You Place Your Lithium Battery
Designed for easy integration into any system, your lithium battery can be placed wherever it's most convenient for you.

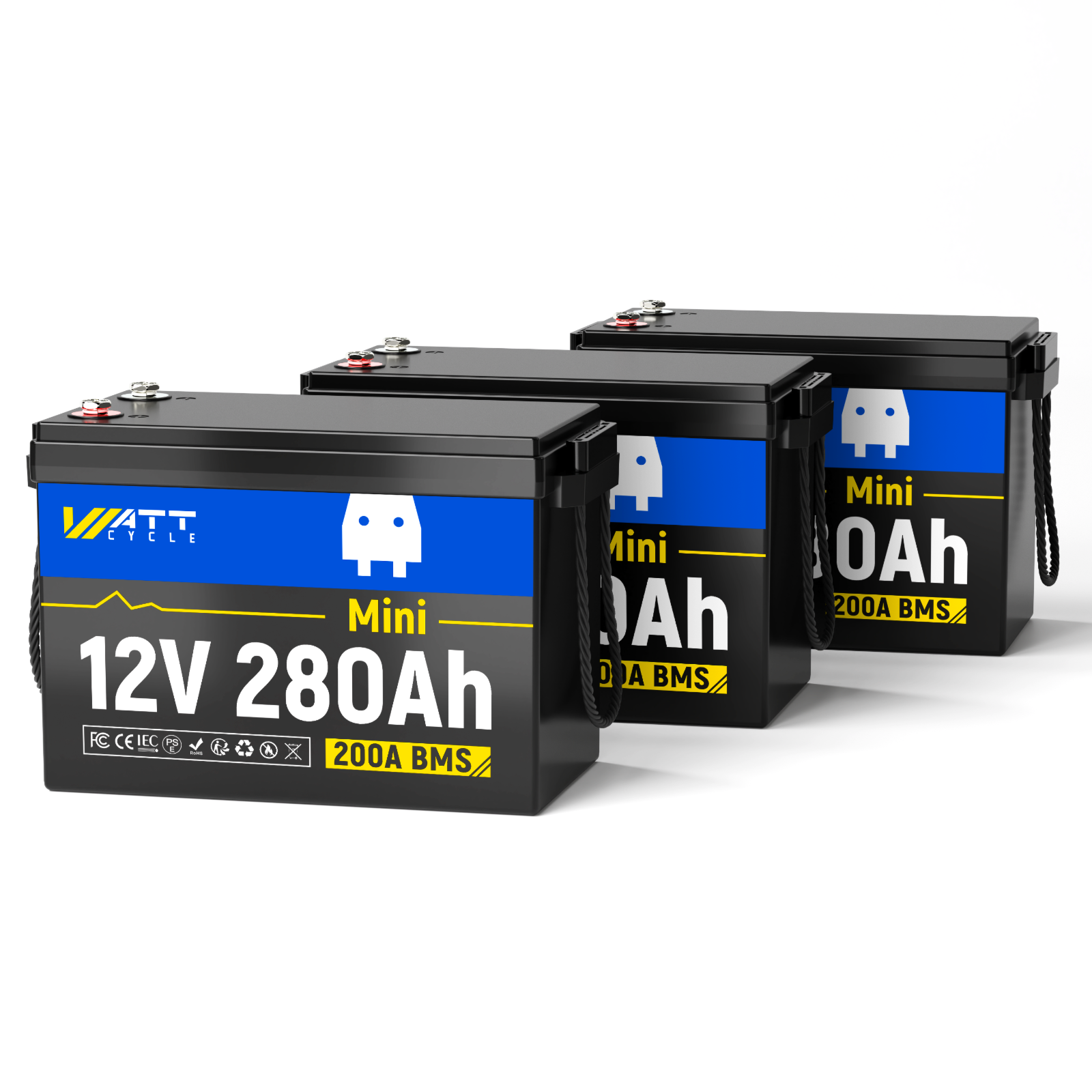

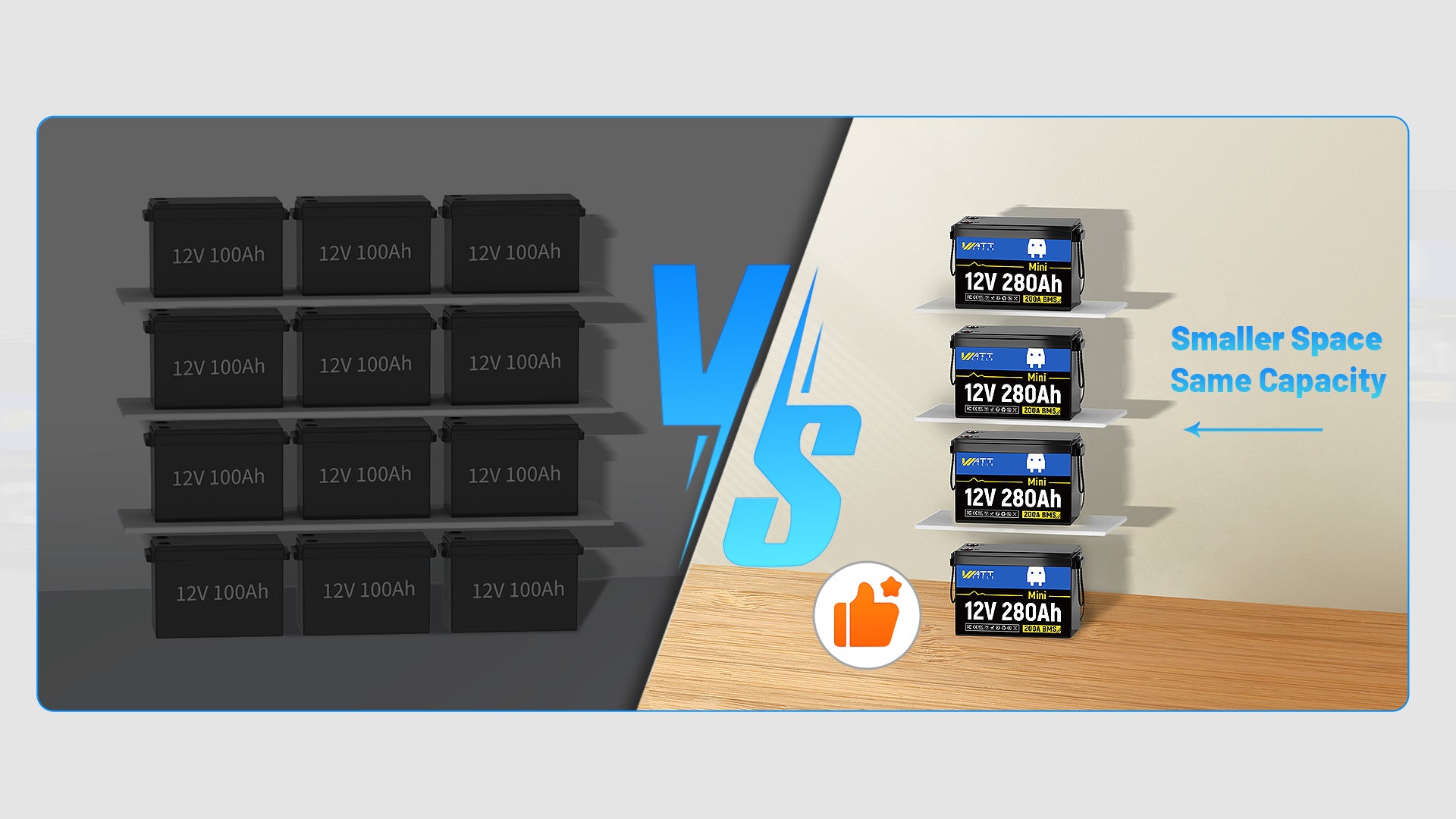

Effortless Upgrade: One 280Ah MINI Equals Three 12V 100Ah Lead-Acid Batteries
Streamline your power system by swapping out multiple lead-acid batteries for a single high-capacity 280Ah MINI, reducing complexity and improving efficiency.
Tailored Energy Solutions: 280Ah MINI Supports Up to 16 Battery Connections
Build a DIY energy system with ease, as the 280Ah MINI’s maximum support of 16 batteries lets you adapt your power setup to any application or requirement.
Tech Specs
General
| Dimensions (Inches) | 15.12 (L) x 7.64 (W) x 9.76 (H) |
| Weight | 57.32lbs / 26.0kg |
| Waterproof Rating | IP65 |
| Warranty | 7 years |
| Housing Material | ABS (Flame Retardant Plastic) |
| Terminal | M8 bolts |
Feature
| Cell | EVE LF280K-280Ah Grade A+ LiFePO4 Cells |
| Nominal Voltage | 12.8V |
| Capability | Rated: 3.2V 280Ah Tested: 310Ah |
| Energy | 3584Wh |
| Cycle Life | 5,000+ cycles @100% DOD, 6,000+ cycles @80% DOD, 15,000+ cycles @60% DOD |
| Max Depth of Discharge (DOD) | 100% |
| Max. Expansion | 4S4P |
| Internal Resistance | ≤40mΩ |
Battery BMS
| BMS | 200A |
| Over Current Protection | 600A |
| Max. Continuous Output Power | 2560W |
| Max. Continuous Charge Current | 100A |
| Max. Continuous Discharge Current | 200A |
| Max. Discharge Current | 300±50A (≤5s) |
Charge Specs
| Charge Voltage | 14.6V ± 0.2V |
| Charge Method | CC / CV |
| Recommend Charge Current | 0.2C |

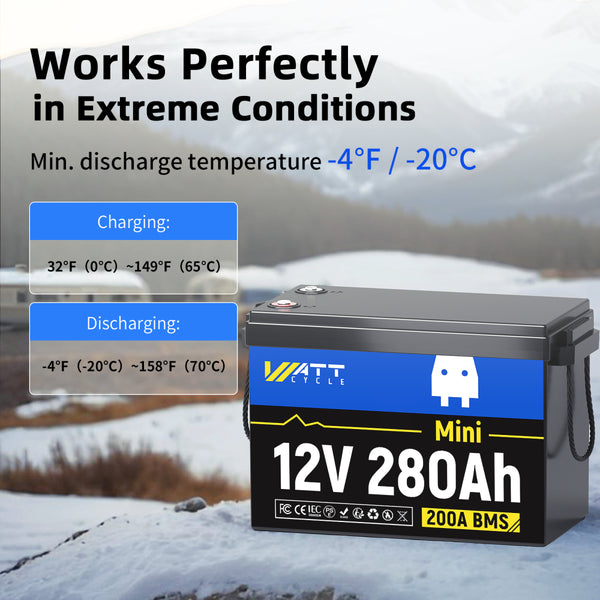

| Charge Temperature | 0℃ to 45℃ / 32℉ to 113℉ |
| Discharge Temperature： | -20℃ to 60℃ / -4℉ to 140℉ |
| Storage Temperature | -20℃ to 45℃ / -4℉ to 113℉ |
| Low-Temperature Protection | Yes (32℉/0℃) |
| Low-Temperature Charging Protection Recovery | Yes (41℉/5℃) |
