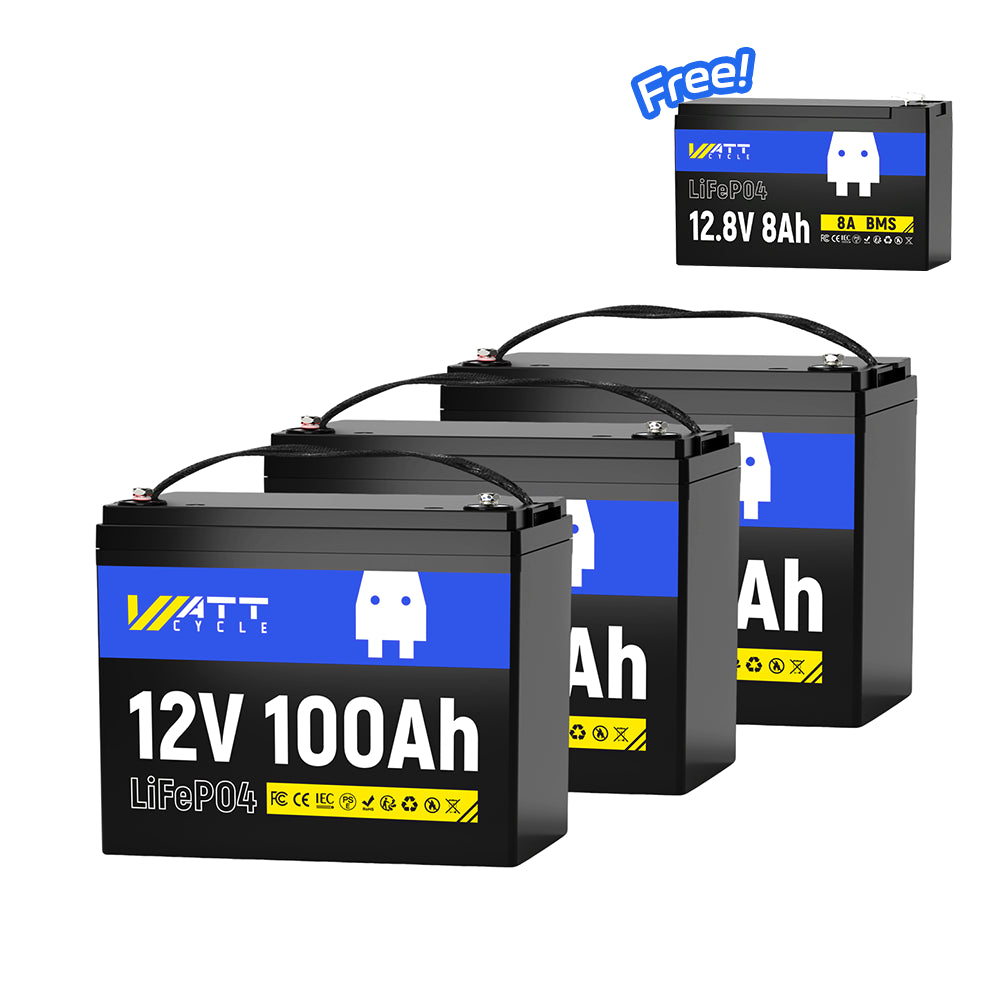

【Free 12V 8Ah】3*12V 100Ah LiFePO4 Battery | Group 24 Size | 3840Wh+102Wh
⚡BCI Group 24 Size (10.2 x 6.6 x 8.2 in & 23 lbs) | 23.0 lbs
⚡100Ah of capacity & 1280Wh of energy
⚡Best Value at an average of 0.15$/Wh.
⚡EV Grade-A prismatic cells with 5,000-15,000 DOD and 10+ years battery life.
⚡Low-temperature cut-off protection (triggers below-4℉)
⚡1/3 smaller, 2/3 lighter but 2X usable energy of a 12V 100Ah lead-acid battery.
⚡ABS case for better external protection & built-in metal frame for internal protection.
⚡Max. 4S4P to build a 20.48 kWh power tank.
⚡Ideal for RVs, trolling motors, marine, home storage, off-grid, and golf carts.
⚡Fast shipping & delivery, 5+2 years warranty, professional support and well-packaged.
⚡Certified by IEC/ROHS/CE/FCC/UN38.3/Class9
Expected Delivery on - .
Free Shipping & Return
Money back guarantee
Fast & reliable support
Secure payment
【Free 12V 8Ah】3*12V 100Ah LiFePO4 Battery | Group 24 Size | 3840Wh+102Wh
My NEW Portable Battery - WattCycle 12V / 100Ah LiFePo
We tested my new LiFePO4 (lithium iron phosphate) 12V 100Ah battery at Parks On The Air.
Reasons to Choose WattCycle
WattCycle 12V 100Ah deep cycle LiFePO4 battery with compact design (L260 x W168 x H209 mm) and IP65 water-and dustproof is equipped with Top EV grade A+ LiFePO4 cells and 100A safe BMS protection, providing excellent performance, unbeatable safety, and massive 1280W output power and 1280Wh energy for your indoor- and outdoor applications.
WattCycle Deep Cycle Battery: Only Grade A+ Cells
Grade A+ cells typically refer to battery units that incorporate high-quality, high-performance cells. Specifically. These cells often exhibit the following characteristics and benefits:
1) High Energy Density
2) Long Cycle Life
3) High Safety Standards
4) Stable Performance
WattCycle Battery Safety: Intelligent BMS
Battery Management System: A crucial component in lithium-ion batteries and other rechargeable batteries, responsible for monitoring and managing the battery's performance.
8X Safety Protection: Over-current/Over-charge/Over-discharge/Over-load/High Temperature/Low Temperature/Short Circuit/Equalization Protection.
Working as Usual in Extreme Weathers
Charge Temperature: 0℃ to 50℃ / 32℉ to 122℉
Discharge Temperature： -20℃ to 70℃ / -4℉ to 158℉
Group 24 Size, Universal Fit
Typical dimensions for a Group 24 battery:
Length: 10.25 inches (260 mm)
Width: 6.8125 inches (173 mm)
Height: 8.875 inches (225 mm)
Please double-check the specific dimensions provided by WattCycle to ensure a perfect fit, as slight variations can occur.
Lighter, Smaller & More Energy
62~69% Lighter | 27% Smaller | 178~247% Energy Increases
More Applications, More Possibilities
RV/VANS/Camper/Off-grid/Home Storage/Trolling Motors
Features
-
Multiple Applications: Ideal for RVs, vans, campers, and also suitable for home storage, off-grid systems, golf carts, trolling motors, and more.
- High Performance: This lithium battery offers a capacity of 100Ah with a standard voltage of 12.8V. Its 100% DOD (Depth of Discharge) guarantees a consistent and steady journey.
- Built-in BMS Protection: Featuring an integrated 100A BMS protection system, the lithium battery automatically disconnects if the discharge current exceeds 300±50A, ensuring optimal safety.
- Drop-in Replacement: Compactly designed at 10.2 x 6.6 x 8.2 inches (26 x 17 x 21 cm) and weighing nearly 2/3 lighter (23.0 lbs / 10.5 kg) than a lead-acid battery, this lithium battery fits seamlessly into a Group 24 battery box, maximizing energy density without requiring a larger box.
- Low Temperature Protection: Engineered to withstand extreme temperatures, the lithium battery operates efficiently in conditions as low as -4℉ (-20℃) and as high as 158℉ (70℃), adapting seamlessly to various climates.
- Series or Parallel Connection: Easily connect up to 4 batteries in series or 4 packs in parallel, achieving a remarkable capacity of up to 20.48kWh. Customize the connection to suit your needs.
- Waterproof: With IP65-rated waterproof protection, this lithium battery ensures reliable performance in wet and challenging environments, making it ideal for outdoor and marine applications.
- Automotive Grade A+ Cells Only: Supporting up to 5,000 cycles at 100% DOD, these cells come with multiple safety certifications and built-in overcharge, over-discharge, overcurrent, and short-circuit protection to ensure safety in various conditions.
- 3 Charging Methods: Charges up to 5 times faster than a lead-acid battery. (WattCycle LiFePO4 battery charger, solar panel, or generator)
- Registration for Extended Warranty: The battery comes with a default 5-year warranty, which can be extended to 7 years with registration on the official website.
Tech Specs
General
| Dimensions (Inches) | 10.2 (L) x 6.6 (W) x 8.2 (H) |
| Weight | 23.0lbs / 10.5kg |
| Waterproof Rating | IP65 |
| Warranty | 7 years |
| Housing Material | ABS (Flame Retardant Plastic) |
| Terminal | M8 bolts |
Battery
| Cell | EV Grade A+ LiFePO4 Cells |
| Nominal Voltage | 12.8V |
| Nominal/Usable Capability | 100Ah |
| Energy | 1280Wh |
| Cycle Life | 5,000+ cycles @100% DOD, 6,000+ cycles @80% DOD, 15,000+ cycles @40% DOD |
| Max Depth of Discharge (DOD) | 100% |
| Max. Expansion | 4S4P |
| Internal Resistance | ≤40mΩ |
BMS
| BMS | 100A |
| Max. Continuous Output Power | 1280W |
| Max. Continuous Charge Current | 100A |
| Max. Continuous Discharge Current | 100A |
| Max. Discharge Current | 300±50A (≤5s) |
Charge Specs
| Charge Voltage | 14.4V ± 0.2V |
| Charge Method | CC / CV |
| Recommend Charge Current | 20A (0.2C) |
| Charge Temperature | 0℃ to 50℃ / 32℉ to 122℉ |
| Discharge Temperature： | -20℃ to 70℃ / -4℉ to 158℉ |
| Storage Temperature | -10℃ to 50℃ / 14℉ to 122℉ |
| Low-Temperature Protection | Yes (32℉/0℃) |
| Low-Temperature Charging Protection Auto Recovery | Yes (41℉/5℃) |
