We offer free shipping on most orders across Canada, excluding the Northwest Territories, Yukon, and Nunavut. Orders are typically processed within 1–2 business days and delivered within 2–5 business days. In rare cases where shipping costs exceed standard rates, we may contact you to discuss additional charges or order adjustments. Once your order ships, you will receive a tracking number by email to monitor delivery progress. Please note that delivery times are estimates and may be affected by factors beyond our control, such as carrier delays, weather conditions, or other unforeseen circumstances. For complete details, please visit:
Shipping Policy.
Our batteries come with a 5-year warranty, which can be extended to 7 years total upon product registration. Accessories are covered by a 1-year warranty, and like-new (refurbished) batteries include a 1-year warranty.
For full terms, conditions, and claim details, please visit:

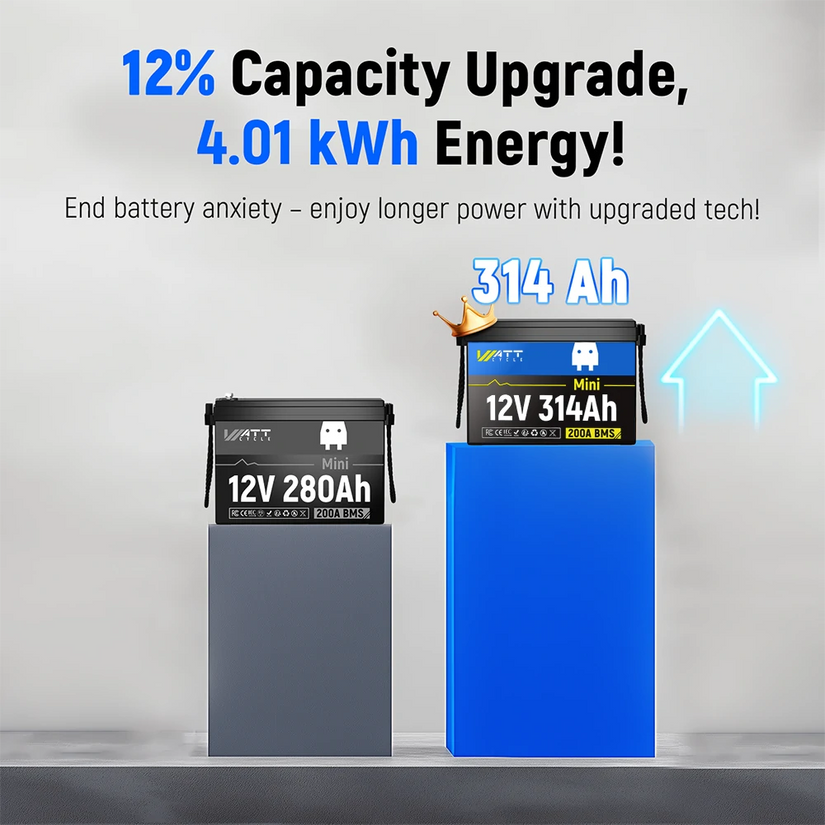

Compared to a 12V 280Ah LiFePO4 battery, it offers 11% more capacity while taking up less space. It's ideal for extended outdoor camping trips, RV travel, and boat fishing.
WattCycle lithium batteries offer absolutely safe battery performance. A 200A BMS with over 20 protections and a 250A(1s) peak discharge current allow you to use high-power appliances with peace of mind. It also features an innovative design with an internal metal frame and external tough casing, effectively reducing battery swelling, maintaining cell stability, and allowing for installation and use in any orientation.

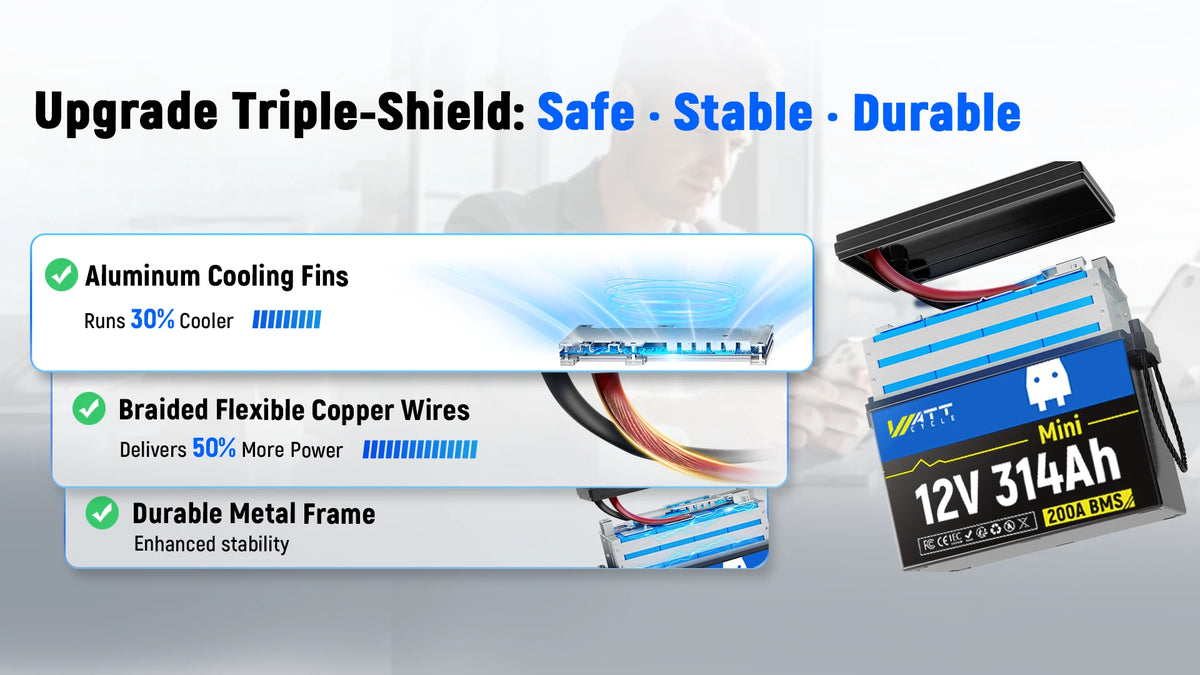

The WattCycle 12V 314Ah LiFePO4 Battery stands up to harsh conditions thanks to its unique full-aluminum internal frame,Which not only reinforces the cell structure but also integrates cooling fins that improve heat dissipation by 30 %. That means during heavy discharge or rapid charging, excess warmth is whisked away faster—protecting cell health and maintaining peak performance. Meanwhile, braided copper wires have been newly added inside the battery, enabling it to provide more than 50% of the power with the minimum voltage drop. This three-tier design makes it one of the safest 12V 300Ah deep cycle battery options on the market.

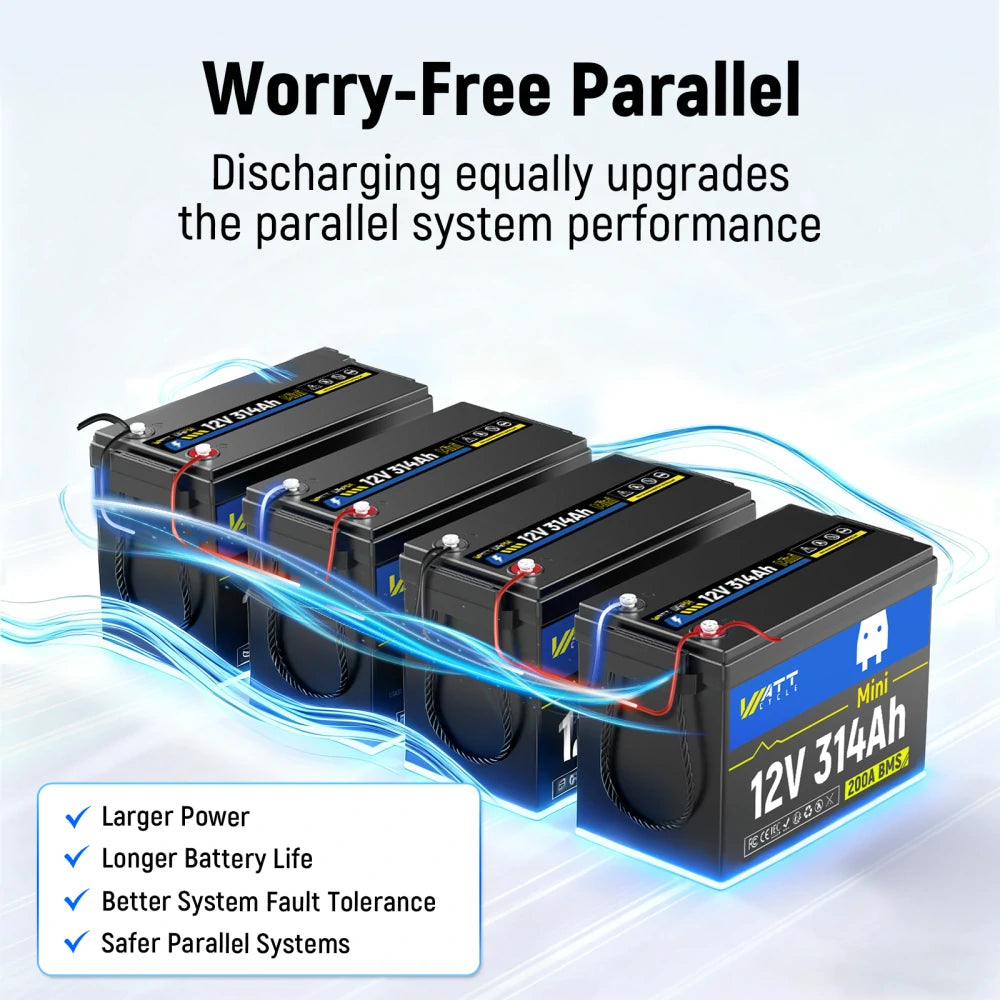

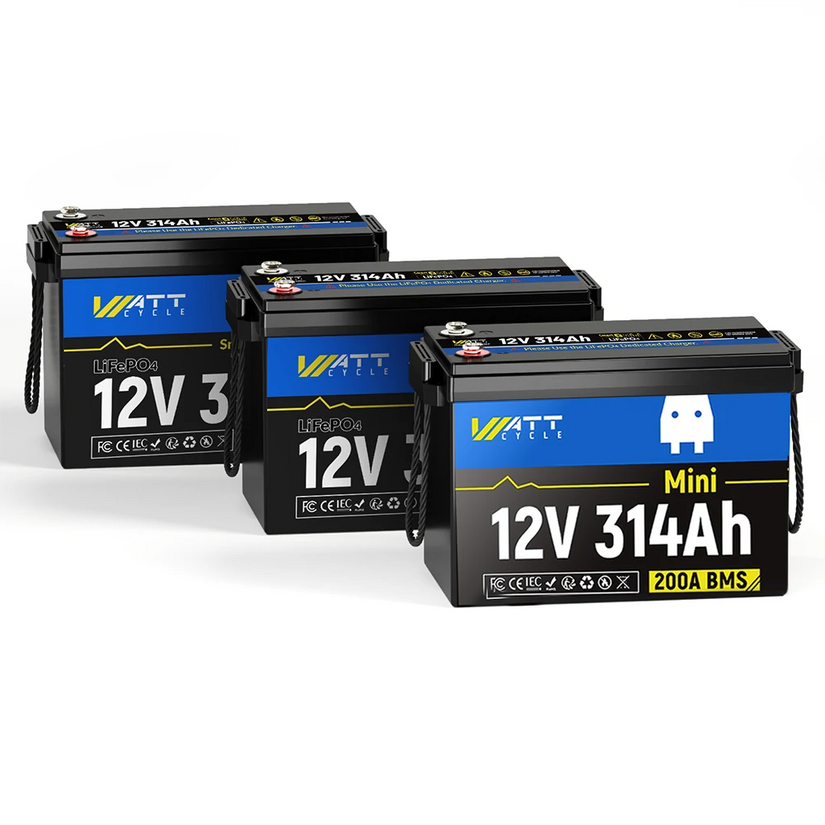

For those running three 12V 100Ah batteries in parallel, you’d typically combine to 300 Ah. That setup adds weight, wiring complexity, and more points of failure. By choosing one WattCycle 314Ah MINI battery instead. you get additional benefits.

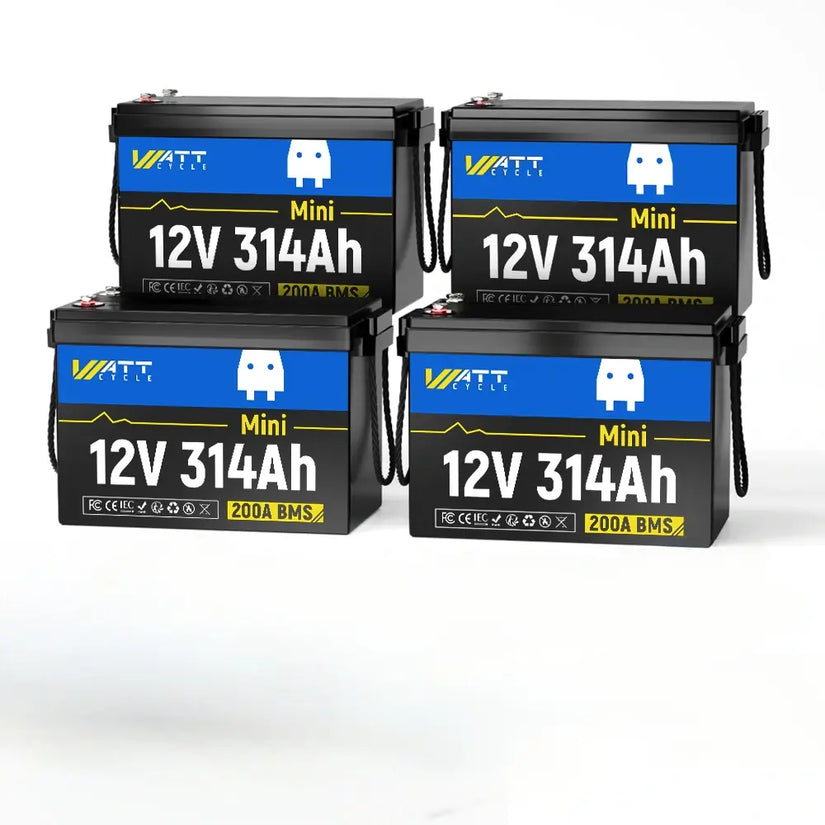

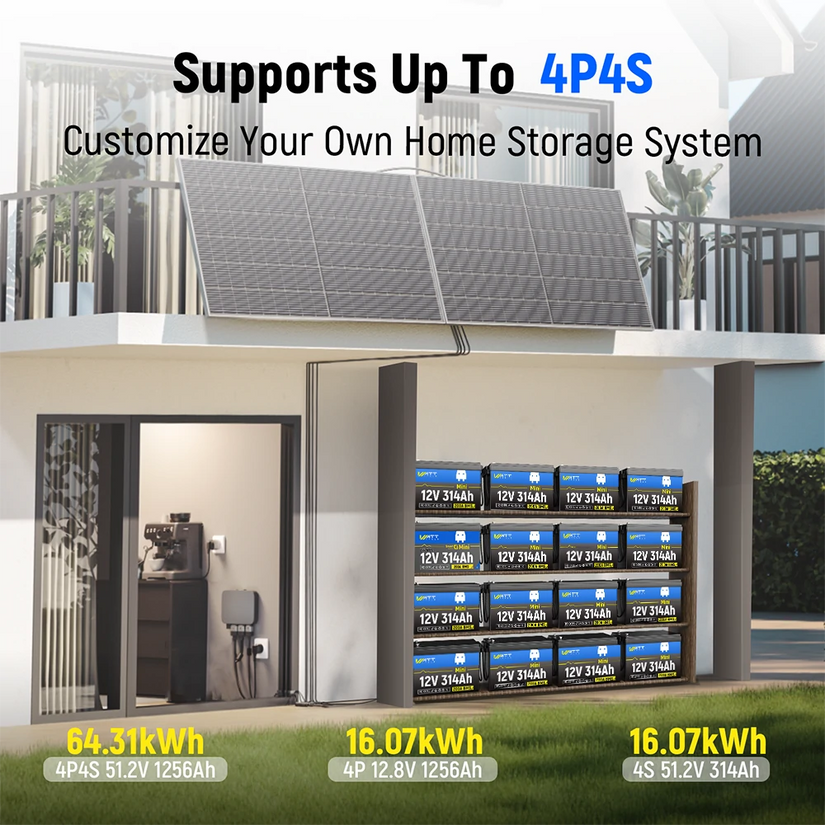

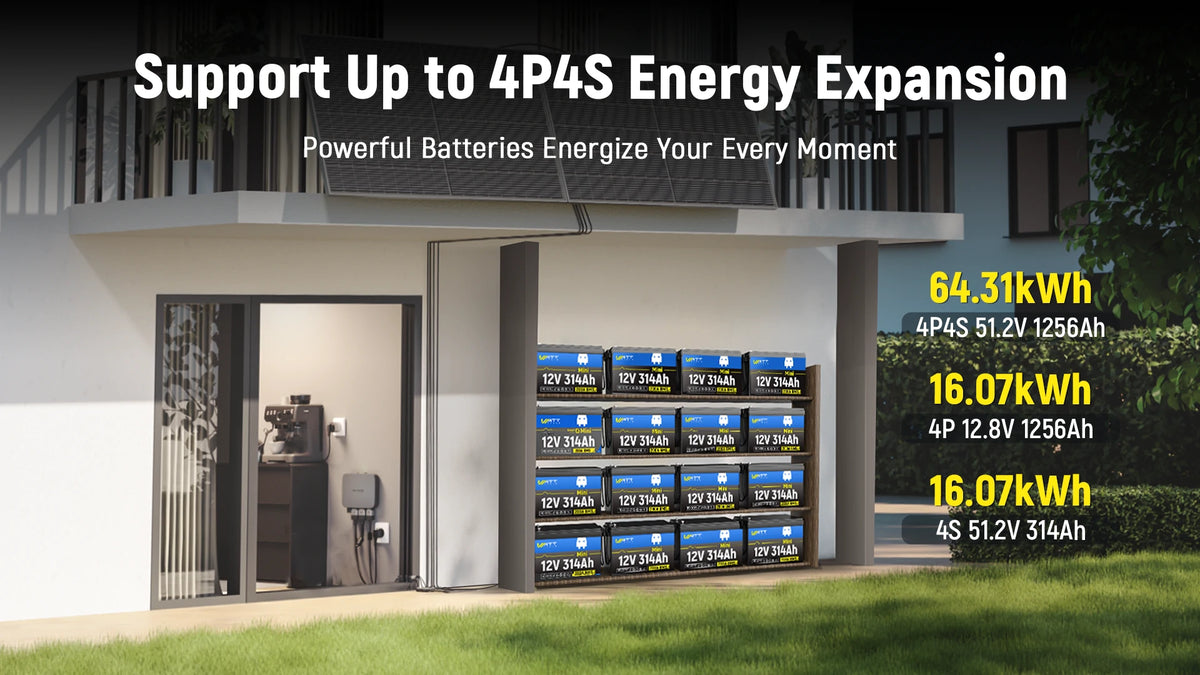

Scale up your array with extra WattCycle battery to build a 4S4P (64.3 kWh) mega-bank ideal for large solar arrays or whole-home backup. your go-to for WattCycle 12V 314Ah batteries that need to grow as your demand does.
| Dimensions (Inches) | 15.12 (L) x 7.64 (W) x 9.76 (H) |
| Weight | 59.52lbs / 27kg |
| Waterproof Rating | IP65 |
| Warranty | Sign Warranty to extend for 7 years |
| Case Material | ABS+PC/UL94 V-0 |
| Terminal | M8 bolts |
| BMS | 12.8V/200A |
| Standard/Max. Continuous Charging | 62.8A/200A |
| Max. Continuous Discharge Current | 200A |
| Over-current Discharge Protection | 210A±10A |
| Over-current Charge Protection | 210A±10A |
| Short Circuit Current Protection | Support |
| Release Condition | Cut Load |
| Charging High Temperature Protection | 140°F ~ 158°F / 60°C ~ 70°C |
| Discharging High Temperature Protection | 149°F ~ 167°F / 65°C ~ 75°C |
| High Temperature Protection Release Condition | Drop by 41°F ~ 59°F / 5°C ~ 15°C |
| Charging Low Temperature Protection | 23°F ~ 41°F / -5°C ~ 5°C |
| Discharge Low Temperature Protection | -13°F ~ 5°F / -25°C ~ -15°C |
| Low Temperature Protection Release Condition | Rise by 41°F ~ 59°F / 5°C ~ 15°C |
| Rated Voltage | 12.8V |
| Standard Charging Voltage | 14.6V±0.2V |
| Shipping Voltage | 12.8V~13.5V |
| Shipping Capacity | 50% |
| Cycle Life | 6000@80%DOD |
| Self Discharge Rate | <3%/Month |
| Series & Parallel Connections | Max. 4 Parallel 4 Series |
| Cell Certifications | UL1642/UL2580/UN38.3 |
This battery is perfectly suitable for a variety of application scenarios, From RV solar boondocking to home backup circuits, including trolling motors and on-board equipment. This module replaces bulky lead-acid stacks and standard 12V 300Ah deep cycle battery setups, streamlining power wherever you deploy it.
WattCycle 12V 314Ah LiFePO4 Battery delivers 4019Wh energy, higher than three 12V100Ah lithium batteries connected in parallel—ideal for RVs, solar systems, home storage, trolling motors, and marine. Support Max. 4S4P to 64.307kWh—hassle-free ENERGY anxiety
Wattcycle LiFePO4 battery improves 50% higher current output efficiency with high-grade braided oxygen-free copper wires, supporting 2000W+ devices. Ideal for heavy-duty applications.

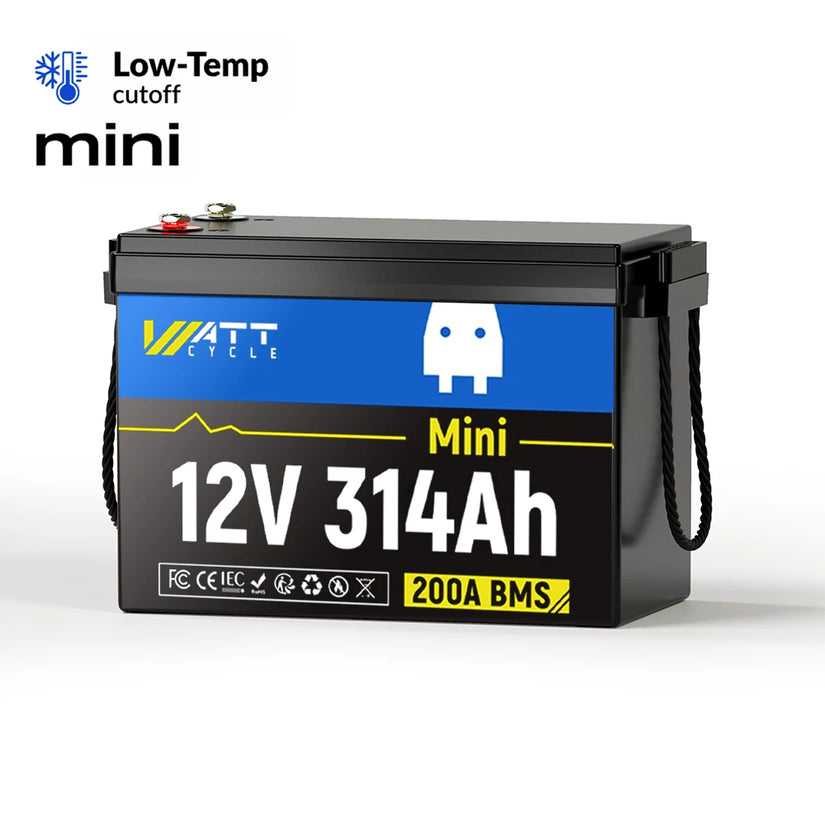

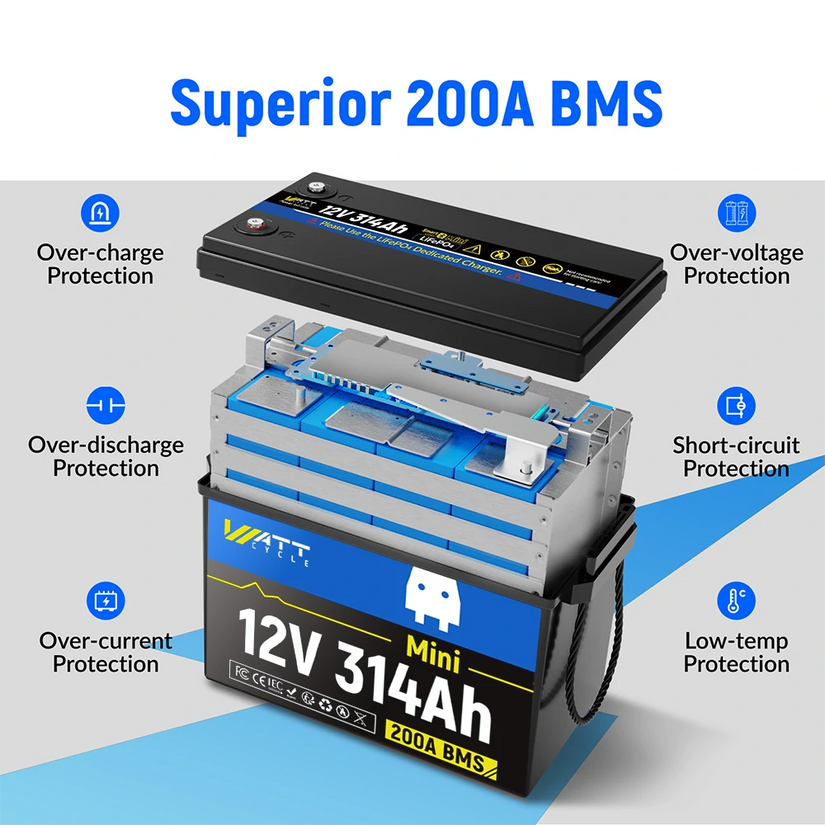

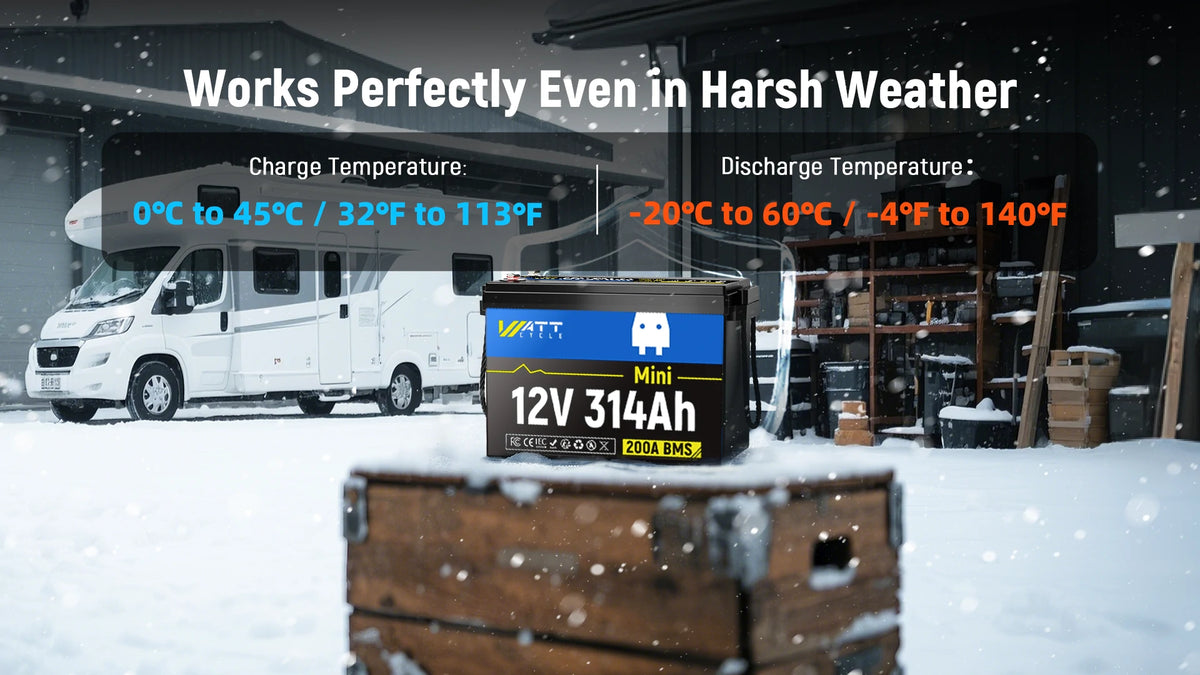

It has a built-in 200A BMS to provide 100% protection and is equipped with high-grade aluminum cooling fins that dissipate heat 30% faster and a low-temperature cut-off function to protect the battery below -4°F (-20°C), hassle-free in harsh weather.

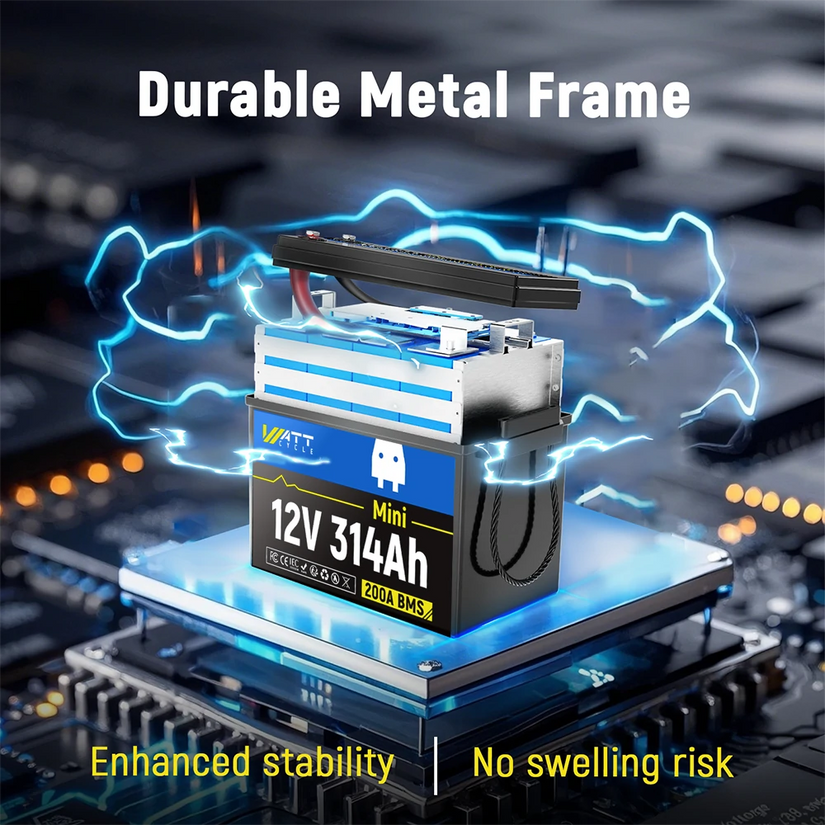

The Wattcycle LiFePO4 battery has zero swelling risk and a solid internal battery structure with a unique internal metal frame, passing UL62133 safety tests, and is shock-resistant with a durable ABS case.

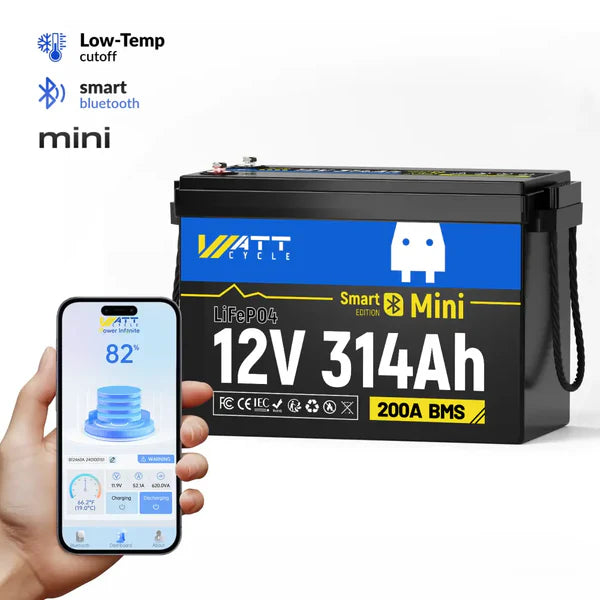

Monitor battery voltage/temperature in real-time via Bluetooth 5.0 (300ft range). Compatible with Wattcycle 12V battery systems for golf carts, campers, and backup power.

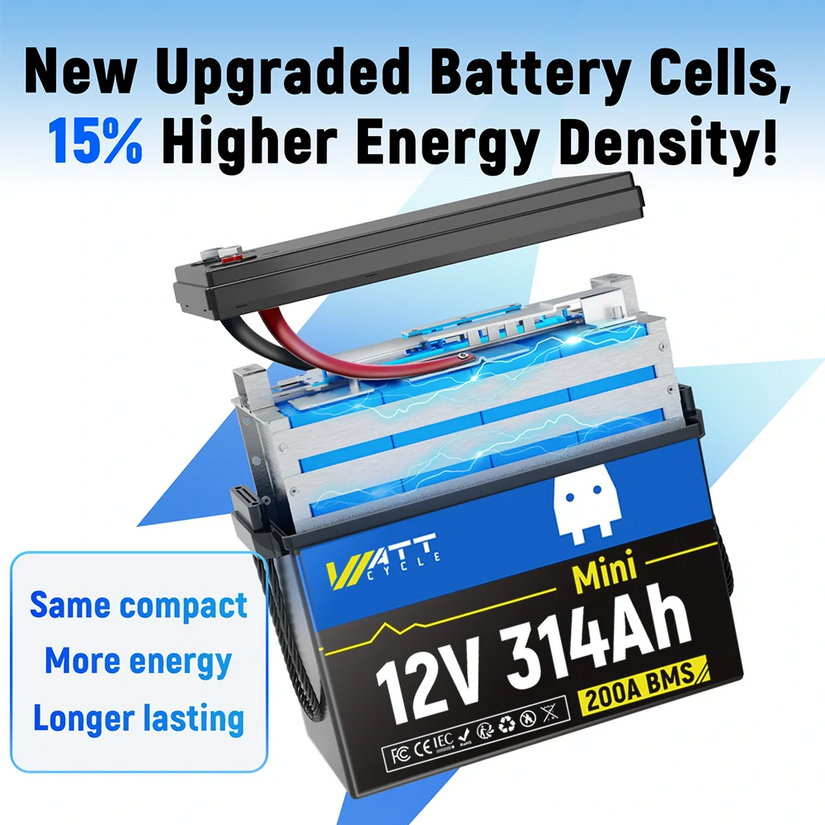

Equipped with Grade-A cells only, the Wattcycle LiFePO4 battery can escort you for ten more years with 5,000-15,000 deep cycles. Safe, long life cycles, cost-effective & eco-friendly.

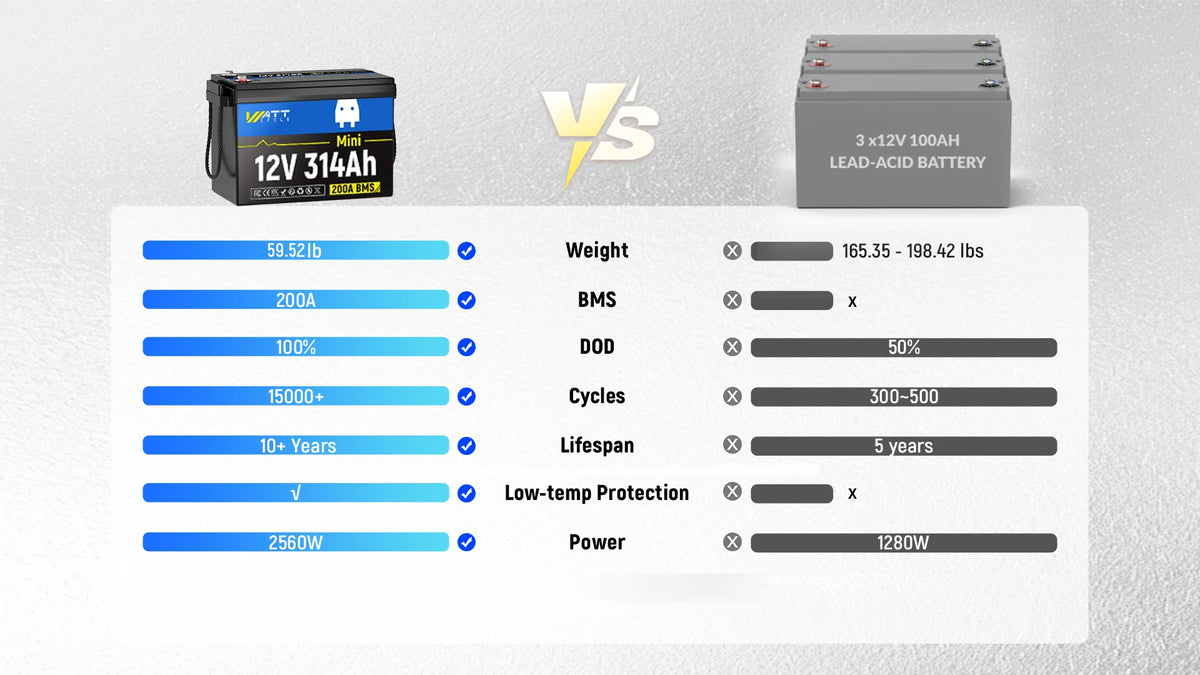

Weighing 59.52 lbs(15×7.64×9.76inch), it is 1/3 the weight of a 12V 300Ah lead acid battery (appr.180 lbs), but 2X in energy and 3- 5X longer using years. Smaller, lighter, faster to charge, and no hassle of line connection.
