Upgrade Gen2 48V 100Ah 3U Server Rack LiFePO4 Battery with Bluetooth
Expected Delivery on - .
SDS/UL/UN38.3/IEC/CE/FCC
Free Shipping & Return
Money back guarantee
Fast & reliable support
Secure payment
Upgrade Gen2 48V 100Ah 3U Server Rack LiFePO4 Battery with Bluetooth
Features
Tech Specs
Tech Specs
Specifications
| Dimensions | 19.09 x17.72 x5.24 inch |
| Weight | 91.9lbs |
| Capacity | 100Ah |
| Energy Storage | 5120Wh |
| Nominal Voltage | 51.2V |
| Self Discharge Rate | <3%/Month |
| Series & Parallel Connections | 1 Series(Max), 20 Parallel(Max) |
Charging
| Max. Charge Voltage | 58.4V |
| Max. Charge Current | 100A |
| Recommend Current | 20A |
| Charging Temperature Protection | 23~41°F; 122~140°F |
| Discharging Temperature Protection | -13~5°F; 131~149°F |
| Short Circuit Current Protection | support |
Discharging
| Cont. Dischagre Current | 100A |
| Discharge Current | 6000@DOD80% |
Others
| Case Material | Steel Plate Cold Common (SPCC) |
| Certifications | IEC/CE/FCC/UL1642/UL2580/UN38.3 |
In his hands-on test, “There’s A Trick For That” described the WattCycle 48V server rack battery as an “incredible bang-for-your-buck” way to massively expand a portable power station—demonstrating how two packs can deliver ~10× the capacity compared with many brand-name OEM expansion batteries, while staying surprisingly compact. He was especially impressed by the large, bright premium screen, app control, and “super legit” advanced BMS settings (with a clear note to keep defaults if you’re not experienced), plus the premium internal build—clean cable management, robust bus bars, multiple temperature sensors, and solid cell compression—saying WattCycle “knocked it out of the park” for the price.
Works with popular portable power stations (EcoFlow / BLUETTI) via common 48V LiFePO4 expansion methods*. Watch his full demo + teardown in the video below.
*Compatibility depends on the specific model and wiring method. Please follow professional guidance and local electrical safety requirements.
The reviewer’s takeaway was simple: this rack battery looks premium, feels well-built, and performs like it should. They specifically praised the phone-like responsive touchscreen (clear live SOC/voltage/current/temps plus cell-level data and alarms), confirmed capacity right around the rated 100Ah, saw stable output under real inverter loads, and liked how fast the BMS protection shut things down during overcurrent/overheat tests. The teardown also backed it up with solid internals—laser-welded connections, heavy busbars, lots of temp sensing, and proper heat sinking/airflow.
Do the best.

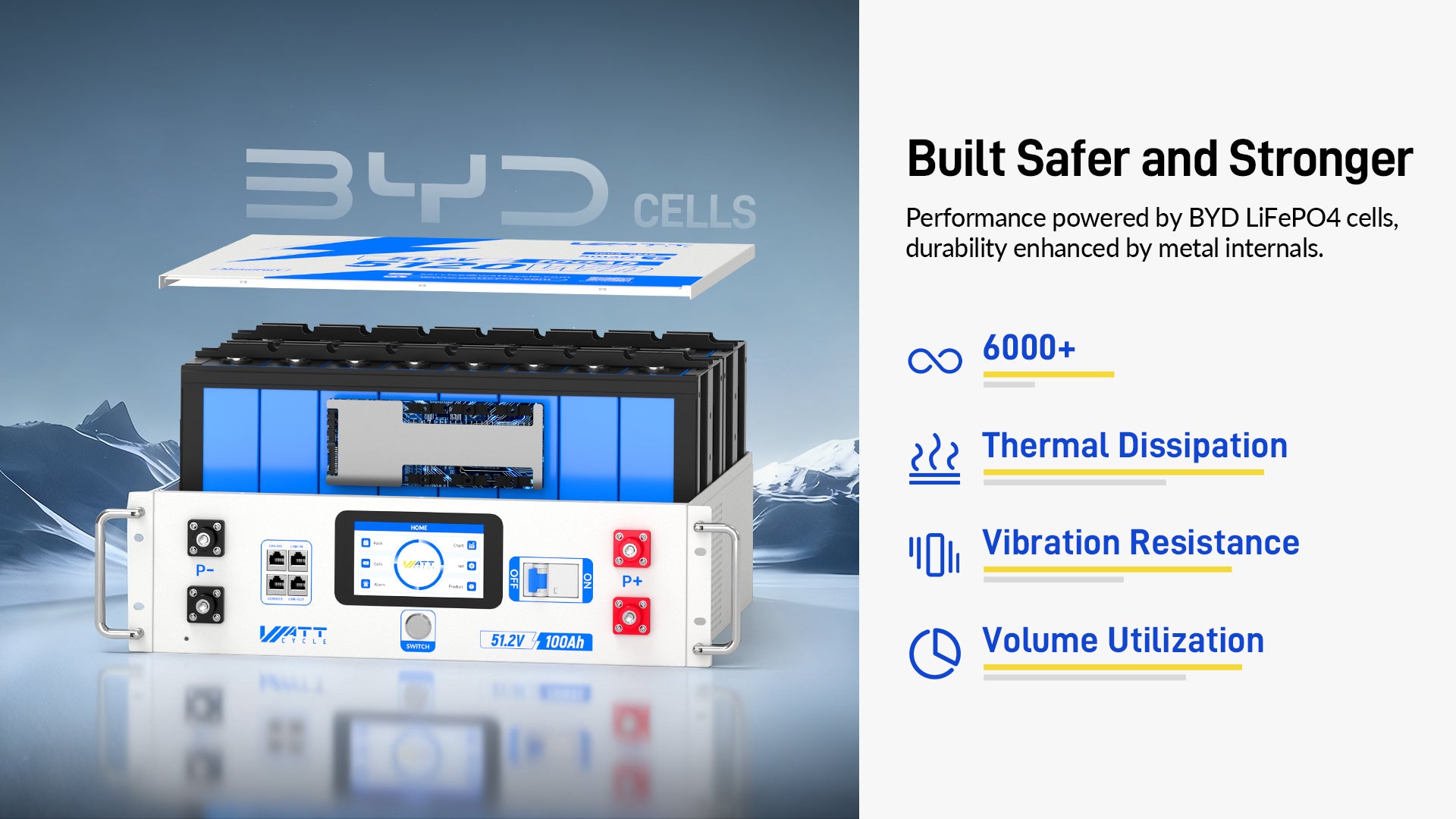

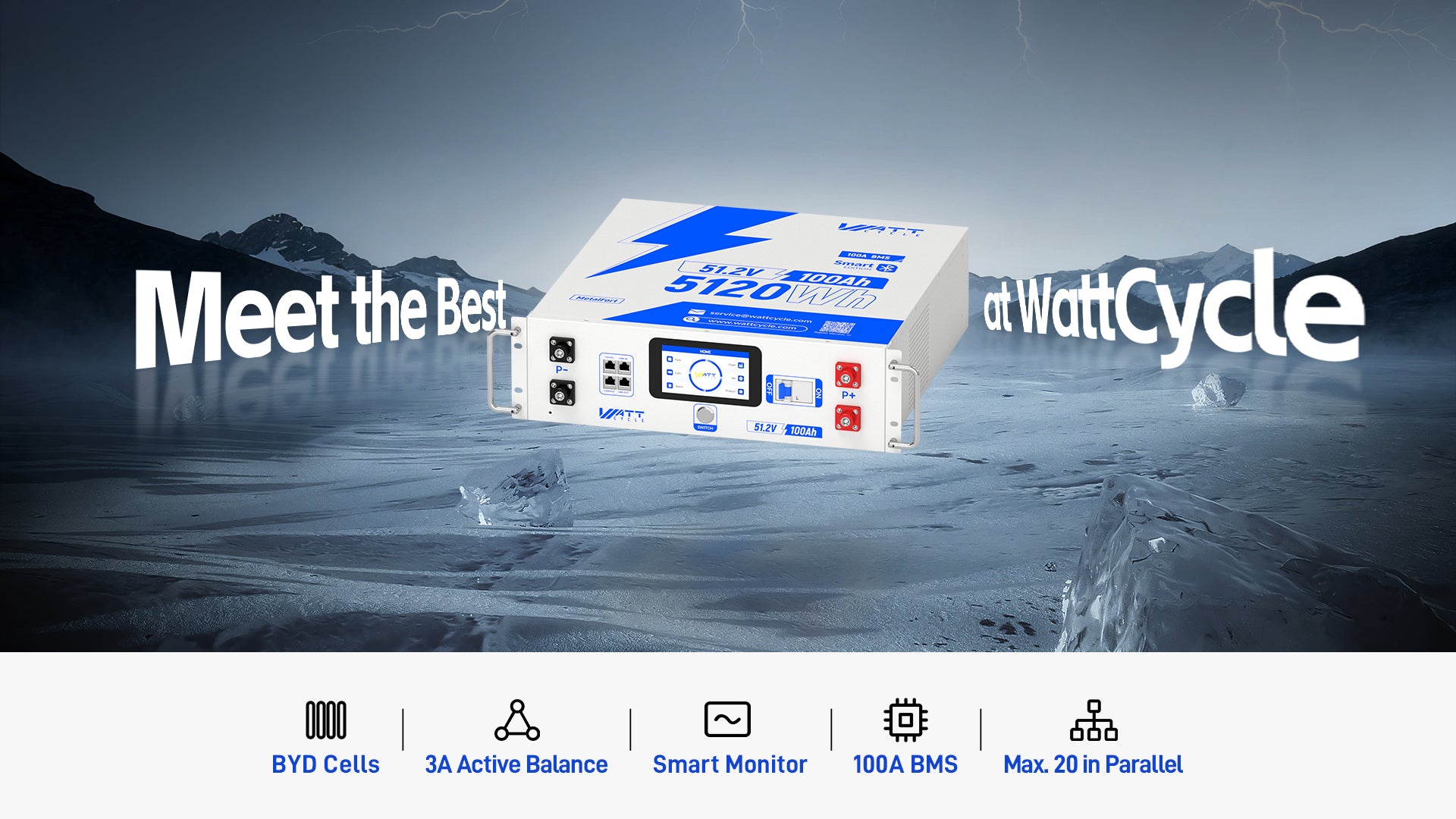

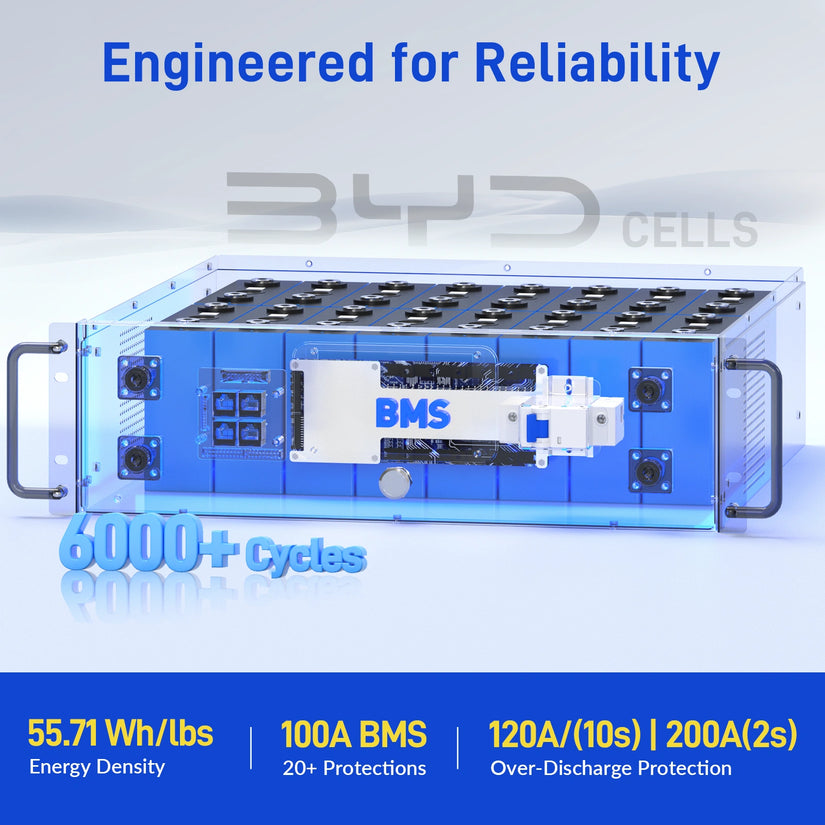

Uses BYD battery cells, offering unparalleled safety performance, while enhanced physical structure significantly improves battery life and durability.

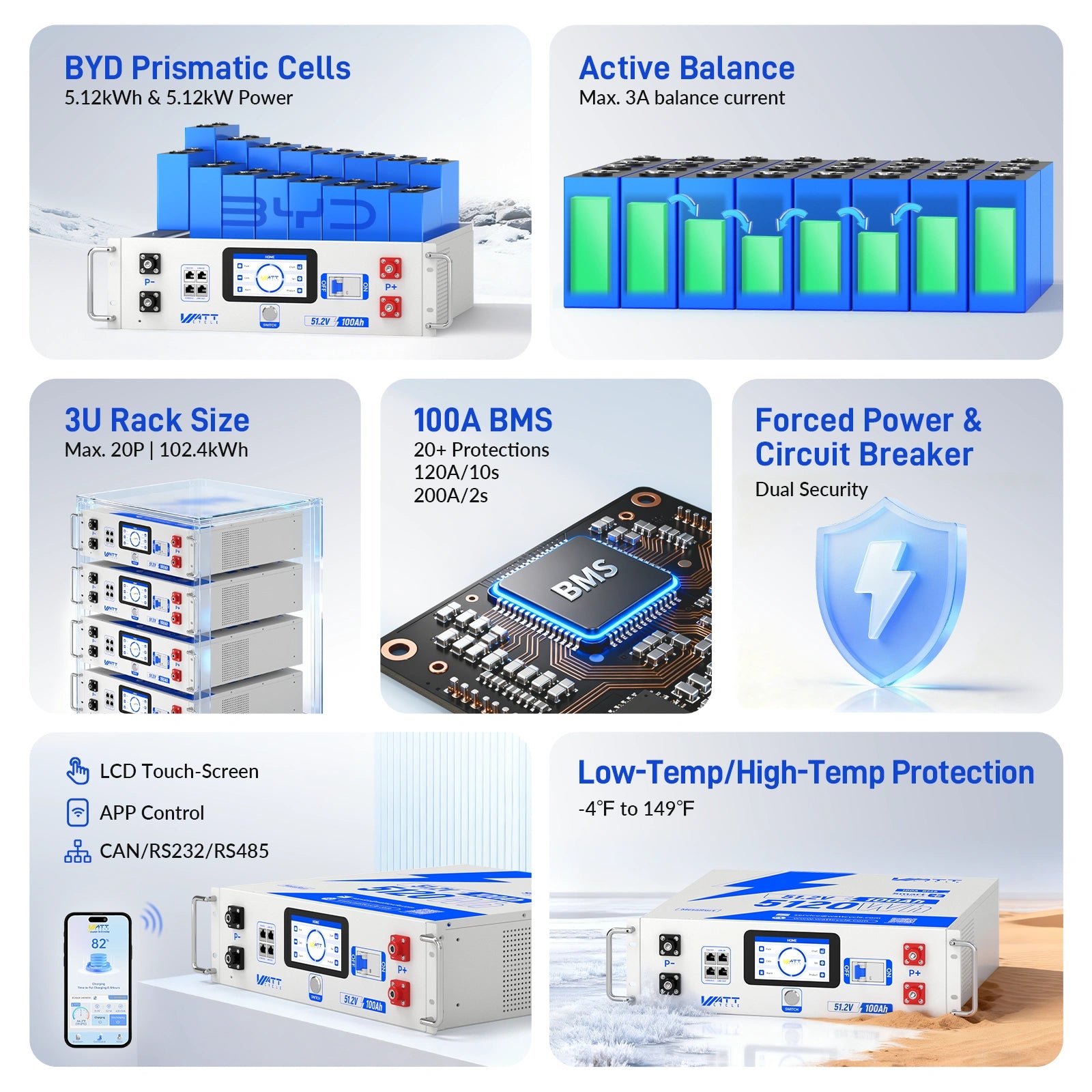

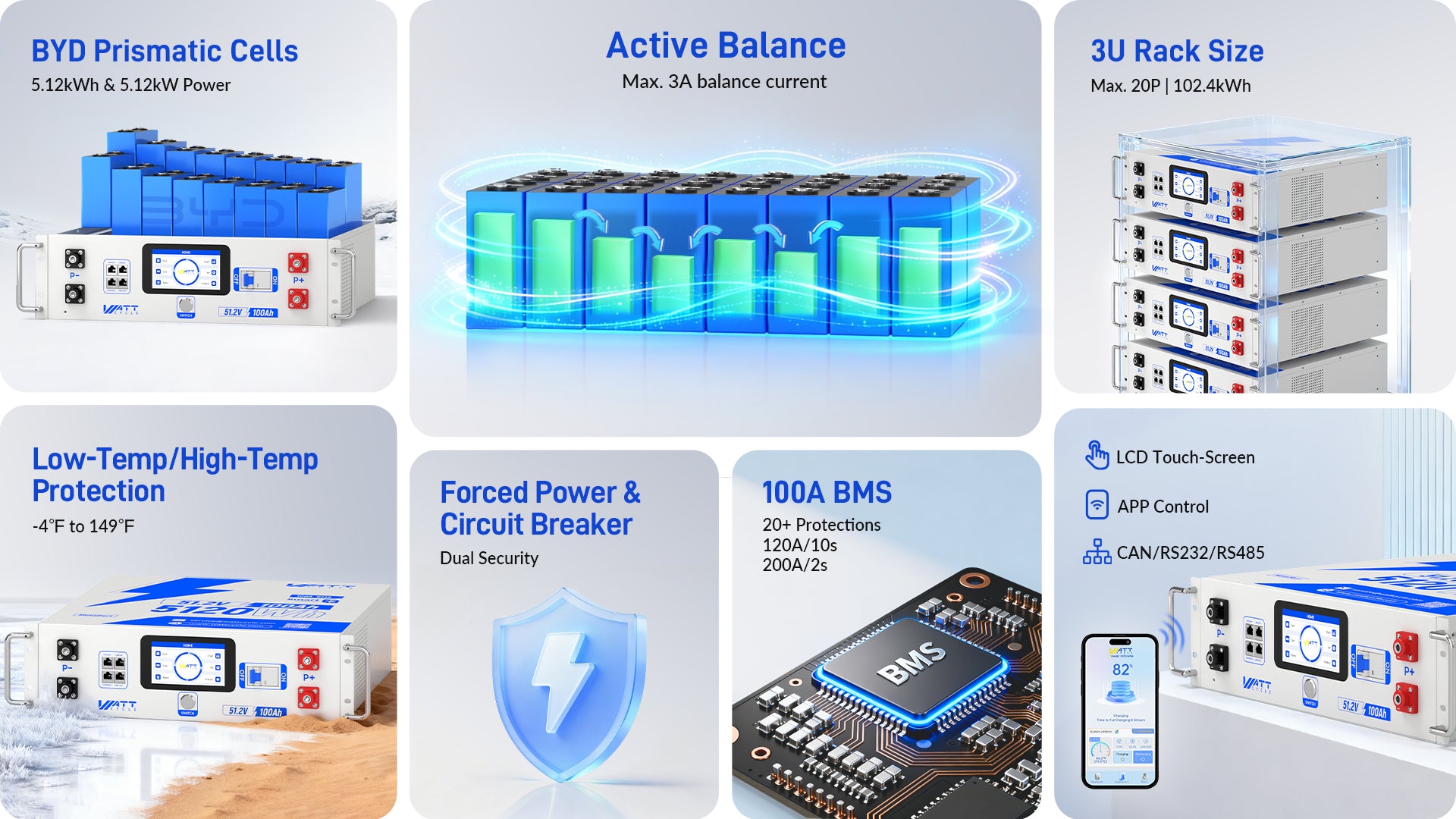

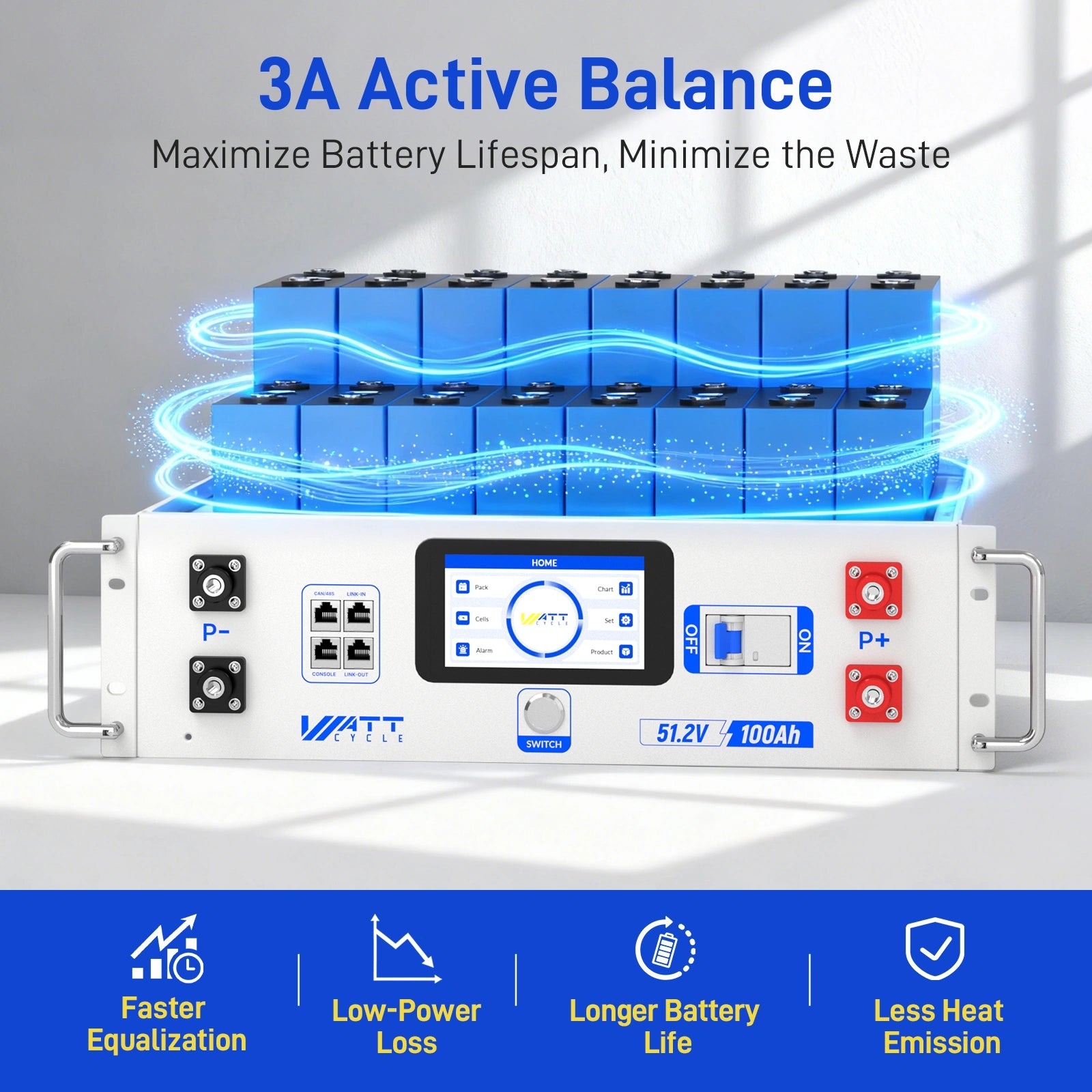

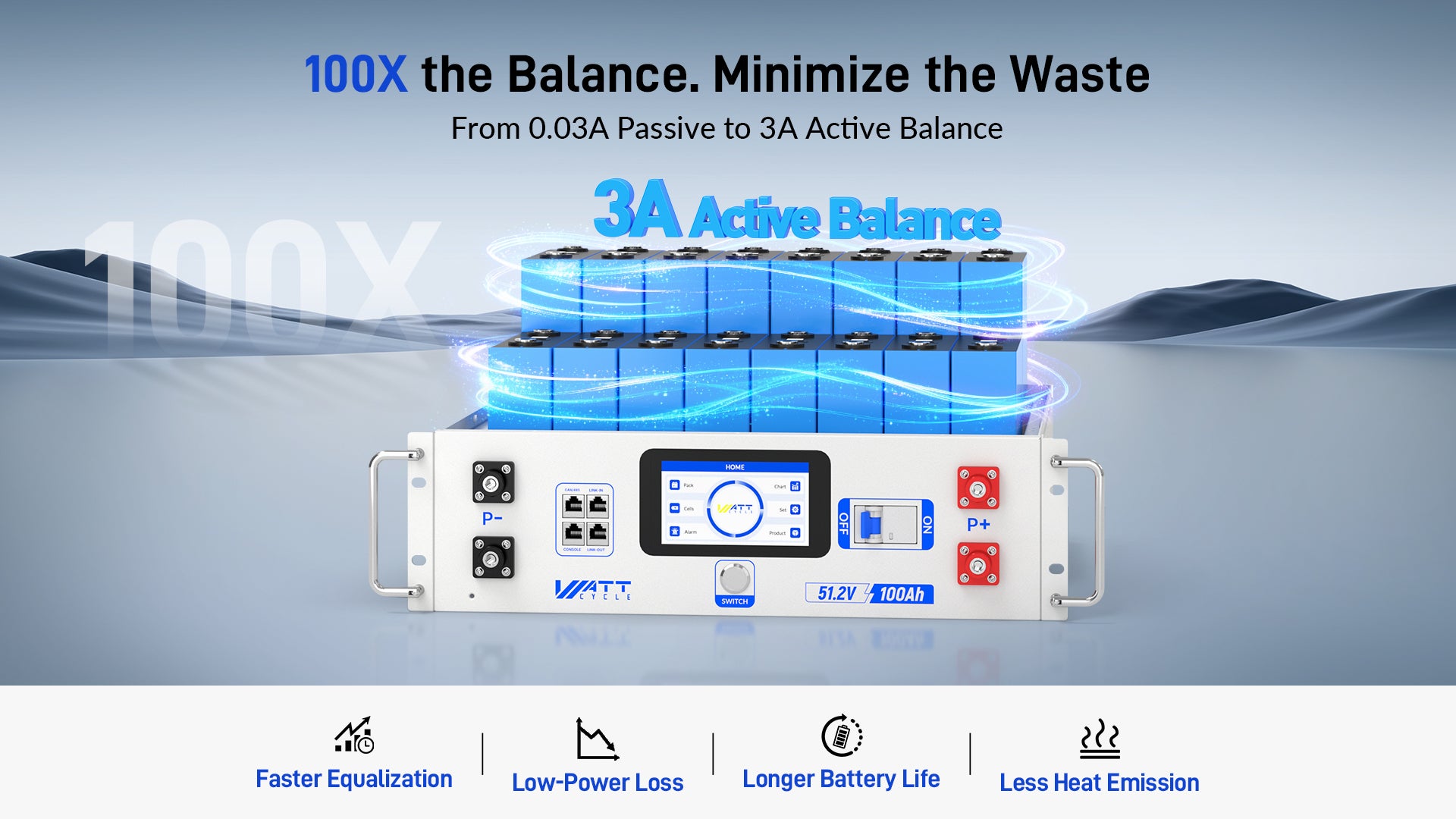

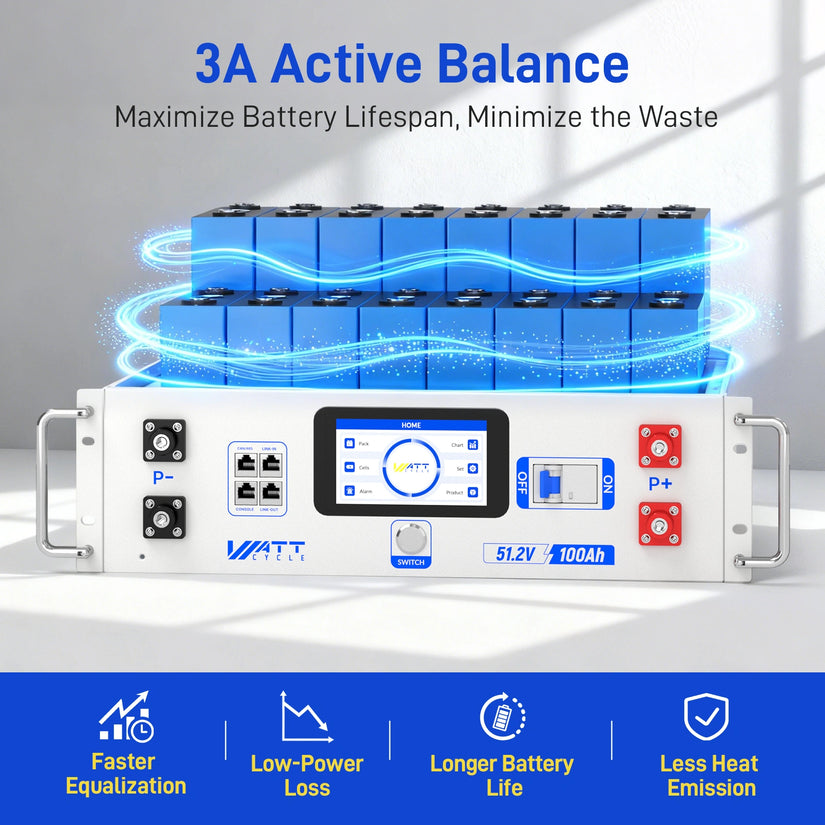

High-current active balancing function
WattCycle's active balancing function effectively protects battery cells, improves safety, extends battery pack life, and increases capacity utilization. Ultra-high 3A balancing current: Faster balancing speed, better balancing effect, and better adaptation to large-capacity battery cells.

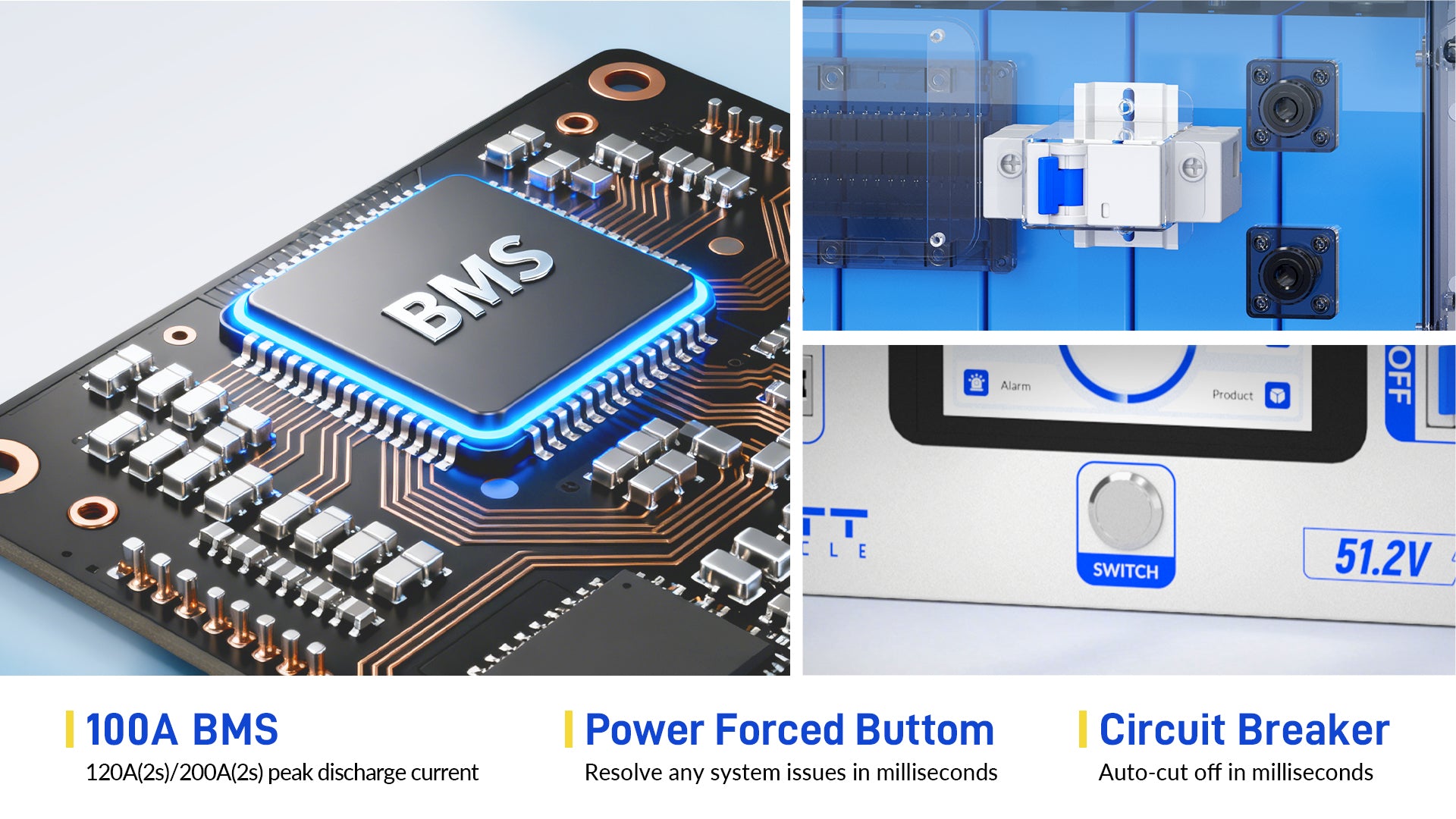

Second-troubleshooting capability, flexibly handling all situations
Power button and short-circuit valve – one switch handles all emergencies, giving your battery a dual boost of emergency and flexibility! Powerful BMS chip automatically cuts off faults in seconds, promptly responding to short circuits, overloads, and other situations, suitable for safe use in high-power devices.

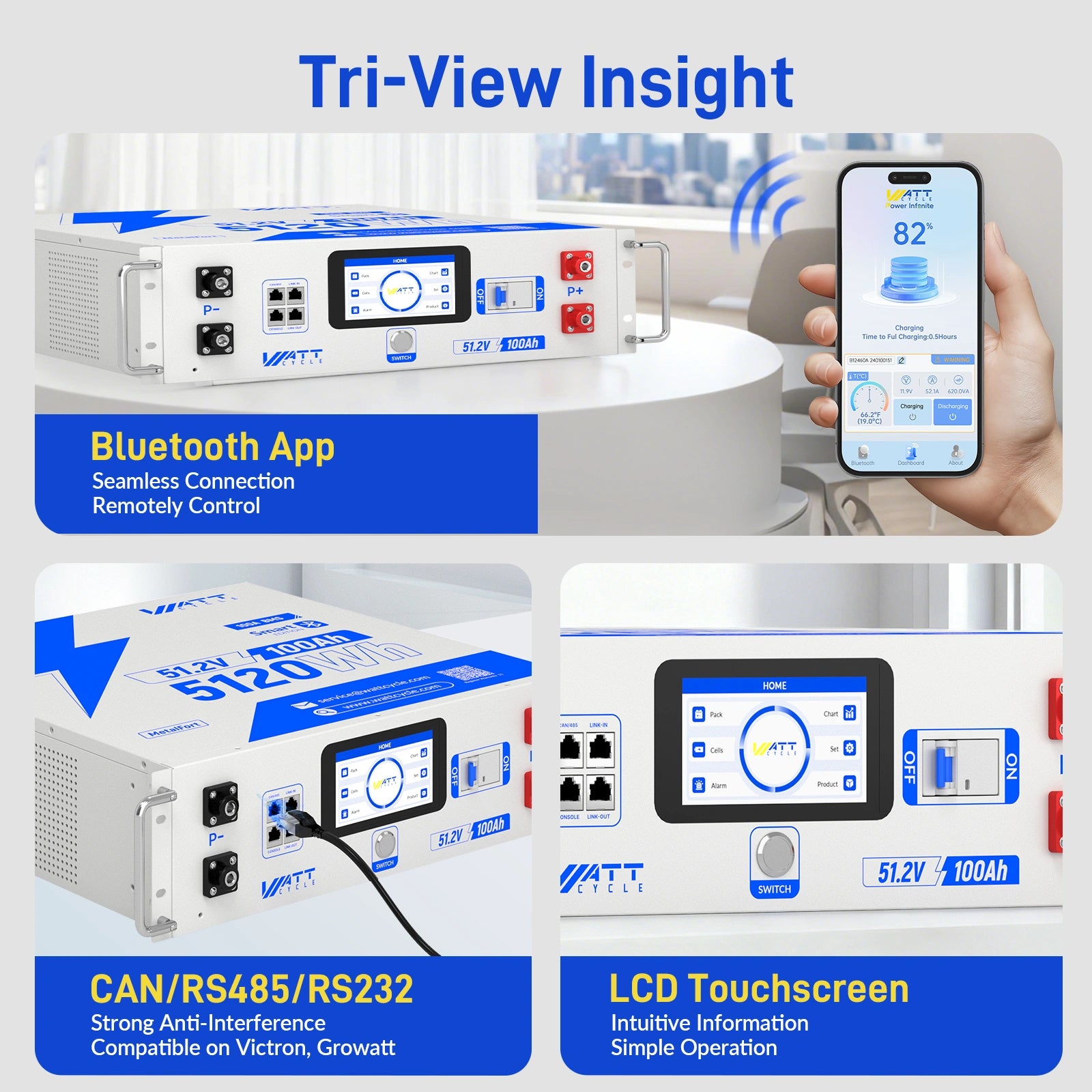

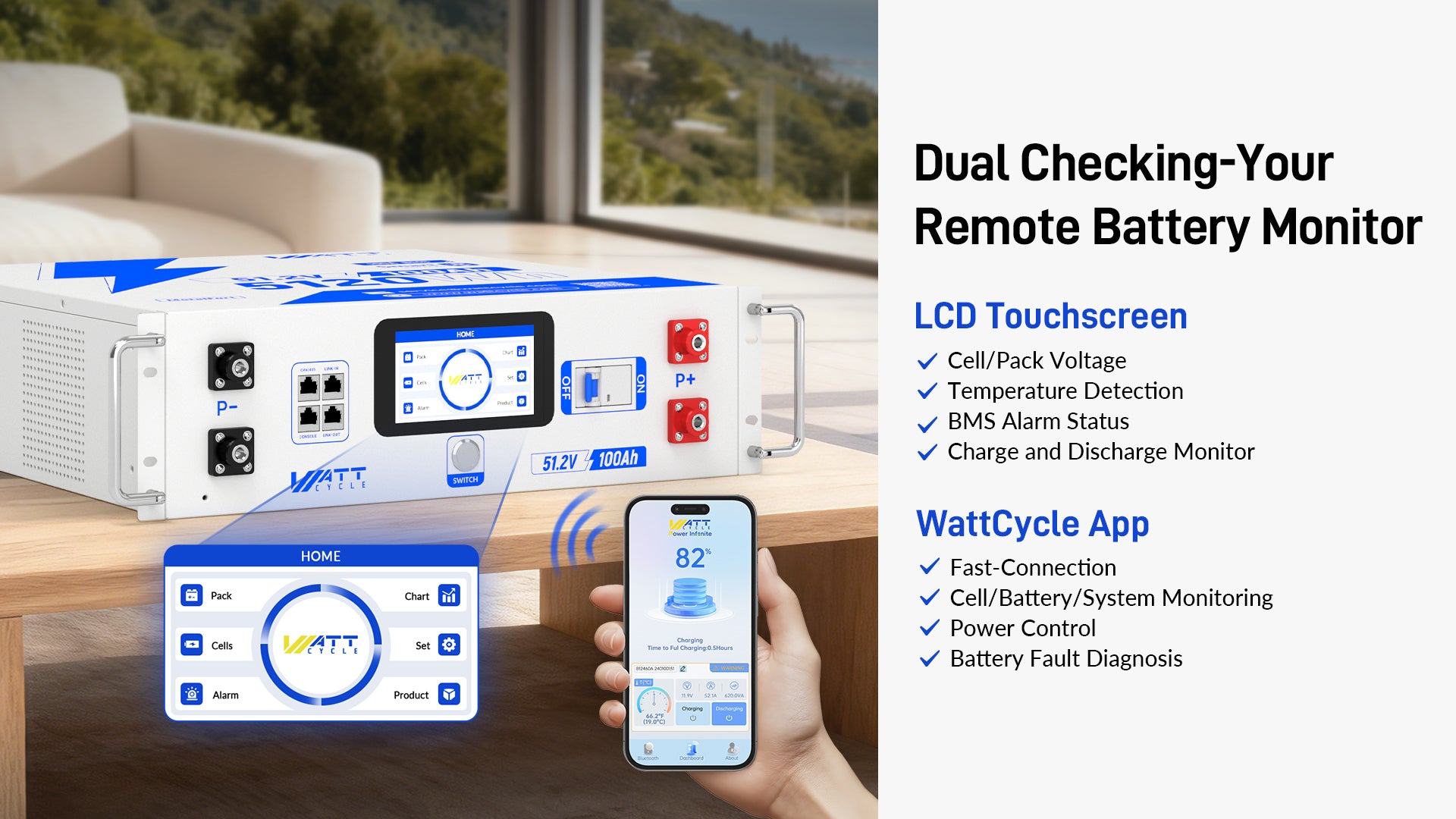

Multiple Intelligent Monitoring Features

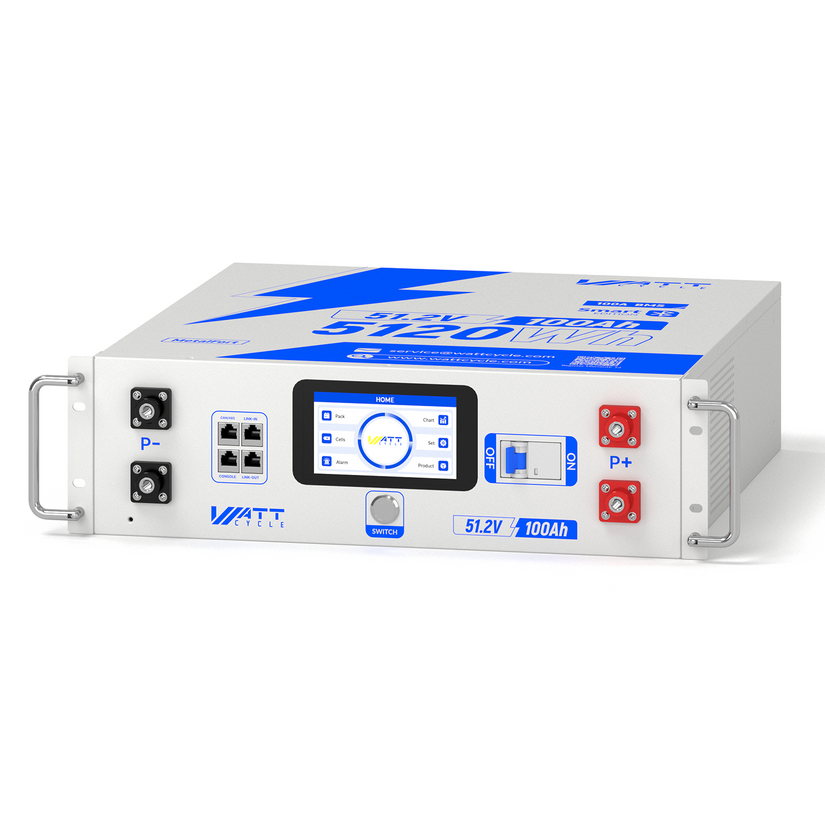

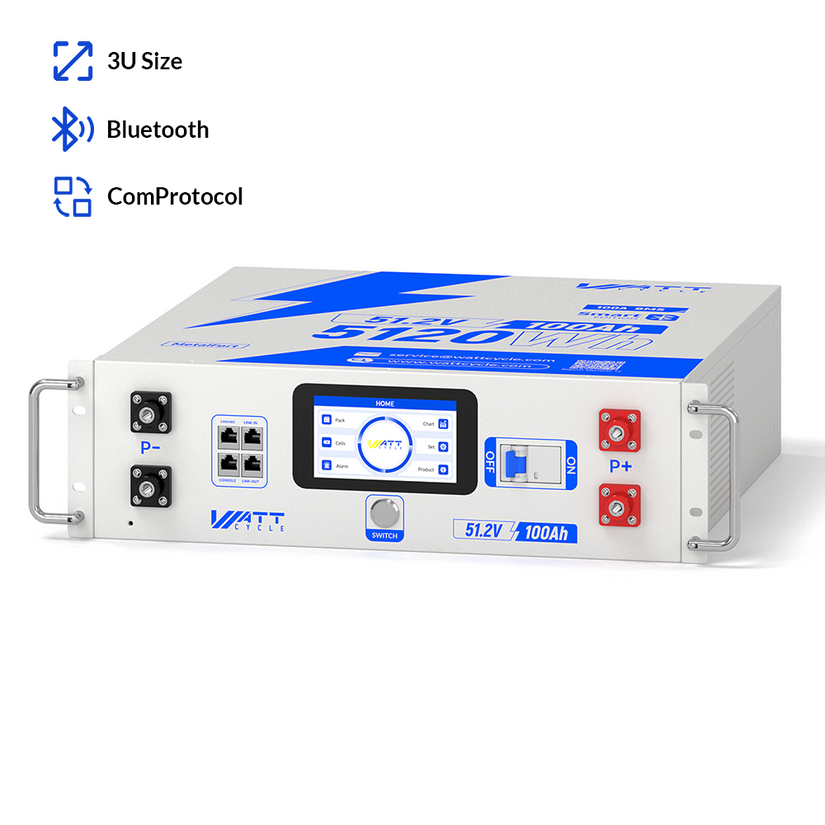

WattCycle 48V 100Ah 3U rack battery supports remote control via a mobile app, and the battery itself features an LCD touchscreen, helping you monitor your battery status in real time.
Customizable system power, compatible with all inverters

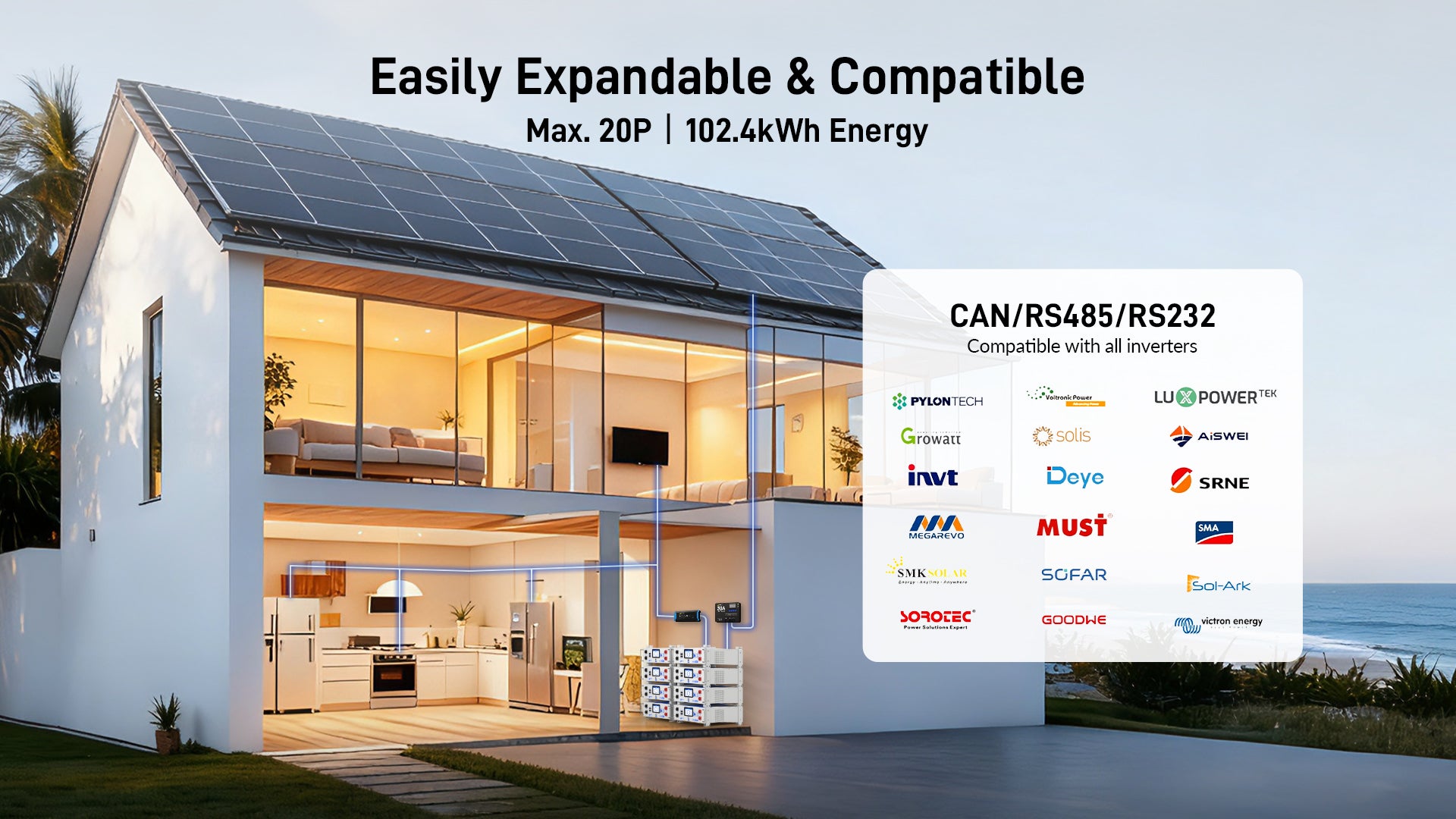

WattCycle 48V 100Ah 3U rack lithium battery can be easily expanded to 20 batteries (automatic addressing). Seamless insertion into the 3U rack makes it simple and convenient. Its CAN/RS485/RS232 is compatible with various inverter brands on the market, easily adapting to multiple scenarios, with strong anti-electromagnetic interference capabilities and millisecond-level command interaction.

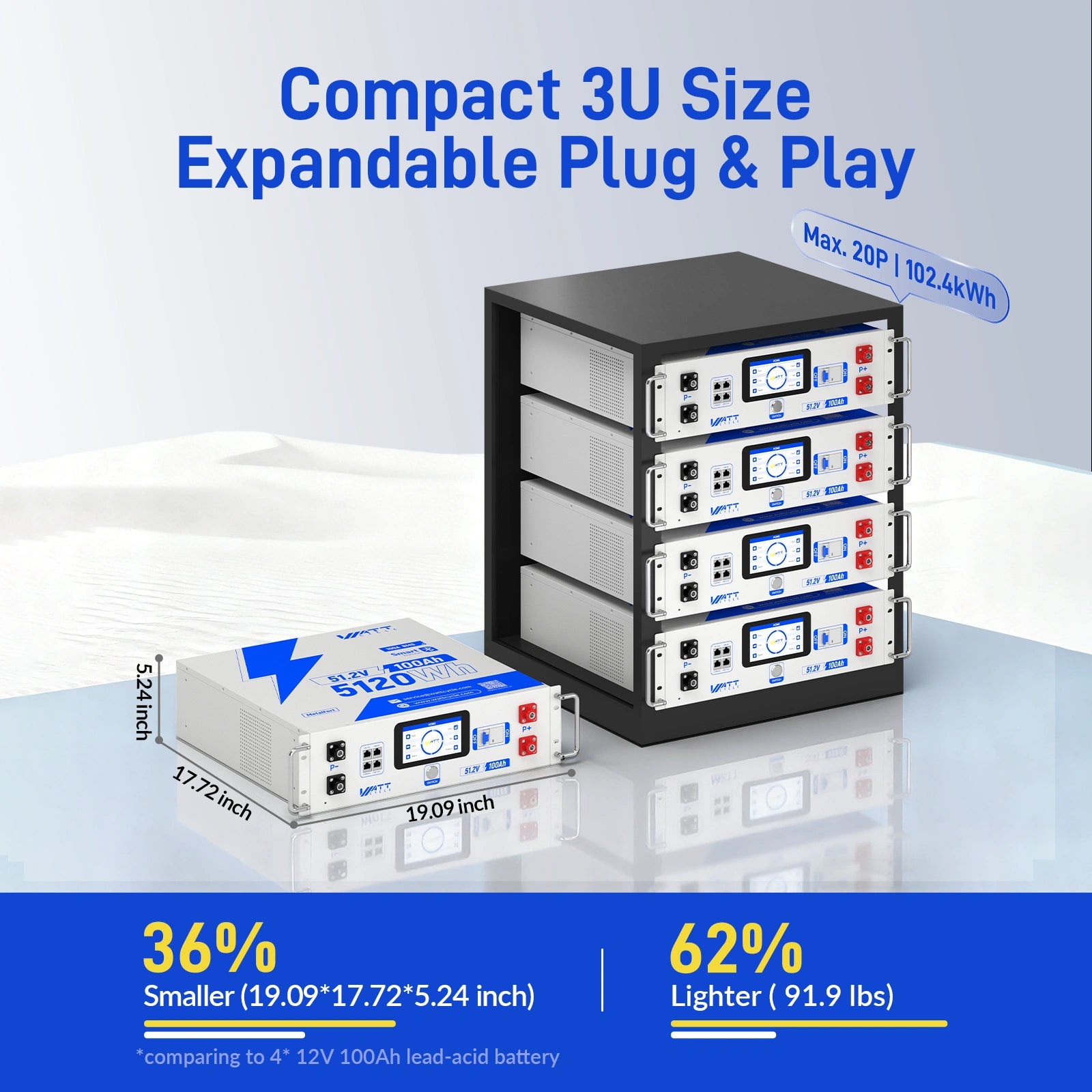

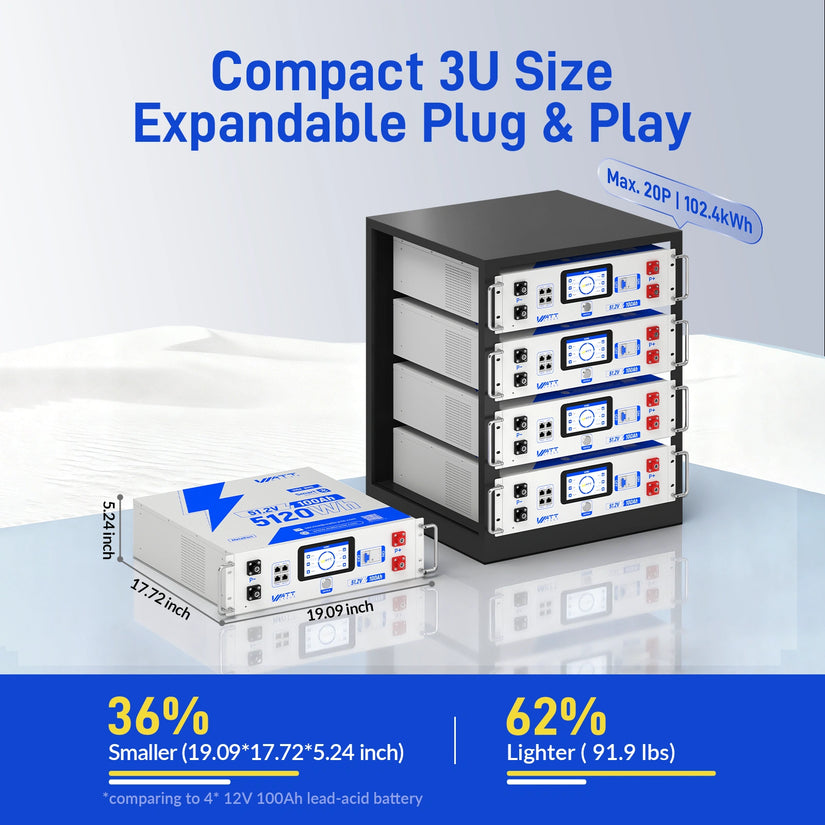

Modular stacking for seamless capacity expansion

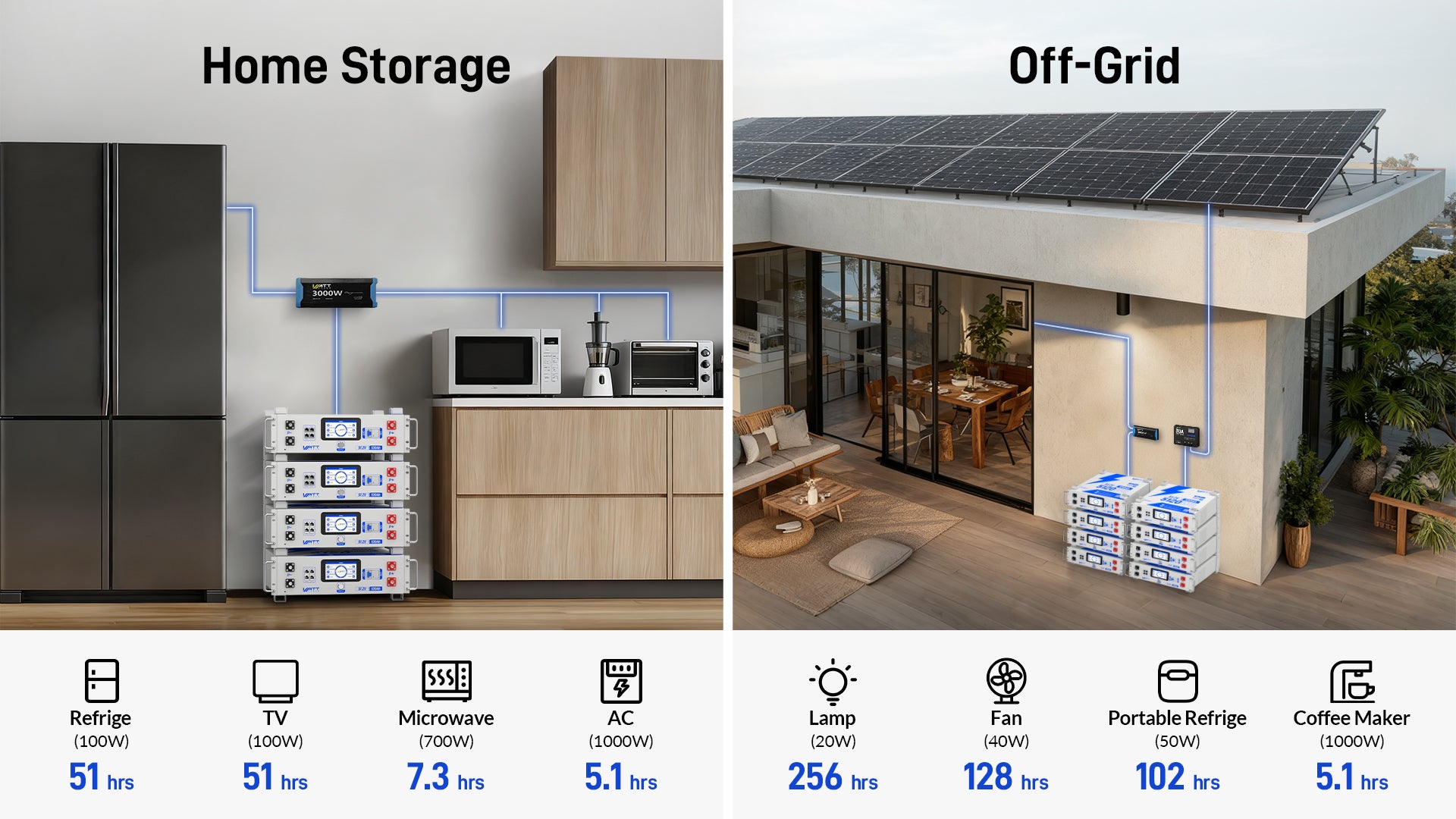

The WattCycle 3U Rack battery is suitable for small spaces with simple plug-and-play functionality. Expansion is as easy as building with blocks, ensuring every inch of space is utilized! Whether for emergency power needs or everyday electricity usage, it provides a continuous and stable power supply, eliminating energy worries.

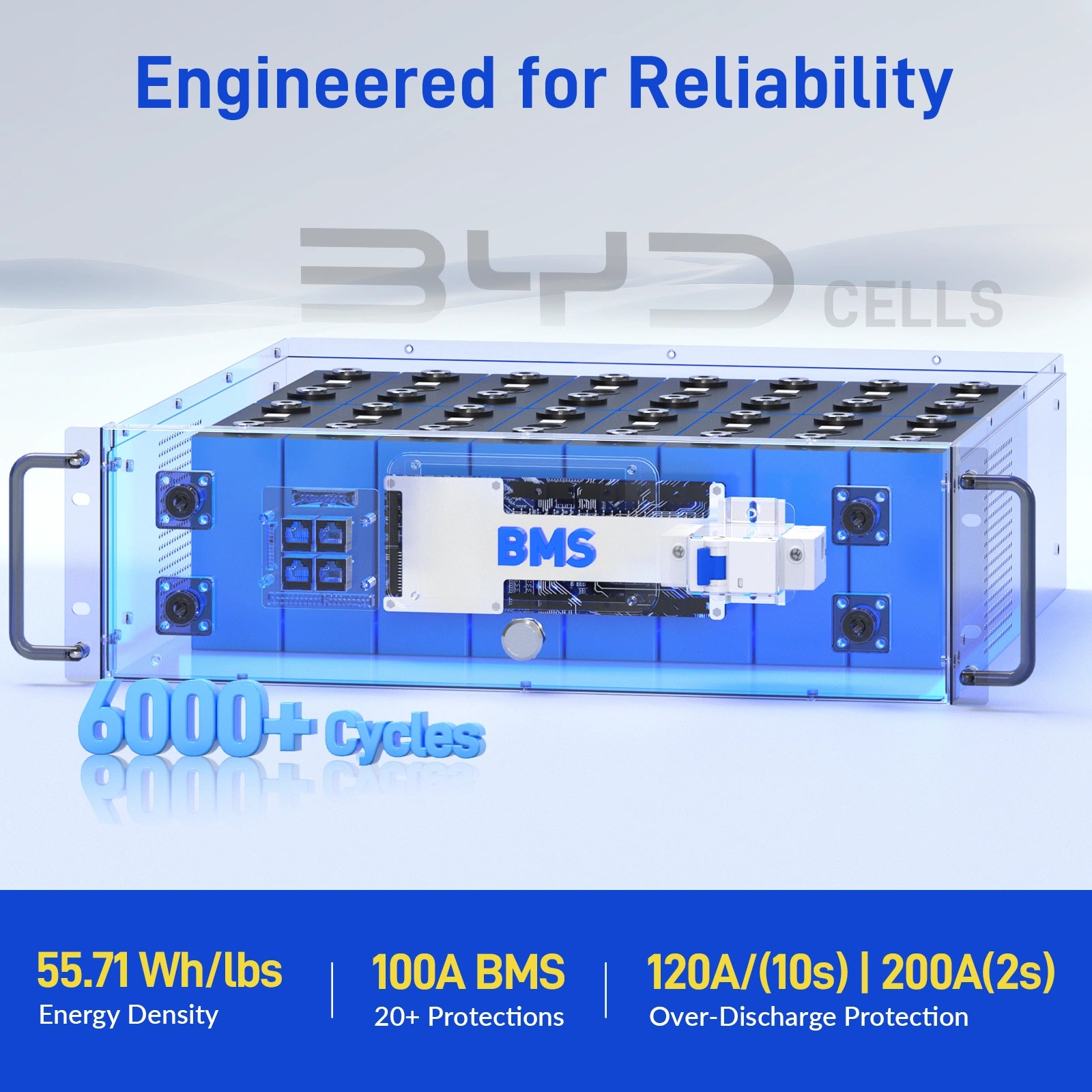

Superior craftsmanship is reflected in the details

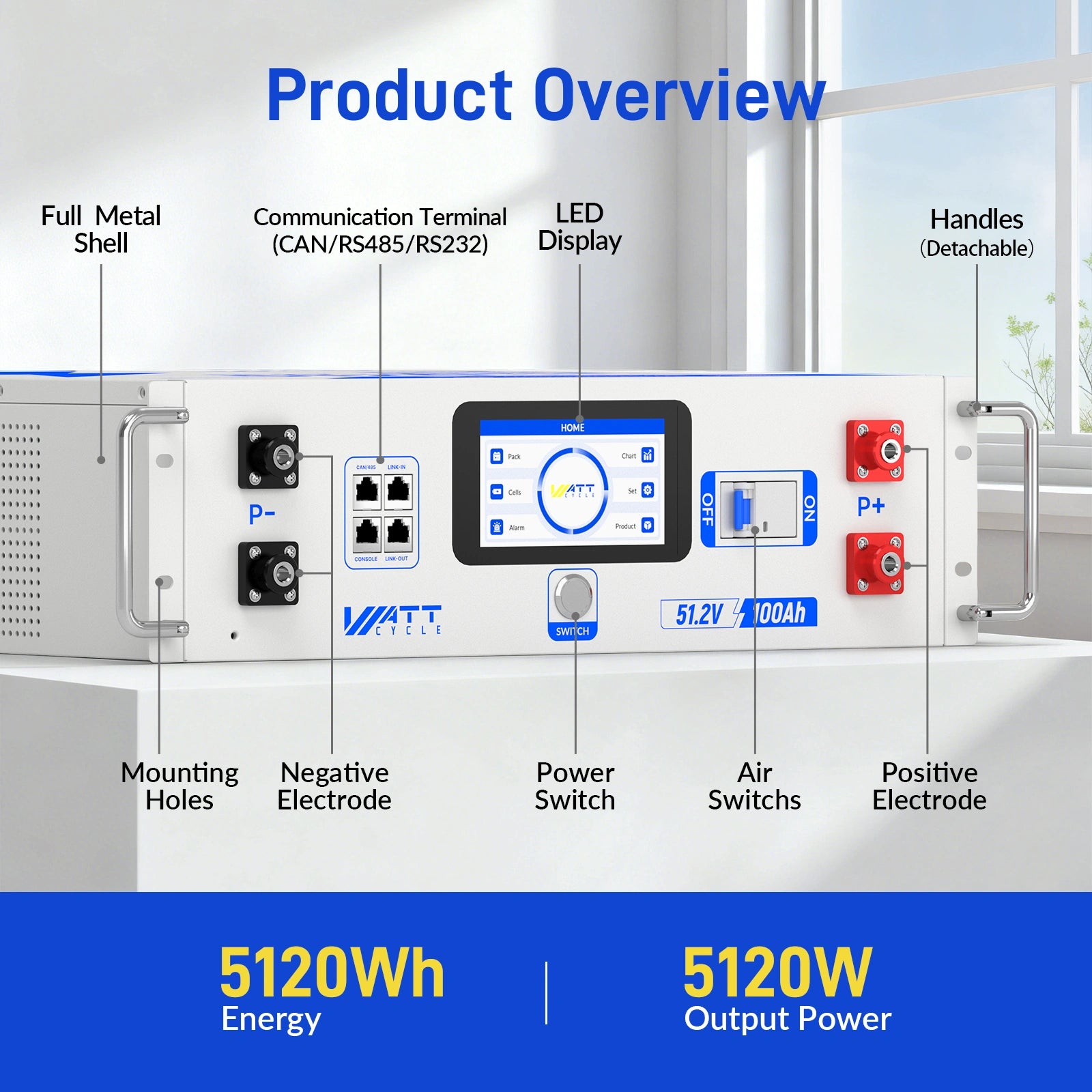

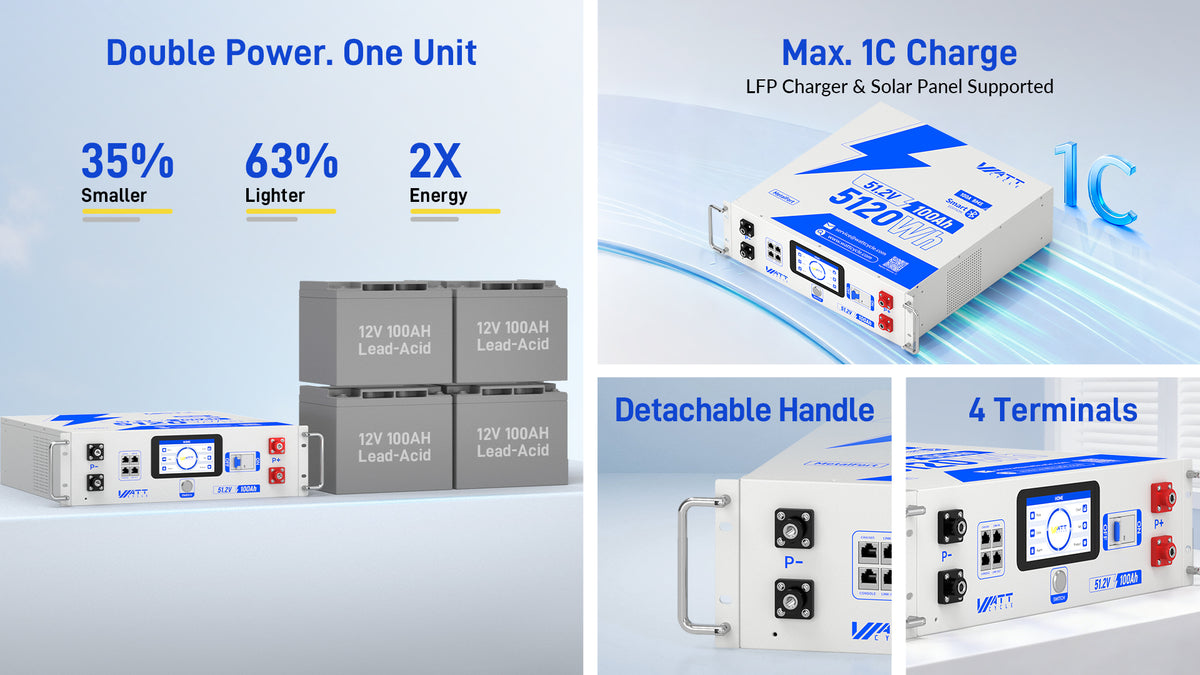

WattCycle LiFePO4 batteries use the highest quality core components, featuring a neat internal structure and a metal bracket for enhanced internal stability. Externally, they offer four interface terminals and a detachable handle for easy use, transport, and installation.
